Cigarette Lighter Receptacle Replacement

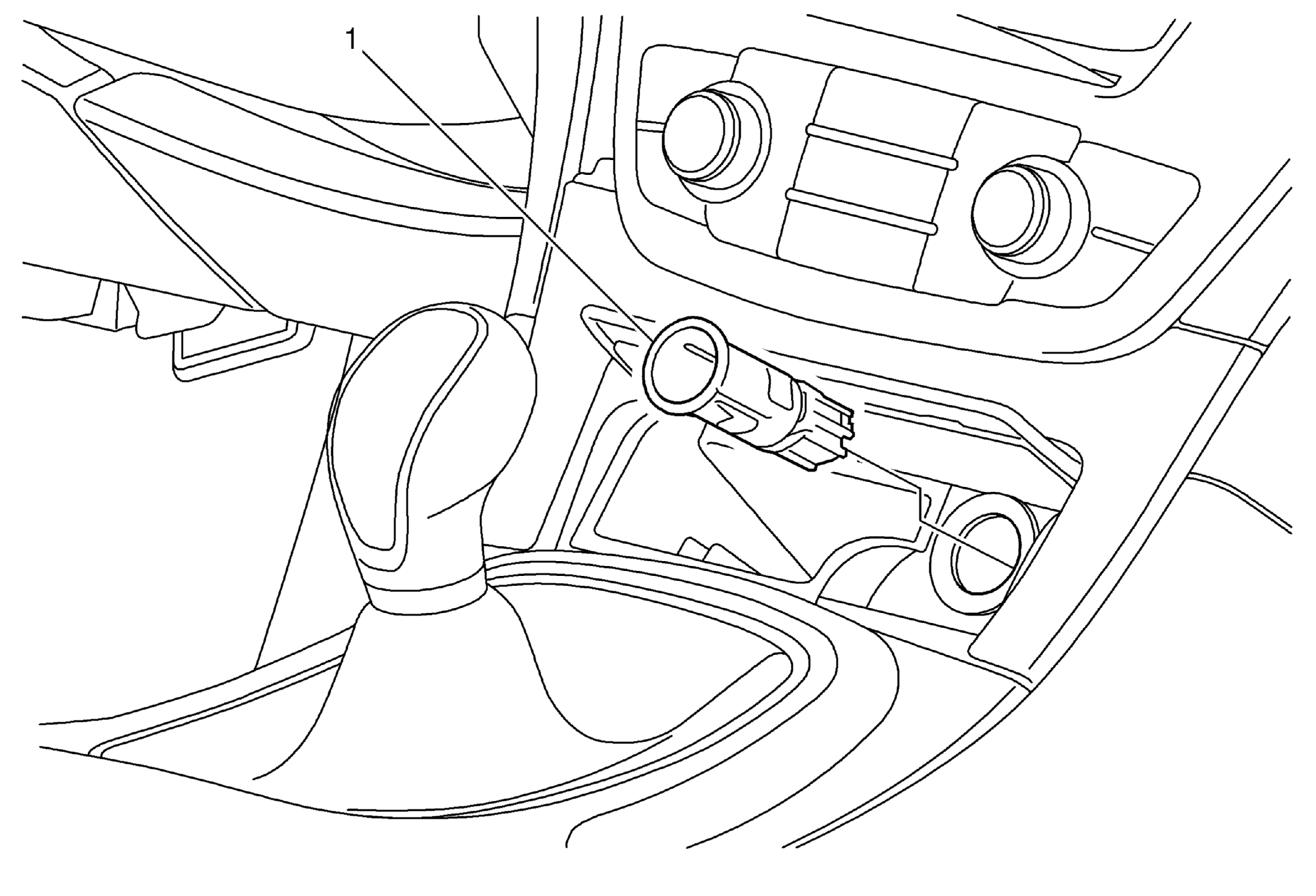

Fig 1: Cigarette Lighter Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Cigarette Lighter Receptacle Procedure  Disconnect electrical connectors. Special Tools  BO-48871  Cigar Lighter Socket Remover (Side B) For equivalent regional tools, refer to Special Tools .
