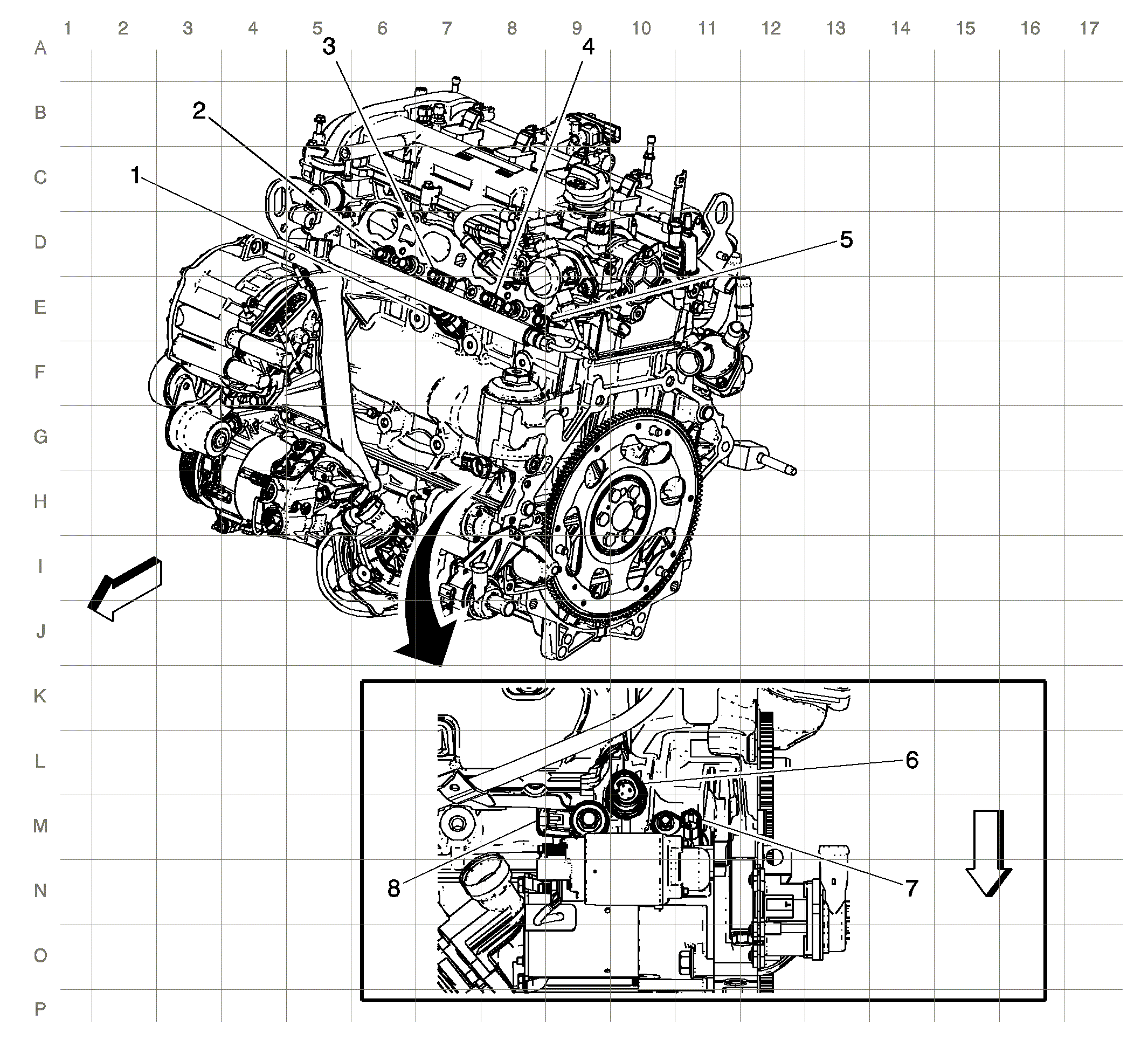

Left Front of Engine Components (LUK 2 of 2)
Left Front of Engine Components (LUK 2 of 2)
| Items |
| 1: B47B Fuel Rail Pressure Sensor |
| 2: Q17A Fuel Injector 1 |
| 3: Q17B Fuel Injector 2 |
| 4: Q17C Fuel Injector 3 |
| 5: Q17D Fuel Injector 4 |
| 6: B37 Engine Oil Pressure Switch |
| 7: B26 Crankshaft Position Sensor |
| 8: B68 Knock Sensor |
Courtesy of GENERAL MOTORS COMPANY
