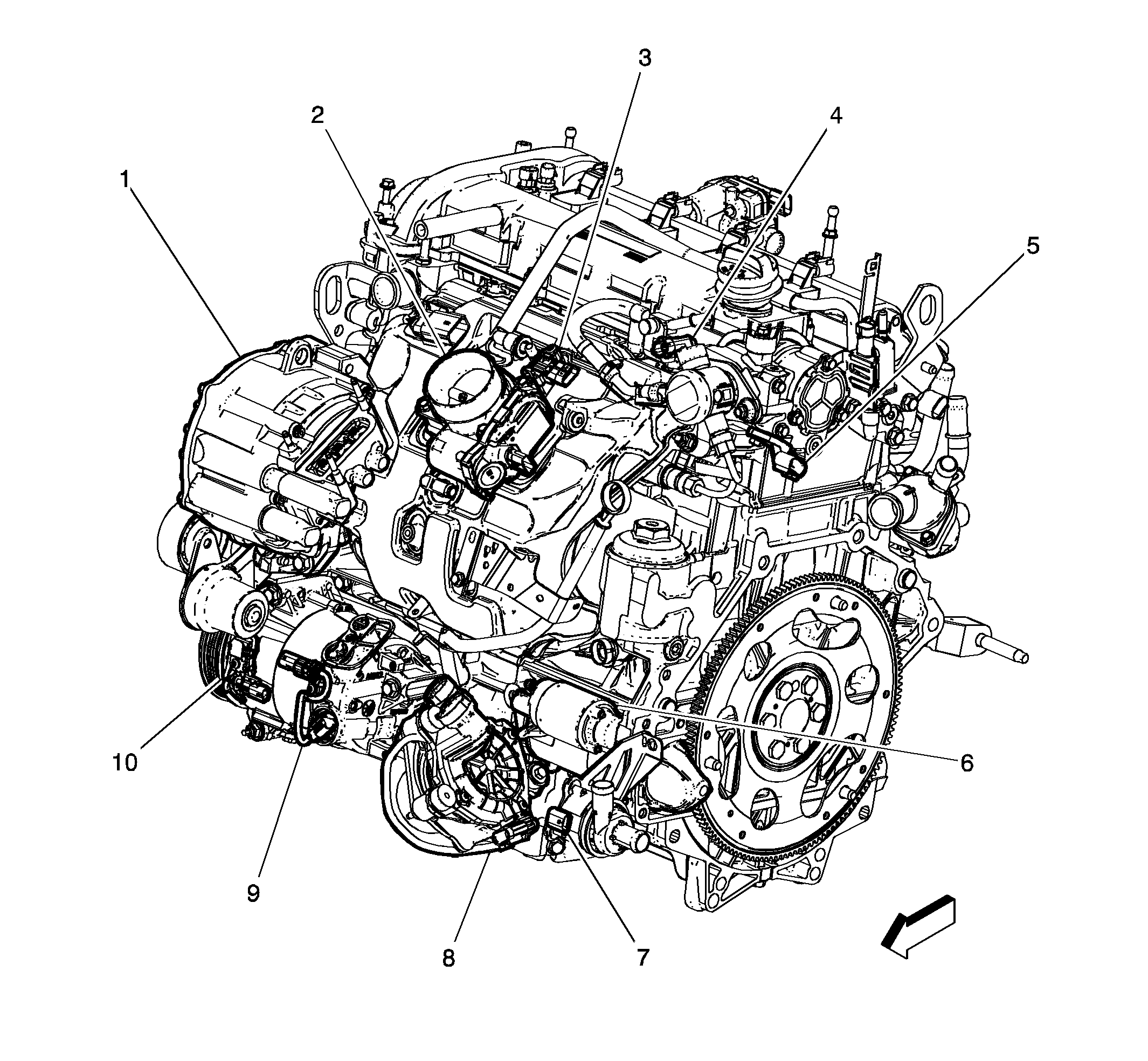

Left Front of Engine Components (LUK 1 of 2)
Left Front of Engine Components (LUK 1 of 2)
| Items |
|---|
| 1: A15 Starter/Generator (HP6) A15 Starter/Generator X1 |
| 2: Q38 Throttle Body |
| 3: B74 Manifold Absolute Pressure Sensor |
| 4: G18 High Pressure Fuel Pump |
| 5: B23F Camshaft Position Sensor - Intake |
| 6: M64 Starter Motor |
| 7:G43 Starter/Generator Coolant Pump (HP6) |
| 8: G21 Secondary Air Injection Pump (NU6) |
| 9: Q46 A/C Compressor Solenoid Valve |
| 10: Q2 A/C Compressor Clutch |
