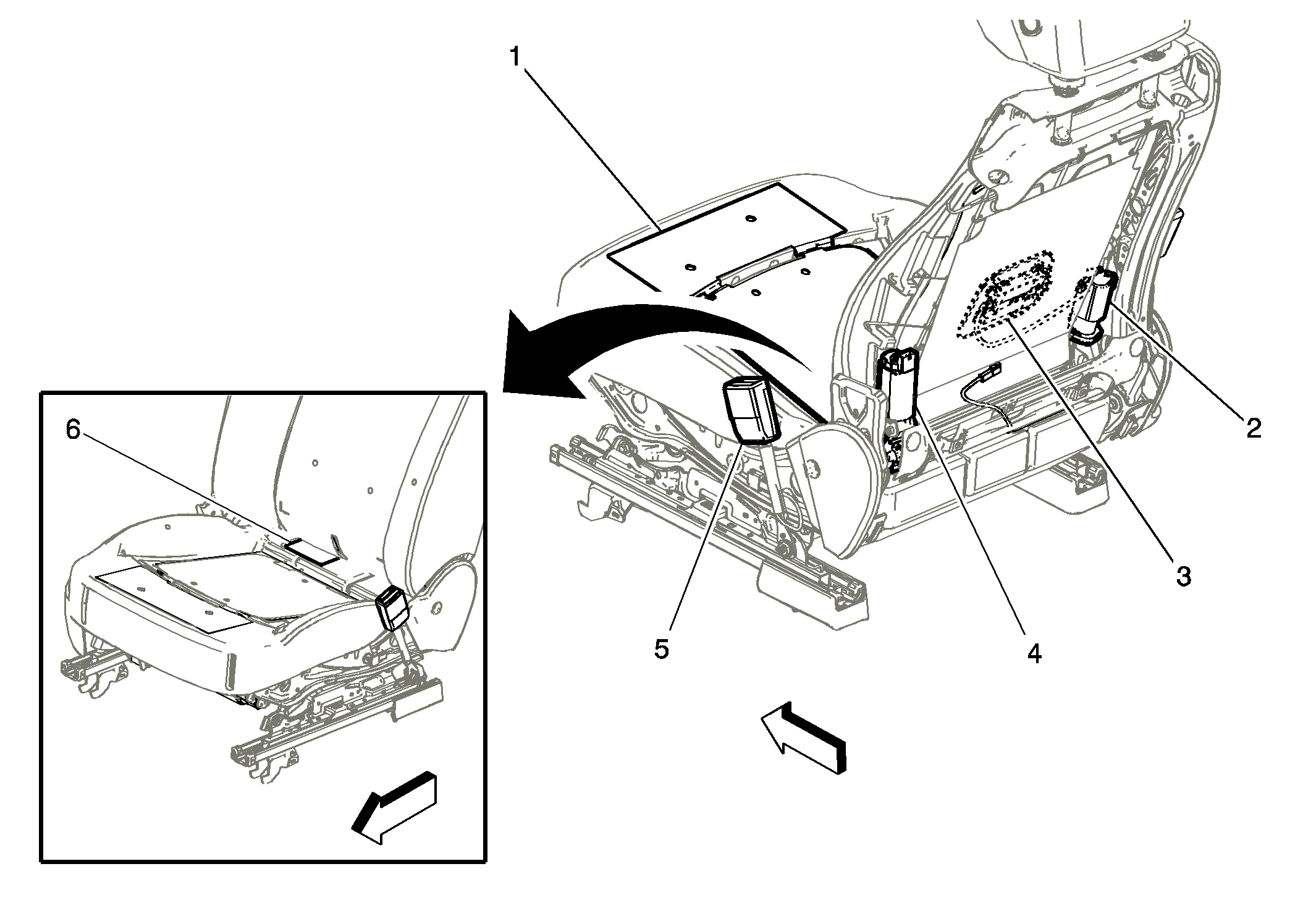

Rear of Passenger Seat Components
Rear of Passenger Seat Components
| Items |
|---|
| 1: E14D Seat Heating Element - Passenger Cushion (KA1) |
| 2: A14P Seat Lumbar Support Pump - Passenger (APH) |
| 3: Q51P Seat Lumbar Support Valve Assembly - Passenger (APH) |
| 4: M56P Seat Recline Motor - Passenger (AG2) |
| 5: B88P Seat Belt Switch - Passenger |
| 6:K85 Passenger Presence Module |
