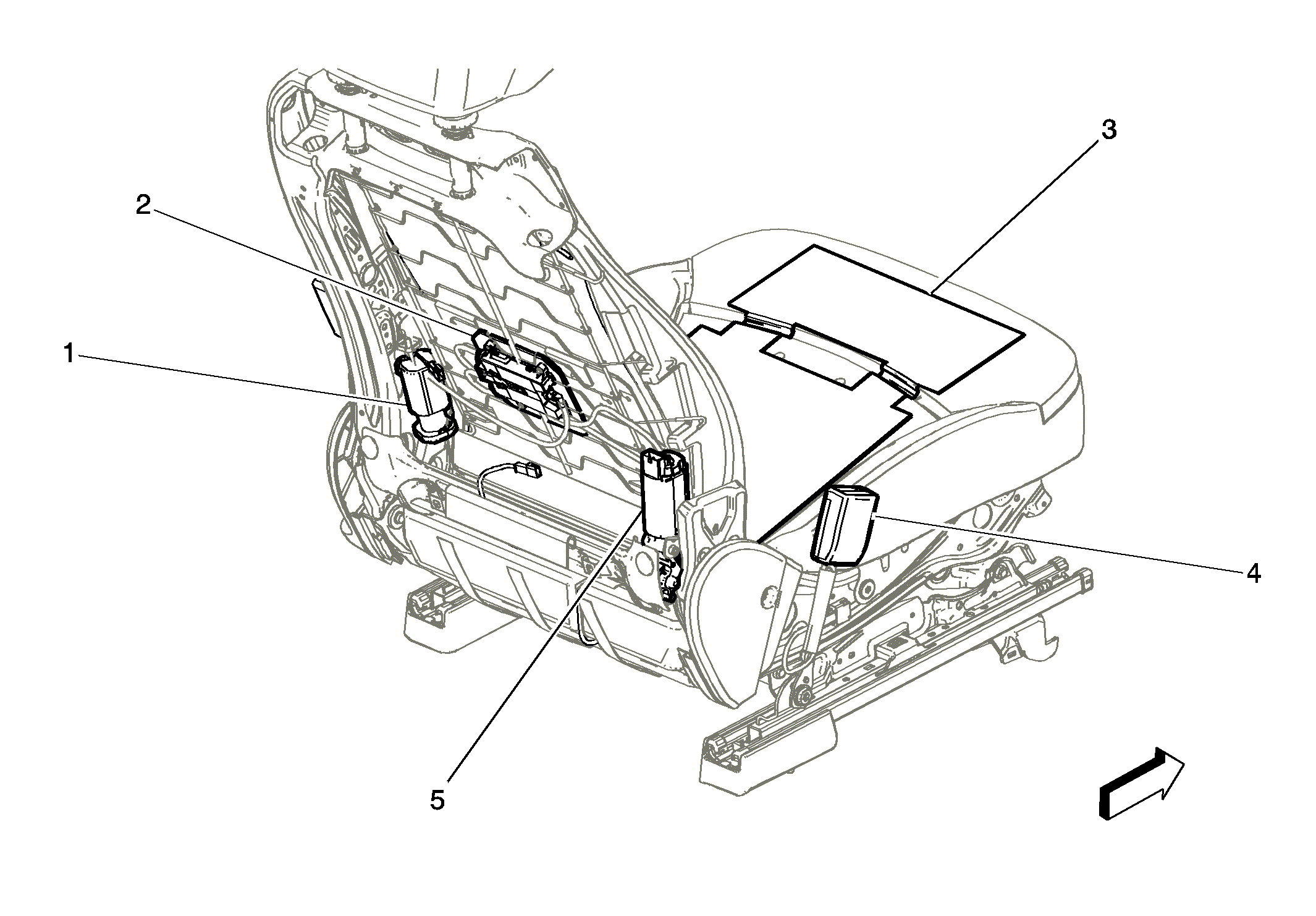

Rear of Driver Seat Components
Rear of Driver Seat Components
| Items |
| 1: A14D Seat Lumbar Support Pump - Driver (APG) |
| 2: Q51D Seat Lumbar Support Valve Assembly - Driver |
| 3: E14B Seat Heating Element - Driver Cushion (KA1) |
| 4: B88D Seat Belt Switch - Driver |
| 5: M56D Seat Recline Motor - Driver |
Courtesy of GENERAL MOTORS COMPANY
