Left Side of Passenger Compartment Components

Left Side of Passenger Compartment Components

Items
1: B63LR Side Impact Sensor - Left Rear (AW7)
2: F112D Seat Belt Retractor Pretensioner - Driver
3: B63LF Side Impact Sensor - Left Front

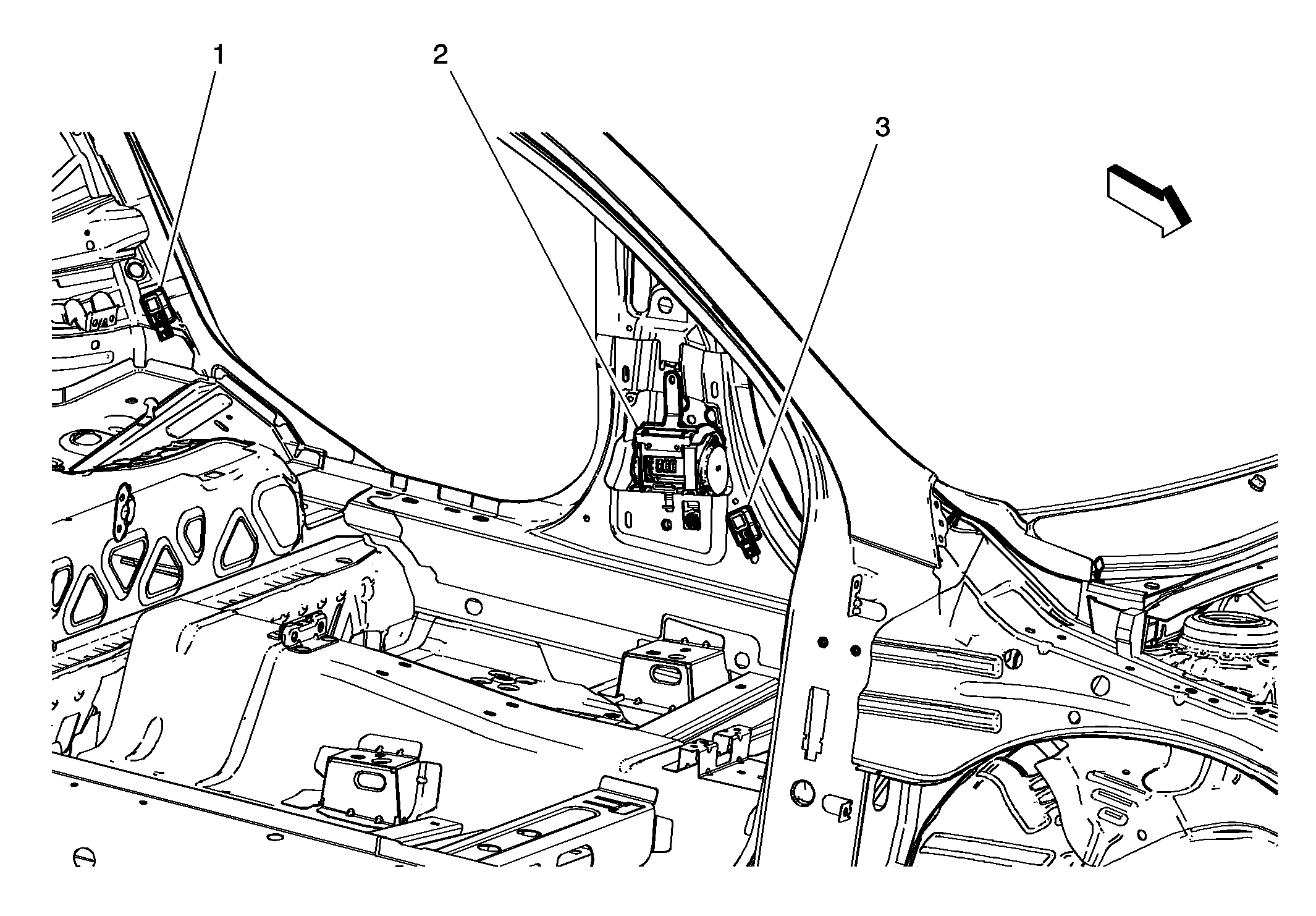

Fig 1: Left Side of Passenger Compartment Components
GM2467462Courtesy of GENERAL MOTORS COMPANY
