Inside of Roof and Windshield Components

Inside of Roof and Windshield Components

Items
1: F105L Roof Rail Air Bag - Left
2: M69 Sunroof Motor (CF5)
3: S51 Telematics Button Assembly
4: A10 Inside Rearview Mirror
5: B160 Windshield Temperature and Inside Moisture Sensor
6: F105R Roof Rail Air Bag - Right

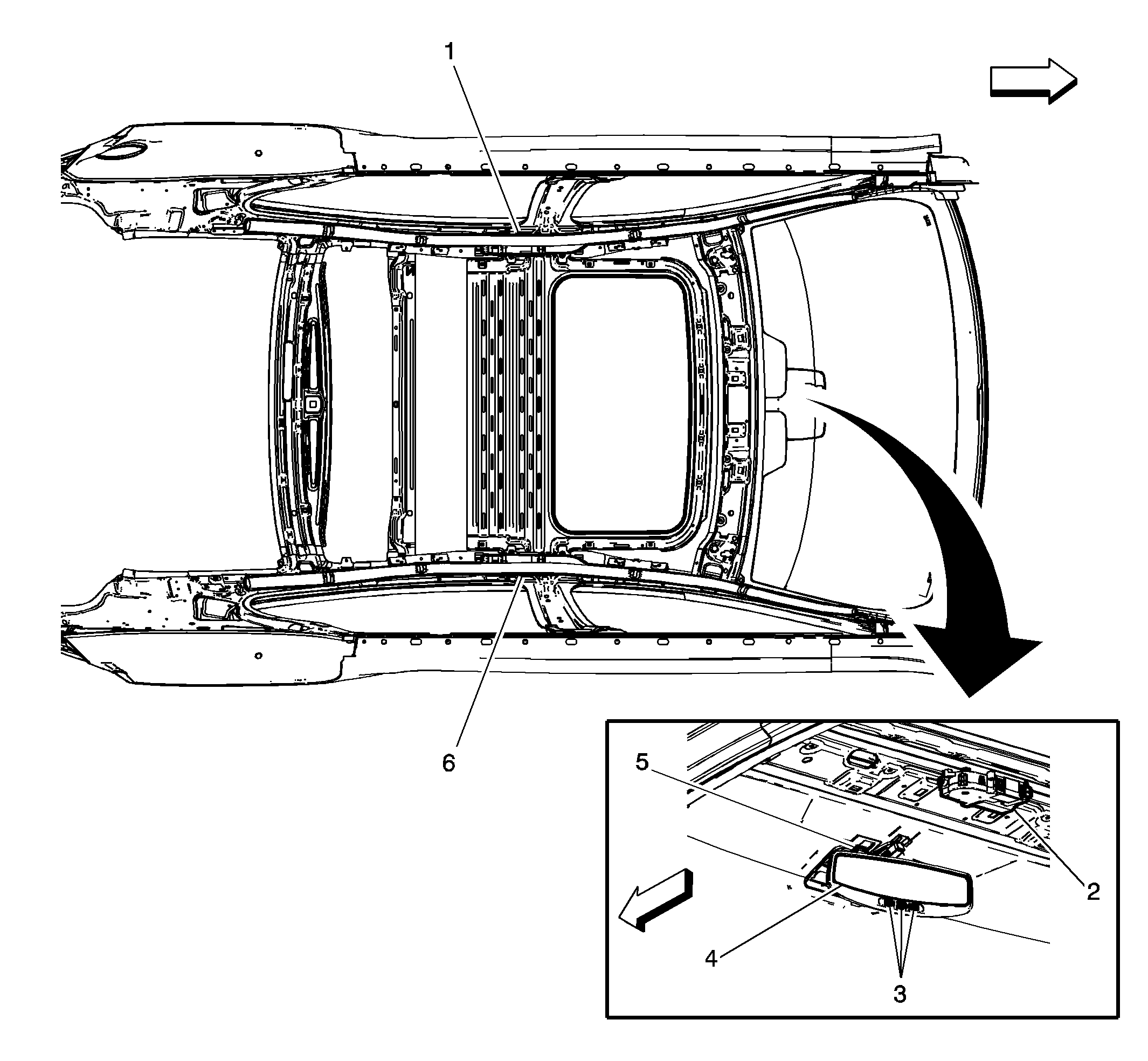

Fig 1: Inside of Roof and Windshield Components
GM2467448Courtesy of GENERAL MOTORS COMPANY
