Headliner Components

Headliner Components

Items
1: E37R Dome/Reading Lamps - Rear
2: A3R Sunshade - Right
3: S88 Sunroof Tilt Switch (CF5)
4: E37D Dome/Reading Lamps - Overhead Console
5: S72 Sunroof Switch (CF5)
6: B24 Cellular Phone Microphone (UE1)
7: A3L Sunshade - Left

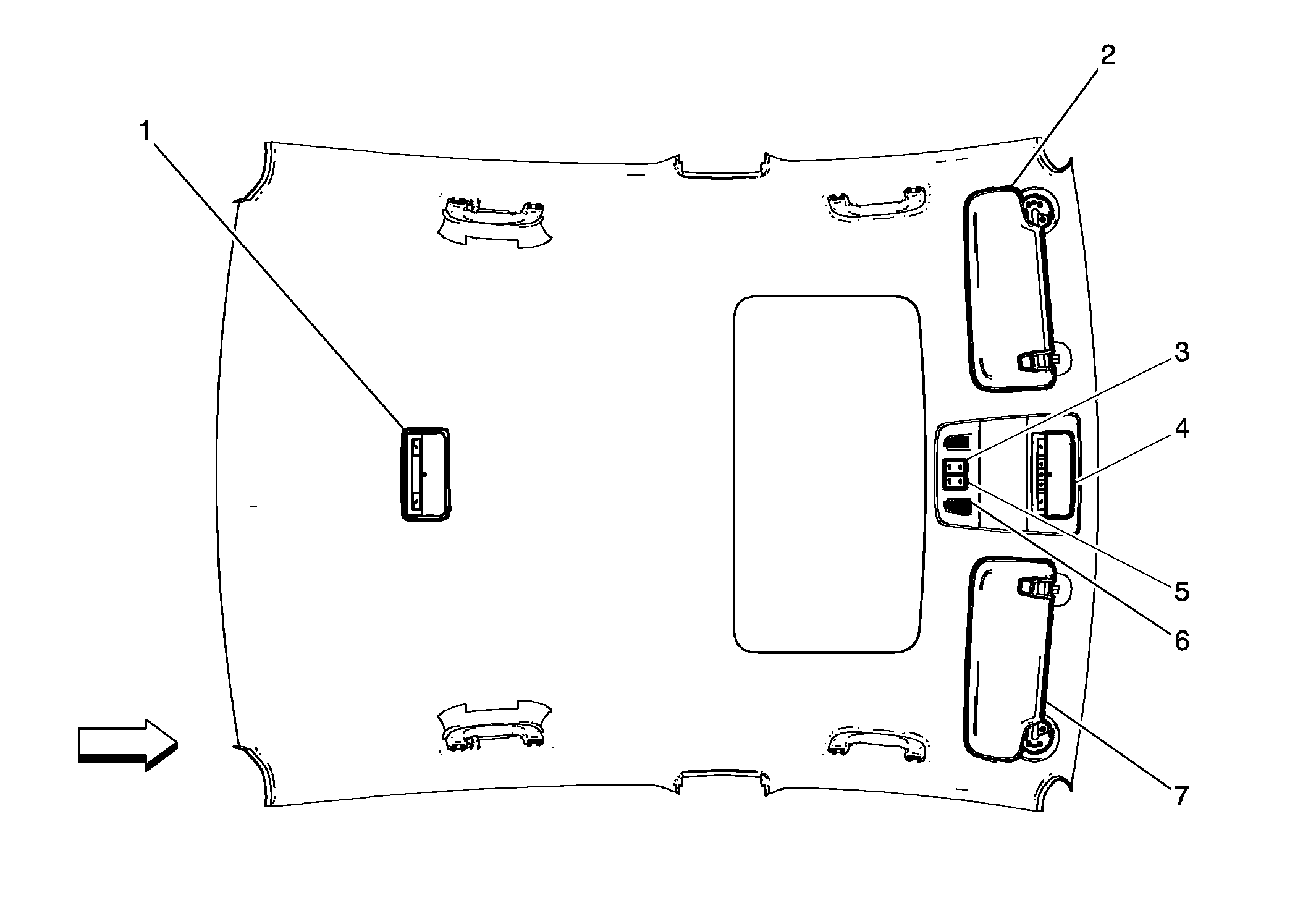

Fig 1: Headliner Components
GM3657751Courtesy of GENERAL MOTORS COMPANY
