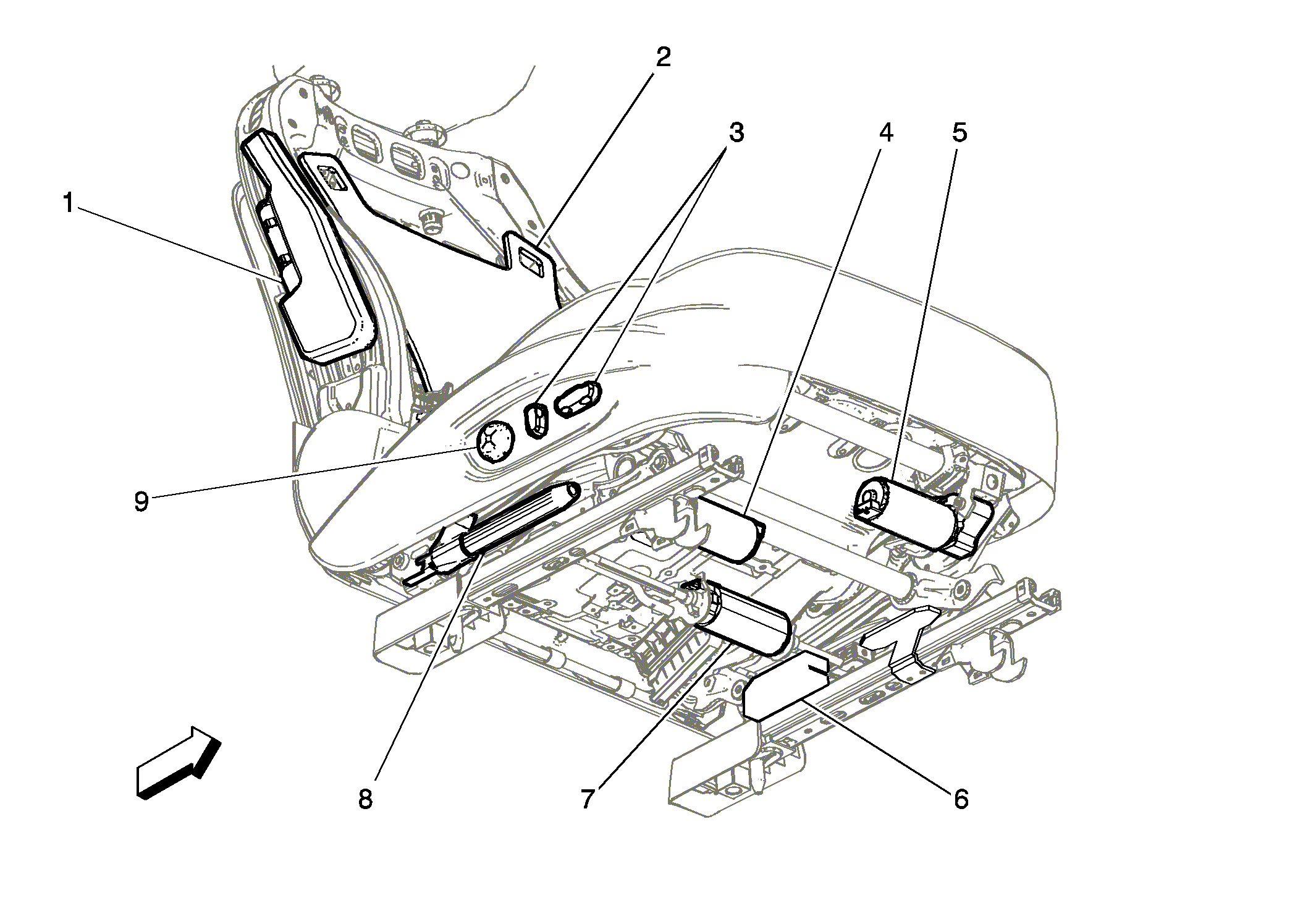

Bottom of Passenger Seat Components (1 of 2)
Bottom of Passenger Seat Components (1 of 2)
| Items |
|---|
| 1:F106RF Seat Side Air Bag - Right Front |
| 2: E14C Seat Heating Element - Passenger Back (KA1) |
| 3: S64P Seat Adjuster Switch - Passenger (A6C or AG2) |
| 4: M51P Seat Horizontal Motor - Passenger (AG2) |
| 5: M50P Seat Front Vertical Motor - Passenger (AG2) |
| 6: M56P Seat Recline Motor - Passenger (AG2) |
| 7: M55P Seat Rear Vertical Motor - Passenger (AG2) |
| 8: F113P Seat Belt Anchor Pretensioner - Passenger |
| 9: S65P Seat Lumbar Support Switch - Passenger (APH) |
