Right Rear Door Components

Right Rear Door Components

Items
1: M74RR Window Motor - Right Rear
2: A23RR Door Latch Assembly - Right Rear
3: S79RR Window Switch - Right Rear
4: P19AM Speaker - Right Rear Door

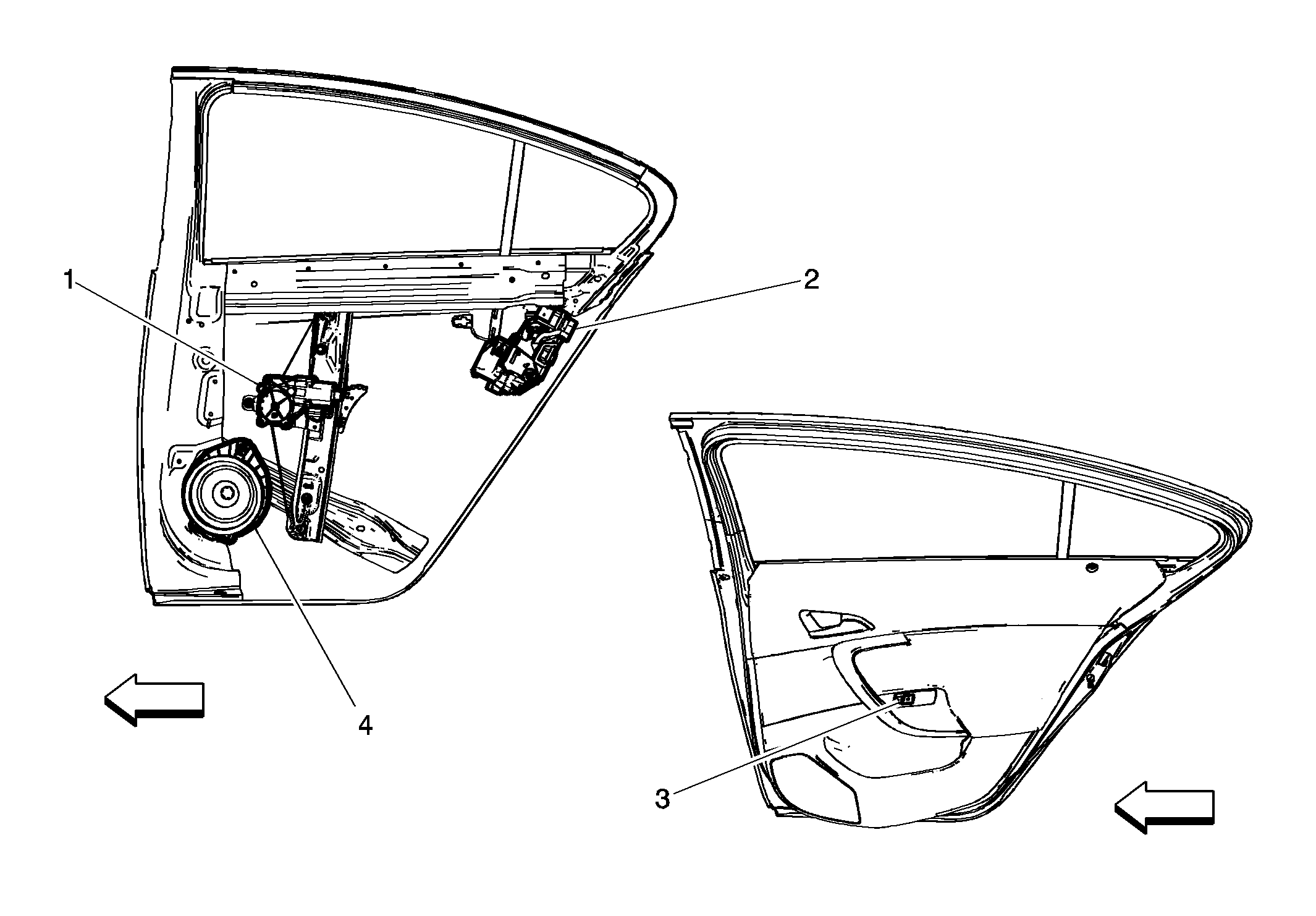

Fig 1: Right Rear Door Components
GM2504381Courtesy of GENERAL MOTORS COMPANY
