Electrical Component Locator - Door Component Views
>>
Door Component Views
>>
Left Rear Door Components
Left Rear Door Components
Left Rear Door Components
Items
1: A23LR Door Latch Assembly - Left Rear
2: M74LR Window Motor - Left Rear
3: S79LR Window Switch - Left Rear
4: P19AL Speaker - Left Rear Door

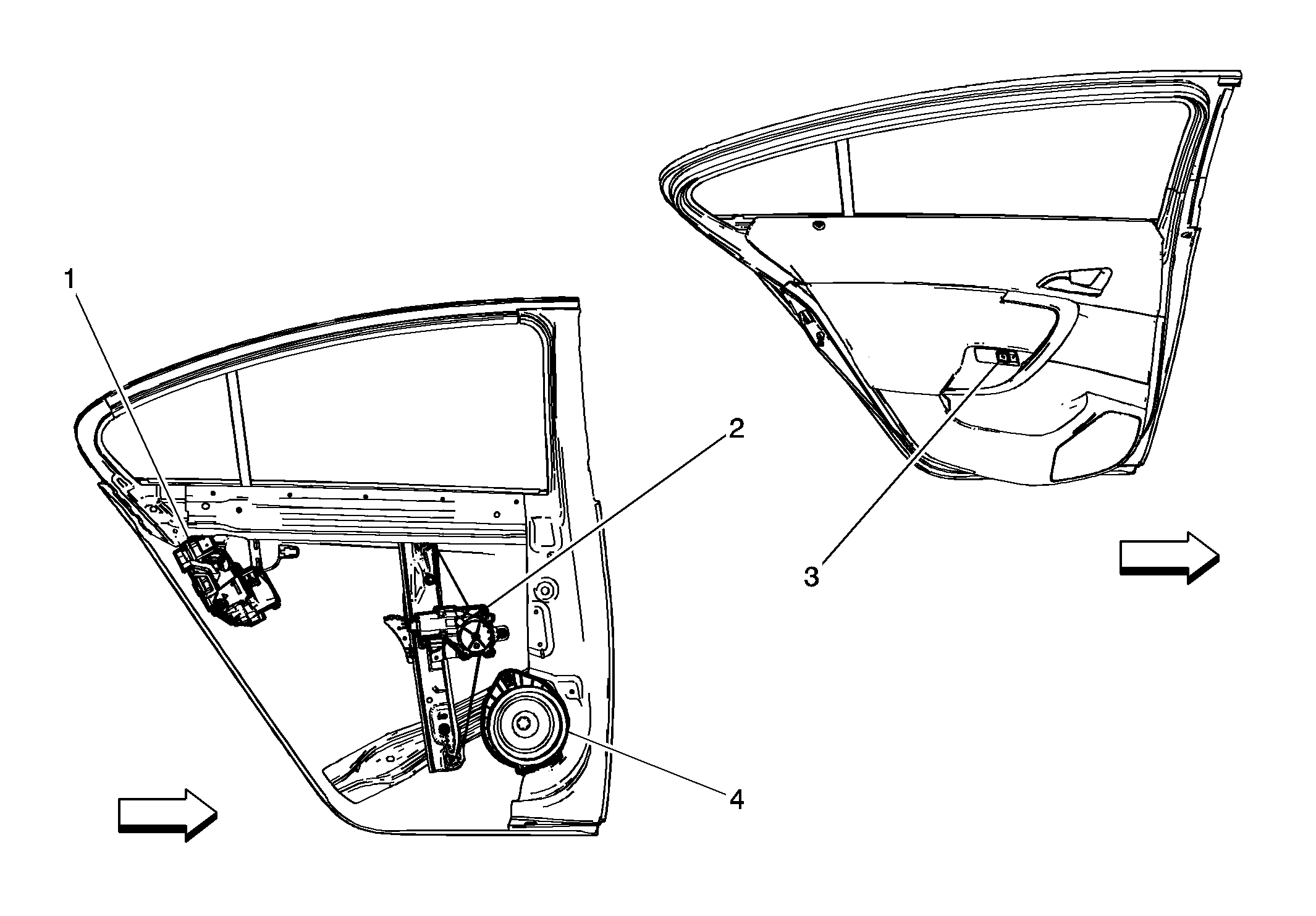

Fig 1: Left Rear Door Components
Courtesy of GENERAL MOTORS COMPANY
