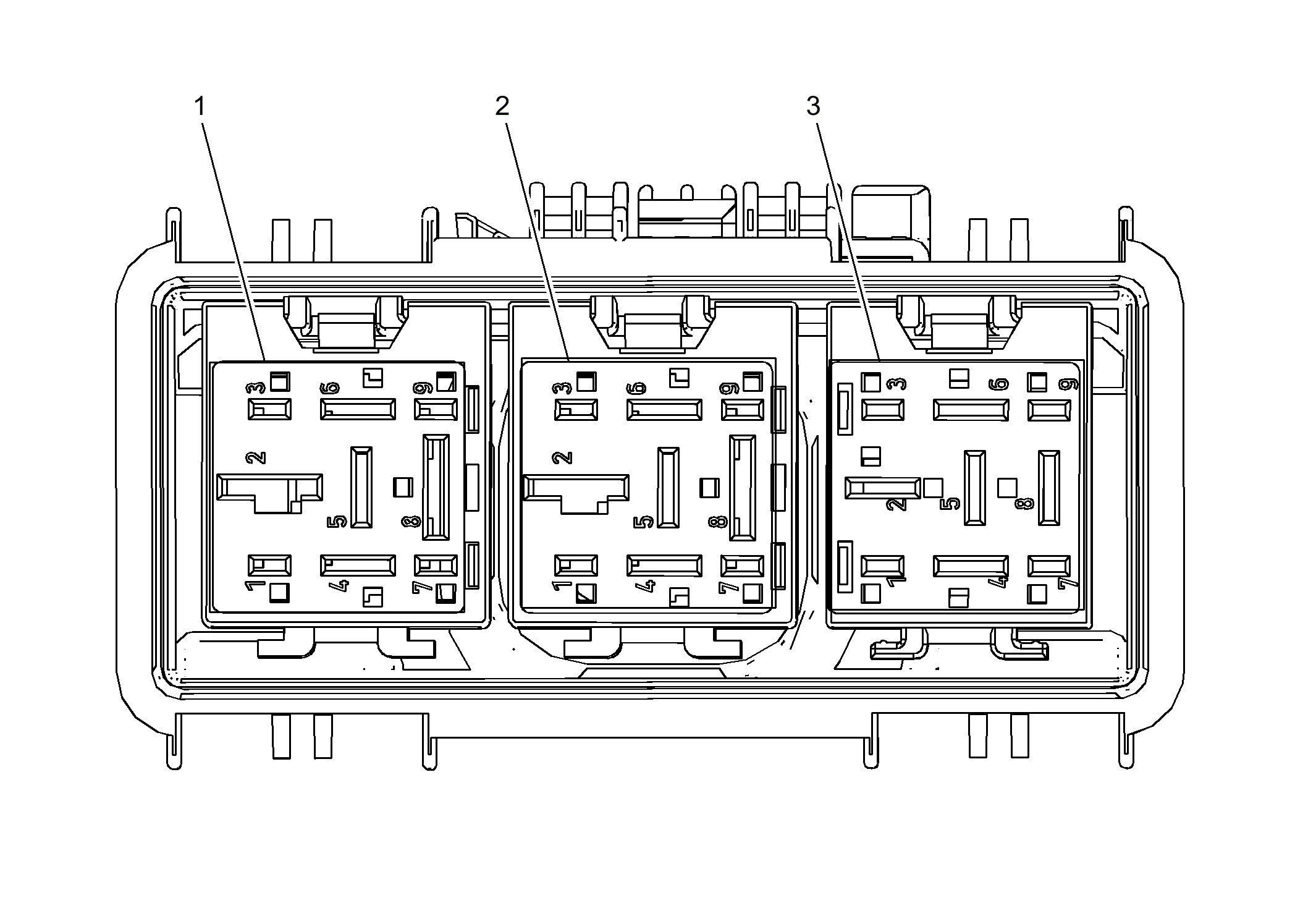

X70A Relay Block - Underhood Top View
X70A RELAY BLOCK - UNDERHOOD RELAY IDENTIFICATION
| No. | Device Label Name | Relay Description | Rating | Circuits |
|---|---|---|---|---|
| 1 | - | KR20M Cooling Fan Left Medium Speed Relay | - | G10L Cooling Fan Motor - Left |
| 2 | - | KR20N Cooling Fan Right Medium Speed Relay | - | G10R Cooling Fan Motor - Right |
| 3 | - | KR20L Cooling Fan Speed Control 2 Relay | - | G10L Cooling Fan Motor - Left, G10R Cooling Fan Motor - Right |
