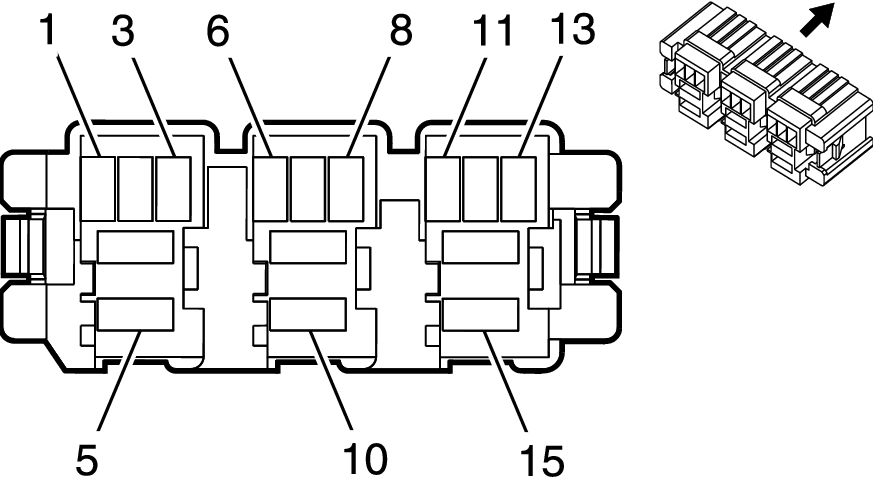

X51A Instrument Panel Bottom View Relays
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13595183
- Service Connector: 13595183
- Description: 15-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13327158 |
J-35616-42 (RD) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13327160 |
J-35616-42 (RD) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1-10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.5 |
BK |
1650 |
Ground |
I |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.5 |
GY/VT |
755 |
RAP Relay Coil Control |
I |
- |
| 14 |
6 |
VT/YE |
43 |
Accessory Voltage |
II |
- |
| 15 |
6 |
RD/L-GN |
3140 |
Battery Positive Voltage |
II |
- |
