X51A Fuse Block - Instrument Panel Bottom View Fuses

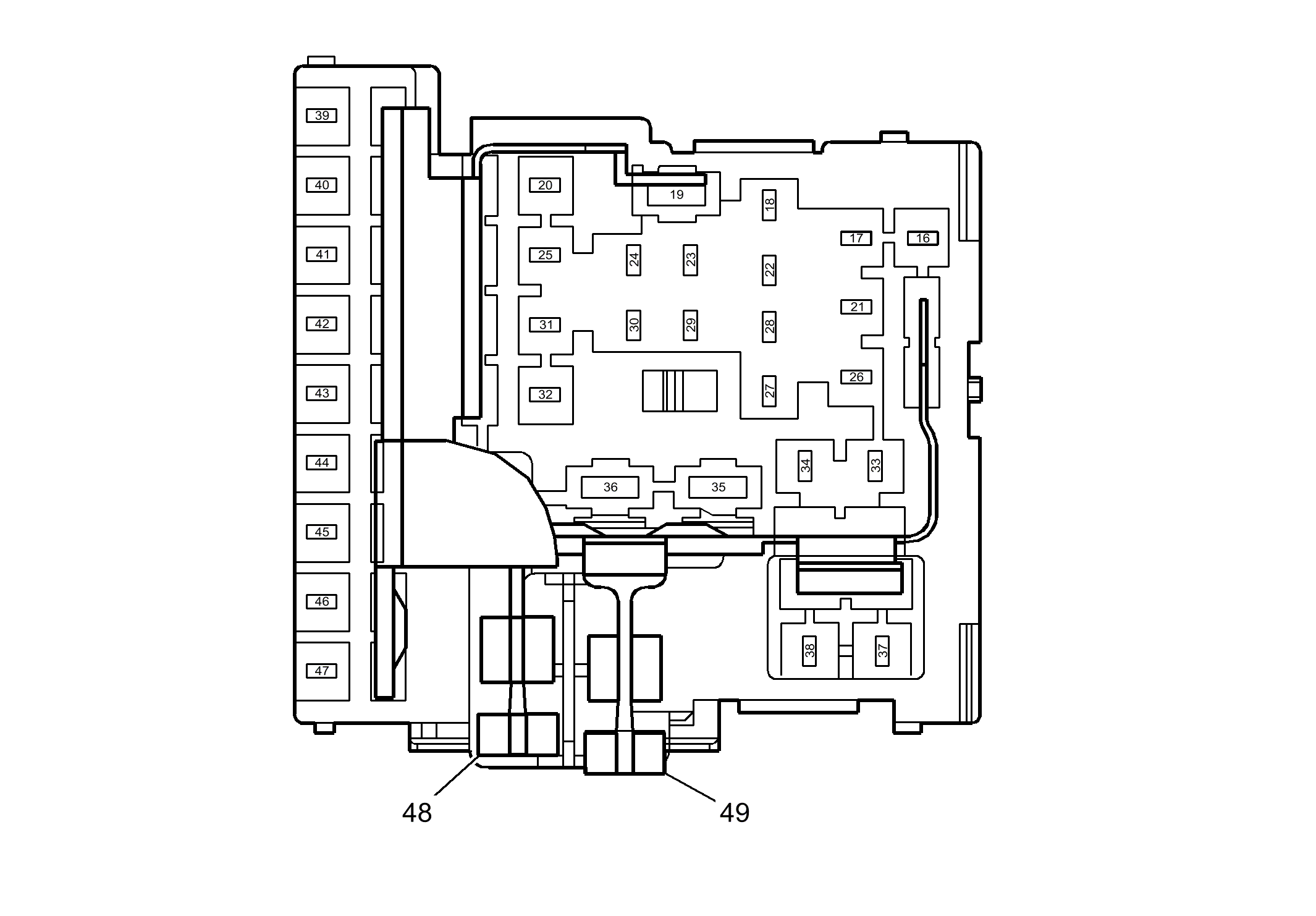

Courtesy of GENERAL MOTORS COMPANY X51A Fuse Block - Instrument Panel Wire Entry Fuses (CZ2)
| Pin |
Wire |
Circuit |
Function |
| 16 |
0.5 RD/GN |
3140 |
Battery Positive Voltage |
| 17 |
0.5 RD/WH |
1040 |
Battery Positive Voltage (F45/UPF) |
| 18 |
1.0 RD/GN |
40 |
Battery Positive Voltage |
| 19 |
3.0 RD/GN |
3140 |
Battery Positive Voltage |
| 20 |
0.5 RD/VT |
102 |
Battery Positive Voltage |
| 21 |
0.8 GY/VT |
691 |
Headlamp Low Beam Relay Control |
| 22 |
1.0 RD/GN |
3140 |
Battery Positive Voltage |
| 23 |
1.0 VT/YE |
43 |
Accessory Voltage |
| 24 |
1.0 VT/YE |
43 |
Accessory Voltage |
| 25 |
0.5 RD/YE |
2 |
Battery Positive Voltage |
| 26 |
0.8 GY |
975 |
Battery Positive Voltage |
| 27 |
0.5 RD/GN |
3140 |
Battery Positive Voltage |
| 28 |
1.0 RD/GN |
3140 |
Battery Positive Voltage |
| 29 |
1.0 VT |
801 |
Retained Accessory Power Fuse Supply Voltage |
| 30 |
1.0 VT |
801 |
Retained Accessory Power Fuse Supply Voltage |
| 31 |
0.5 BU/WH |
6128 |
Trunk Release Enable Relay Switch Supply Voltage |
| 32 |
0.5 RD/GN |
242 |
Battery Positive Voltage |
| 33 |
0.8 GY |
1524 |
Backup Lamp Supply Voltage Signal |
| 34 |
0.8 OG/BK |
974 |
Battery Positive Voltage |
| 35 |
3.0 RD/BN |
1440 |
Battery Positive Voltage |
| 36 |
5.0 RD/WH |
1040 |
Battery Positive Voltage |
| 37 |
3.0 RD/YE |
740 |
Battery Positive Voltage |
| 38 |
3.0 RD/BN |
702 |
Battery Positive Voltage |
| 39 |
- |
- |
Not Used |
| 40 |
0.5 RD/WH |
2040 |
Battery Positive Voltage (A45) |
| 41 |
- |
- |
Not Used |
| 42 |
0.5 RD/GY |
142 |
Battery Positive Voltage |
| 43 |
0.5 RD/VT |
340 |
Battery Positive Voltage (without BTM) |
| 44 |
0.5 WH/BN |
6815 |
Inadvertent Power Control |
| 45 |
0.5 BN |
6136 |
Supply Voltage |
| 46 |
0.8 RD/WH |
1040 |
Battery Positive Voltage (CJ4) |
| 0.8 RD/WH |
1040 |
Battery Positive Voltage (CJ4) |
| 47 |
- |
- |
Not Used |
| 48 |
10 RD/BK |
5140 |
Battery Positive Voltage |
| 49 |
10 RD/BU |
5140 |
Battery Positive Voltage |
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13595188
- Service Connector: Service by Harness - See Part Catalog
- Description: 32-Way Fuse Block (GY)
|
Terminal Part Information
- Pins: 16-18, 20-34, 39-45
- Terminated Lead: 13327182
- Release Tool: J-38125-38
- Diagnostic Test Probe: J-35616-35 (VT)
- Pins: 19, 35-38, 47
- Terminated Lead: 13327183
- Release Tool: J-38125-38
- Diagnostic Test Probe: J-35616-35 (VT)
- Pins: 48, 49
- Terminated Lead: 13327153
- Release Tool: J-38125-221
- Diagnostic Test Probe: J-35616-44 (YE)
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13595188
- Service Connector: Service by Harness - See Part Catalog
- Description: 32-Way Fuse Block (GY)
|
Terminal Part Information
- Pins: 16-18, 20-34, 39-45
- Terminated Lead: 13327182
- Release Tool: J-38125-38
- Diagnostic Test Probe: J-35616-35 (VT)
- Pins: 19, 35-38, 47
- Terminated Lead: 13327183
- Release Tool: J-38125-38
- Diagnostic Test Probe: J-35616-35 (VT)
- Pins: 48, 49
- Terminated Lead: 13327153
- Release Tool: J-38125-221
- Diagnostic Test Probe: J-35616-44 (YE)
|
