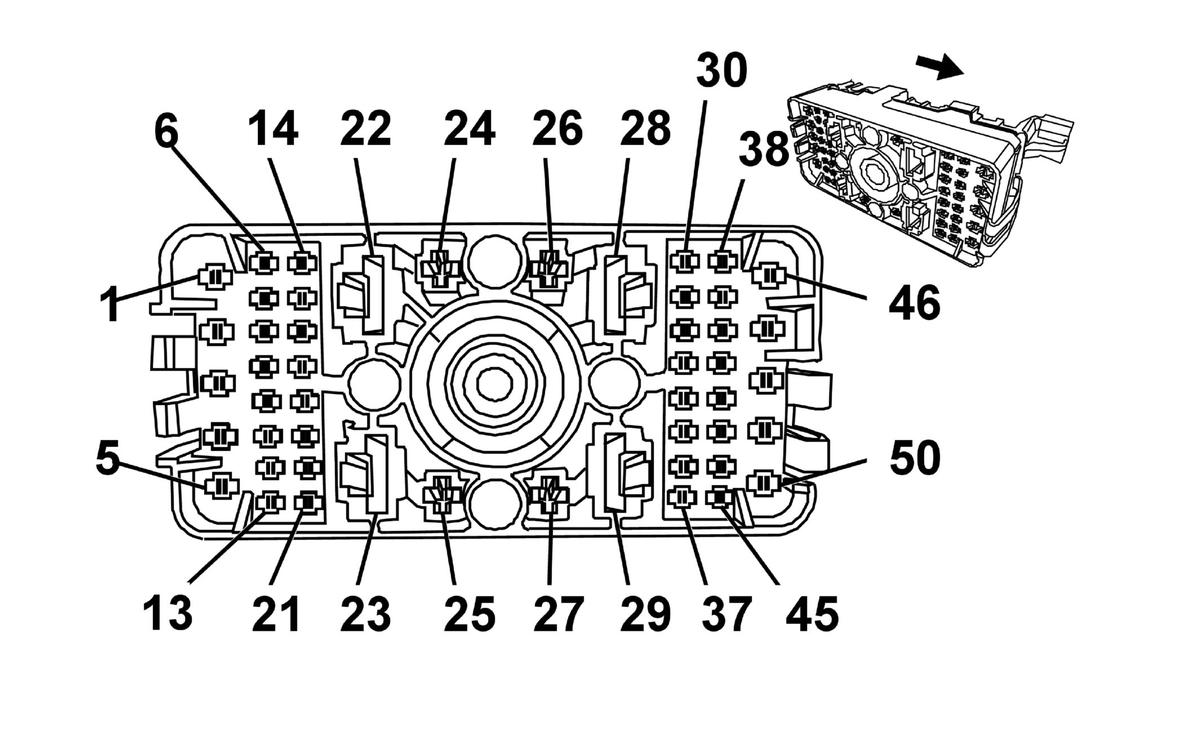

X50A Fuse Block - Underhood X3

Connector Part Information

Harness Type: Engine
OEM Connector: 13732282
Service Connector: 13505902
Description: 50-Way F 1.5, 2.8 DSQ Metri Pack 800 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13575781	J-35616-35 (VT)	J-38125-36	Not Available	Not Available	Not Available	Not Available
II	13575774	J-35616-2A (GY)	J-38125-560	Not Available	Not Available	Not Available	Not Available
III	13575491	J-35616-35 (VT)	J-38125-36	Not Available	Not Available	Not Available	Not Available
IV	13575860	J-35616-4A (PU)	J-38125-36	964280-2	15	E	C
V	13578869	J-35616-2A (GY)	J-38125-560	Not Available	Not Available	Not Available	Not Available
VI	13575780	J-35616-35 (VT)	J-38125-36	Not Available	Not Available	Not Available	Not Available
VII	13575773	J-35616-2A (GY)	J-38125-560	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	2.5 1	VT/D-BU VT/D-BU	5290 5290	Powertrain Main Relay Fused Supply (1) Powertrain Main Relay Fused Supply (1)	I	- -
2	2.5 0.75 2.5	VT/D-BU VT/D-BU VT/BK	5291 5291 5291	Powertrain Main Relay Fused Supply (2) Powertrain Main Relay Fused Supply (2) Powertrain Main Relay Fused Supply (2)	III	- - -
3	-	-	-	Not Occupied	-	-
4	0.5 0.5 0.5 0.5	VT/L-GN VT/BK VT/BK VT/BK	39 2139 2139 2139	Run/Crank Ignition 1 Voltage Run/Crank Ignition 1 Voltage Run/Crank Ignition 1 Voltage Run/Crank Ignition 1 Voltage	IV	- - - -
5	2.5	YE	6	Starter Solenoid Crank Voltage	I	-
6	1.5 0.5	VT/D-BU VT/D-BU	5293 5293	Powertrain Main Relay Fused Supply (4) Powertrain Main Relay Fused Supply (4)	V	- -
7	0.5	VT/D-BU	5294	Powertrain Main Relay Fused Supply (5)	II	-
8	-	-	-	Not Occupied	-	-
9	0.5	RD/D-BU	840	Battery Positive Voltage	VII	-
10	-	-	-	Not Occupied	-	-
11	0.5	VT/GY	6386	Starter Enable Relay (PPEI 3) Control	II	-
12	-	-	-	Not Occupied	-	-
13	0.5	GY	5127	After Boil Heater Relay Control	VII	-
14	-	-	-	Not Occupied	-	-
15	0.5	BN/YE	473	High Speed Cooling Fan Relay Control	II	-
16	-	-	-	Not Occupied	-	-
17	0.5	YE	5991	Powertrain Relay Coil Control	II	-
18	0.5	L-GN/VT	335	Low Speed Cooling Fan Relay Control	II	-
19	-	-	-	Not Occupied	-	-
20	0.5 0.5 0.5	PK VT/GY VT/L-GN	139 139 439	Run/Crank Ignition 1 Voltage Run/Crank Ignition 1 Voltage Run/Crank Ignition 1 Voltage	II	- - -
21	0.5 0.75	BK BK	2650 2650	Ground Ground	II	- -
22-26	-	-	-	Not Occupied	-	-
27	0.5 0.5	RD/WH RD/BN	140 440	Battery Positive Voltage Battery Positive Voltage	IV	- -
28-31	-	-	-	Not Occupied	-	-
32	0.5	L-GN	380	A/C Refrigerant Pressure Sensor Signal	II	-
33	-	-	-	Not Occupied	-	-
34	0.5	WH/GY	459	A/C Compressor Clutch Relay Control	II	-
35	-	-	-	Not Occupied	-	-
36	0.5	YE/D-BU	5126	After Boil Heater Pump Supply Voltage	VII	-
37	0.75 0.75 1.5	RD/L-GN RD/L-GN RD/L-GN	40 1840 40	Battery Positive Voltage Battery Positive Voltage Battery Positive Voltage	II	- - -
38	0.5	BN/RD	2700	A/C Pressure Sensor 5 Volt Reference	II	-
39	0.5	BK/BN	5514	A/C Refrigerant Pressure Sensor Low Reference	II	-
40	0.5	RD/D-BU	840	Battery Positive Voltage	VII	-
41-45	-	-	-	Not Occupied	-	-
46	0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5	BN/YE BN/YE BN/YE BN/YE BN/YE BN/YE BN/YE BN/YE	473 473 473 473 473 473 473 473	High Speed Cooling Fan Relay Control High Speed Cooling Fan Relay Control High Speed Cooling Fan Relay Control High Speed Cooling Fan Relay Control High Speed Cooling Fan Relay Control High Speed Cooling Fan Relay Control High Speed Cooling Fan Relay Control High Speed Cooling Fan Relay Control	IV	- - - - - - - -
47-49	-	-	-	Not Occupied	-	-
50	0.5	BN/L-GN	59	A/C Compressor Clutch Supply Voltage	VI	-
