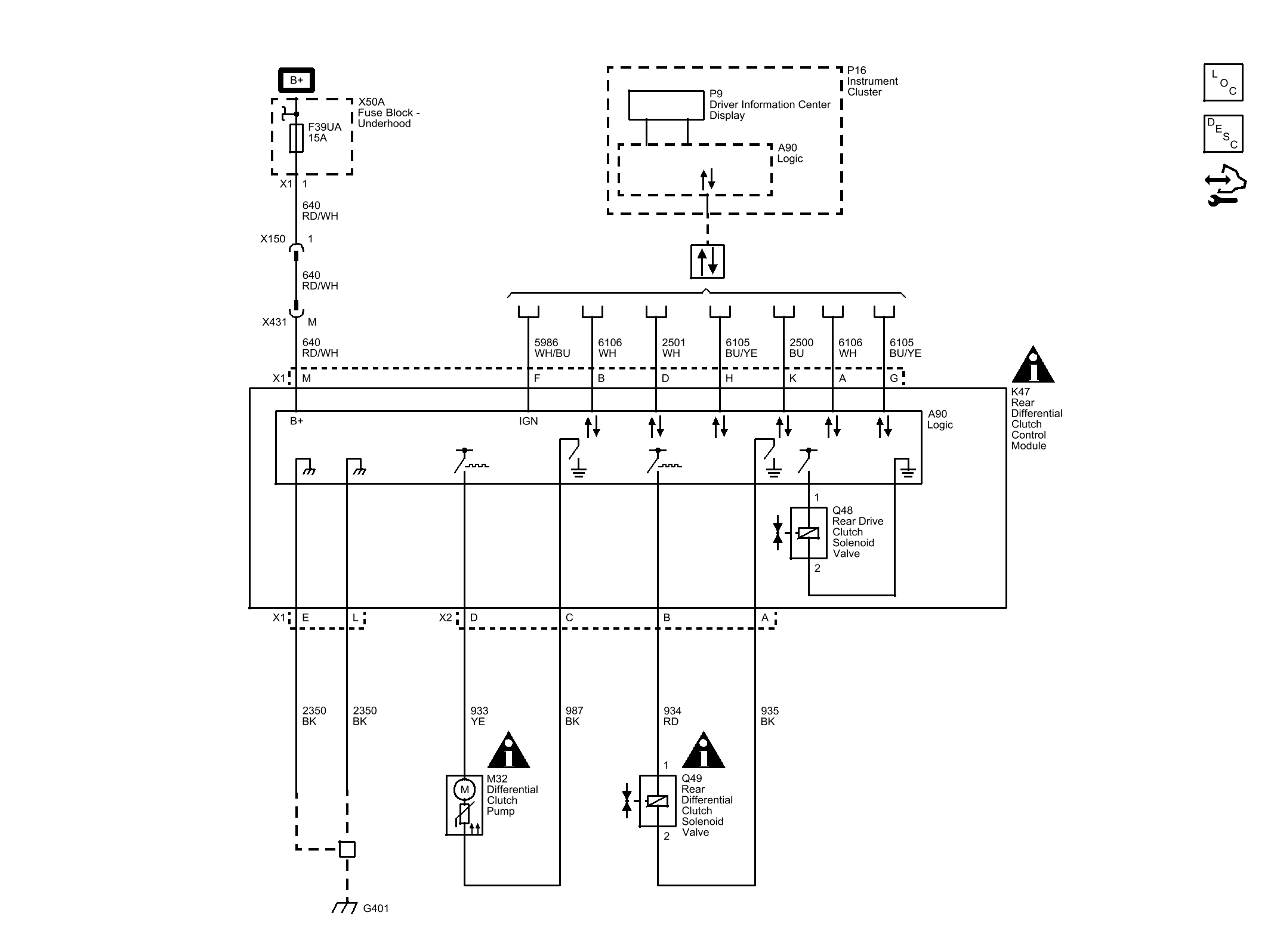

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Drivelines & Axles >> Differentials & Drive Axles >> Rear Drive Axle >> Schematic Wiring Diagrams >> Rear Axle Wiring Schematics >> All-Wheel Drive (F46)
