Rear Axle Lubricant Level Inspection

Preliminary Procedure

1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Ensure the vehicle is in level.
3. Inspect the rear axle for leaks. Repair if necessary.

Procedure

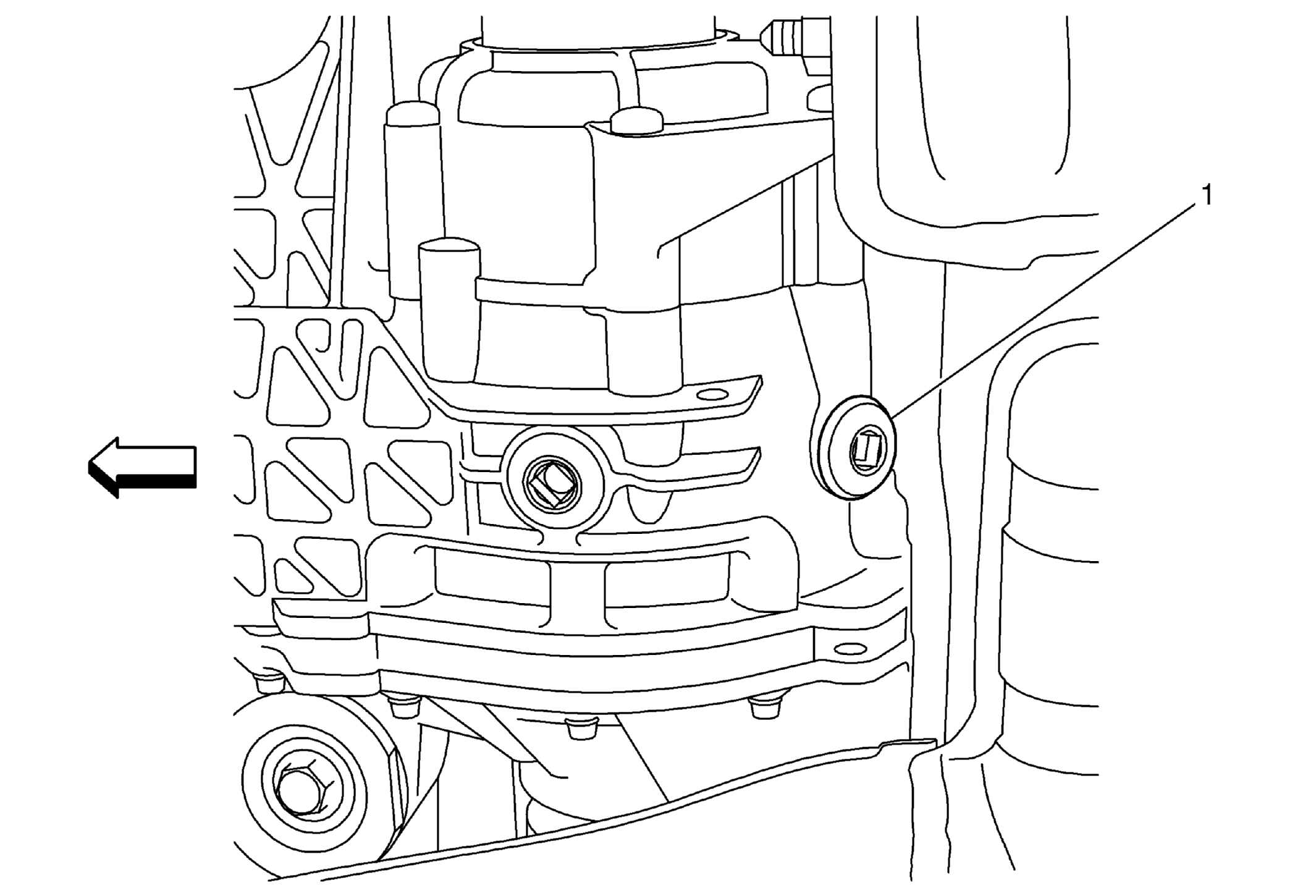

1. Clean the area around the rear axle fill plug.
2. Add lubricant until the level is even with the bottom edge of the fill plug opening. Use the proper fluid. Refer to Adhesives, Fluids, Lubricants, and Sealers .
