Limited Slip Differential Assemble
- Clean sealant from the sealing surfaces and wash with a suitable degreaser. Refer to Adhesives, Fluids, Lubricants, and Sealers

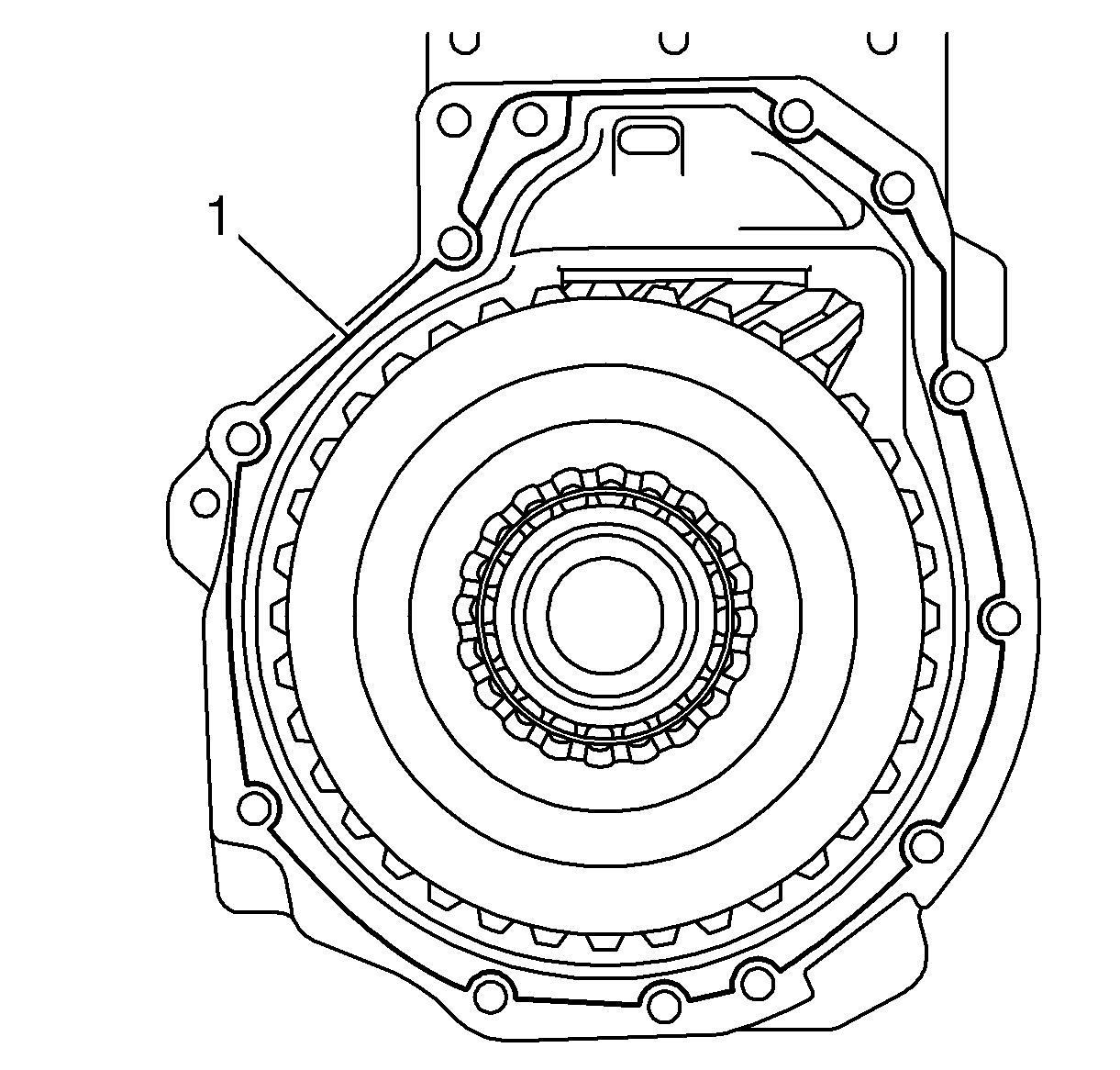

- Apply a bead of (1) Sealing adhesive to one sealing surface Refer to Adhesives, Fluids, Lubricants, and Sealers

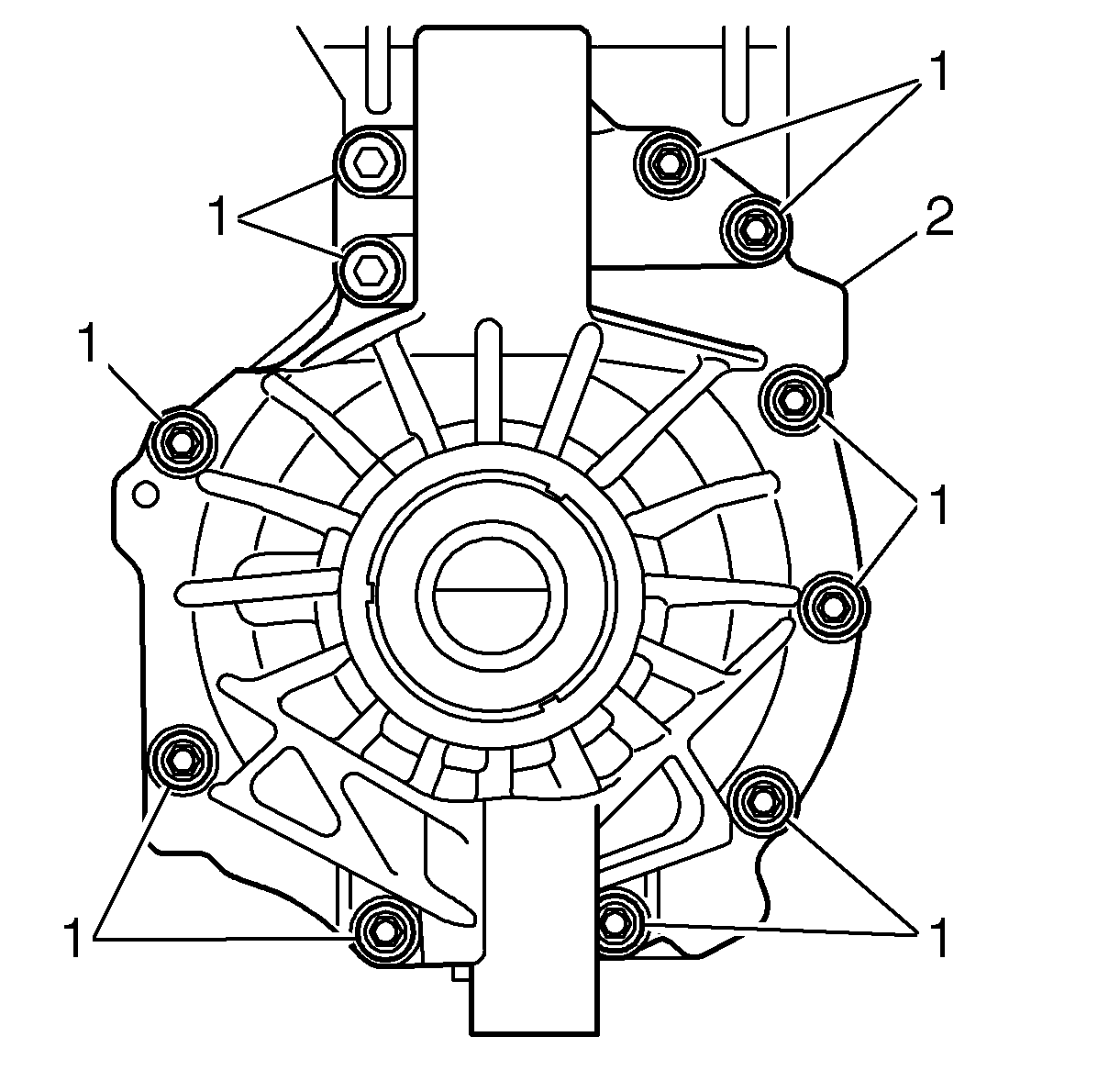

- Fit the right-hand limited slip differential housing (2) using new bolts (1) and tighten to 45 N.m (33 lb ft).
- Fit Complete unit, differential clutch and limited slip differential. Refer to Differential Carrier Assembly Replacement
- Fill the limited slip differential with oil, using a clean funnel and hose. The oil level should be below the hole. For oil type and volume refer to Adhesives, Fluids, Lubricants, and Sealers .
- Fit the level plug with a new sealing washer and tighten to 25 N.m (18.4 lb ft).
CAUTION:
Refer to Fastener Caution .
