Differential Clutch Seal Replacement (Inner)

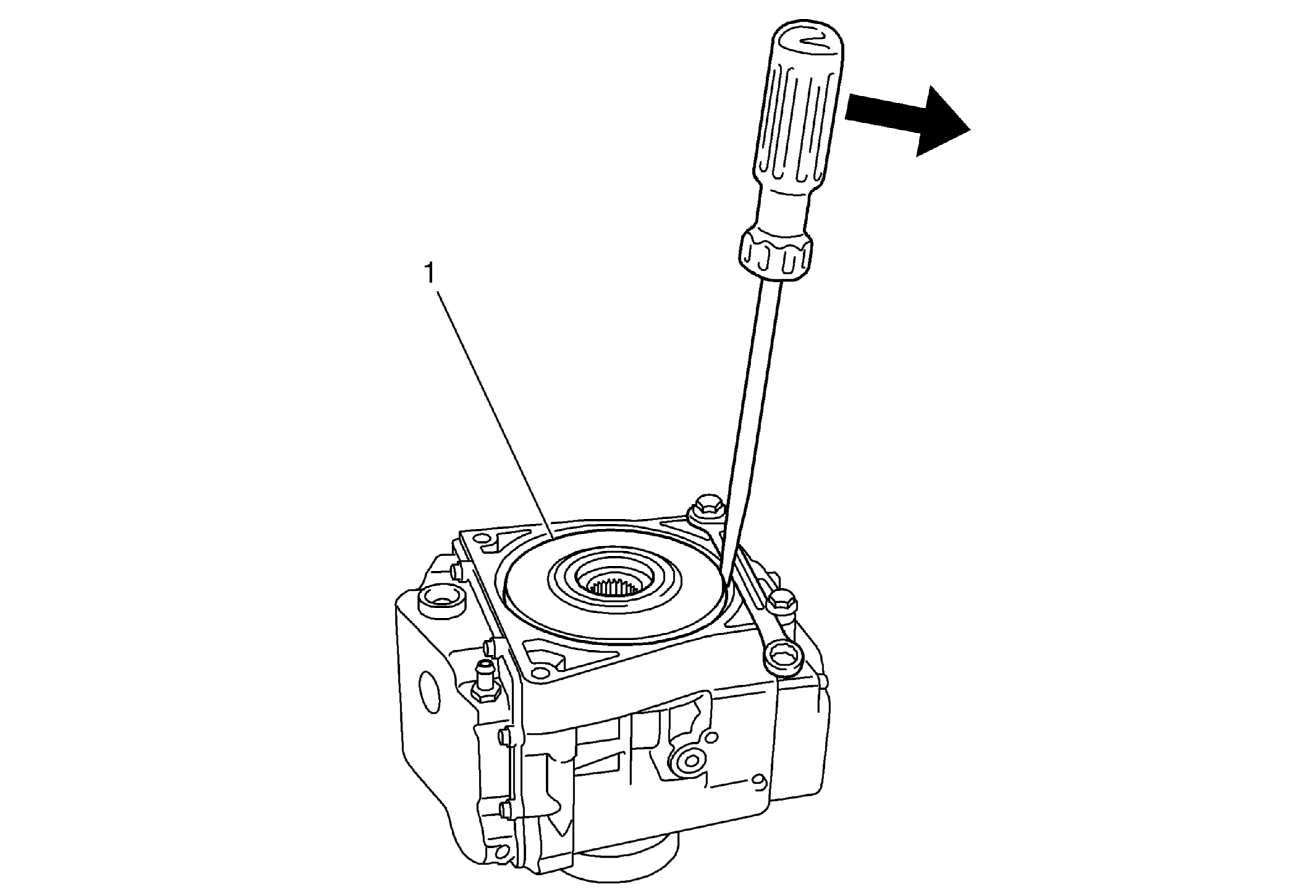

Fig 1: Differential Clutch Seal (Inner)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the differential clutch. Refer to Differential Clutch Replacement .
1	Differential Clutch Seal Procedure Position a wrench cross the differential clutch. Using a flat bladed screwdriver, remove the differential clutch seal (1). Remove the open end wrench. Apply a small amount of lubricant to the seal prior to installing it in the differential clutch. Refer to Adhesives, Fluids, Lubricants, and Sealers . Using the DT- 50022 installer and the DT8092 handle , install the differential clutch seal (1). TIP: The seal shall be flush with the axle. Special Tools DT8092 Universal Handle DT 50022 Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the differential clutch. Refer to Differential Clutch Replacement .

Differential Clutch Seal

Procedure

Position a wrench cross the differential clutch.
Using a flat bladed screwdriver, remove the differential clutch seal (1).
Remove the open end wrench.
Apply a small amount of lubricant to the seal prior to installing it in the differential clutch. Refer to Adhesives, Fluids, Lubricants, and Sealers .
Using the DT- 50022 installer and the DT8092 handle , install the differential clutch seal (1).

TIP: The seal shall be flush with the axle.

Special Tools

For equivalent regional tools, refer to Special Tools .
