Differential Carrier Bushing Replacement - Rear

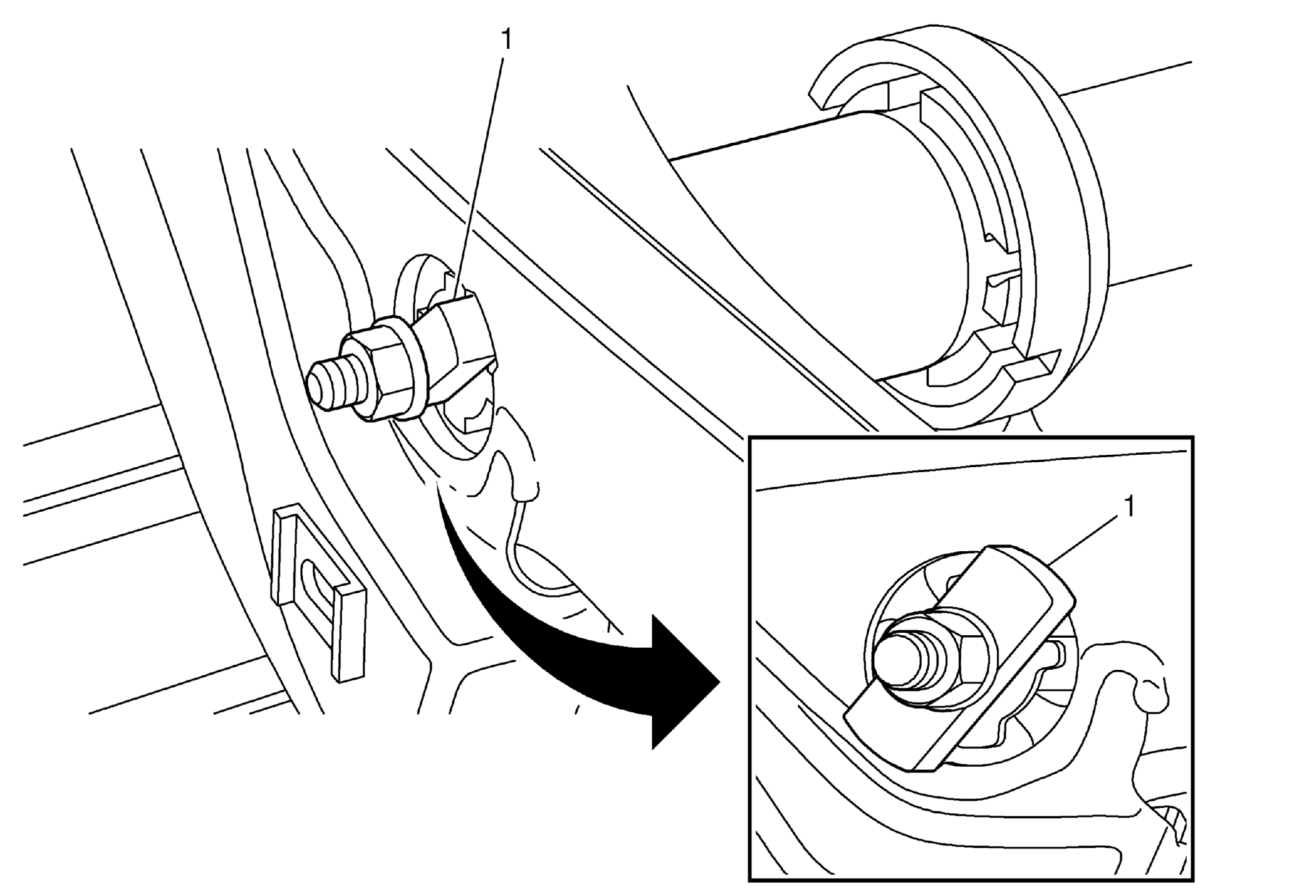

Fig 1: Differential Carrier Bushing - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the differential carrier assembly. Refer to Differential Carrier Assembly Replacement .
1	Differential Carrier Bushing Rear (Qty:2) Procedure Remove any debris from the area around the rear differential carrier bushing prior to removal. Using the CH-49158-1 tool and CH-49158-2 tool , remove the rear differential carrier bushing. Remove any residue from the old bushing before installing the new rear differential bushing. Position the rear differential bushing in the rear support. Using the CH-49158 tool kit , install the rear differential bushings. Special Tools CH-49158 Presstool Kit For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedure
Remove the differential carrier assembly. Refer to Differential Carrier Assembly Replacement .

Differential Carrier Bushing Rear (Qty:2)

Procedure

Remove any debris from the area around the rear differential carrier bushing prior to removal.
Using the CH-49158-1 tool and CH-49158-2 tool , remove the rear differential carrier bushing.
Remove any residue from the old bushing before installing the new rear differential bushing.
Position the rear differential bushing in the rear support.
Using the CH-49158 tool kit , install the rear differential bushings.

Special Tools
CH-49158 Presstool Kit
For equivalent regional tools, refer to Special Tools .
