Differential Carrier Assembly Description: Pinion

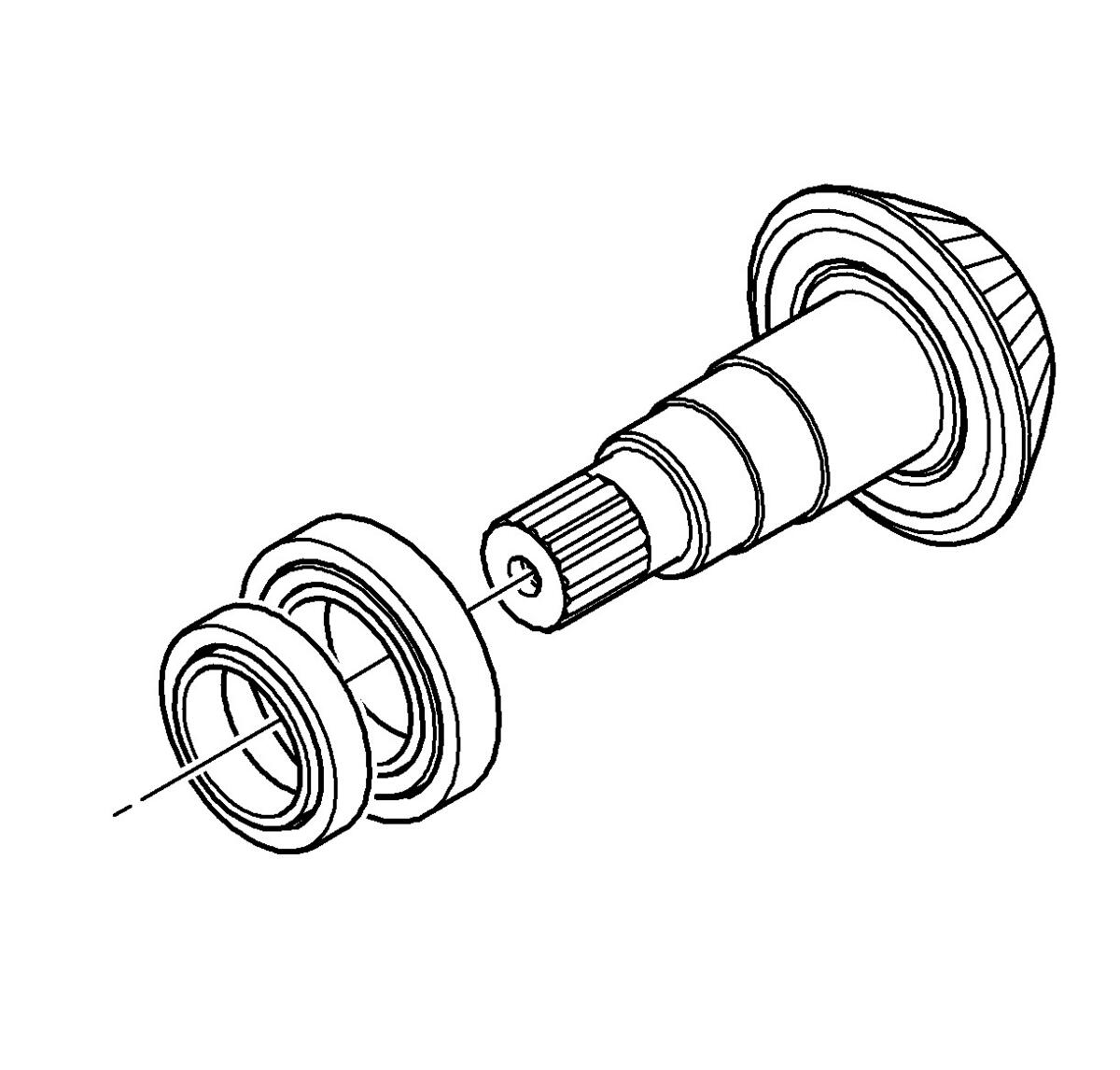

The pinion is fitted in the final drive gear's left-hand housing and cannot be replaced. It is mounted with two conical roller bearings, fitted towards each other. The bearing closest to the pinion gear absorbs forces that attempt to press the pinion gear from the crown wheel, while the farther bearing absorbs the forces that attempt to press the pinion gear into the crown wheel. The bearings have the correct preload by means of a nut fitted on the shaft being tightened until the correct bearing preload is obtained.
The pinion gear's gear contact to the crown wheel is governed by shims. A stuffing box in the front edge of the left-hand housing seals against the pinion shaft.
The pinion is matched together with the crown wheel.
