Differential Carrier Assembly Description: Housing

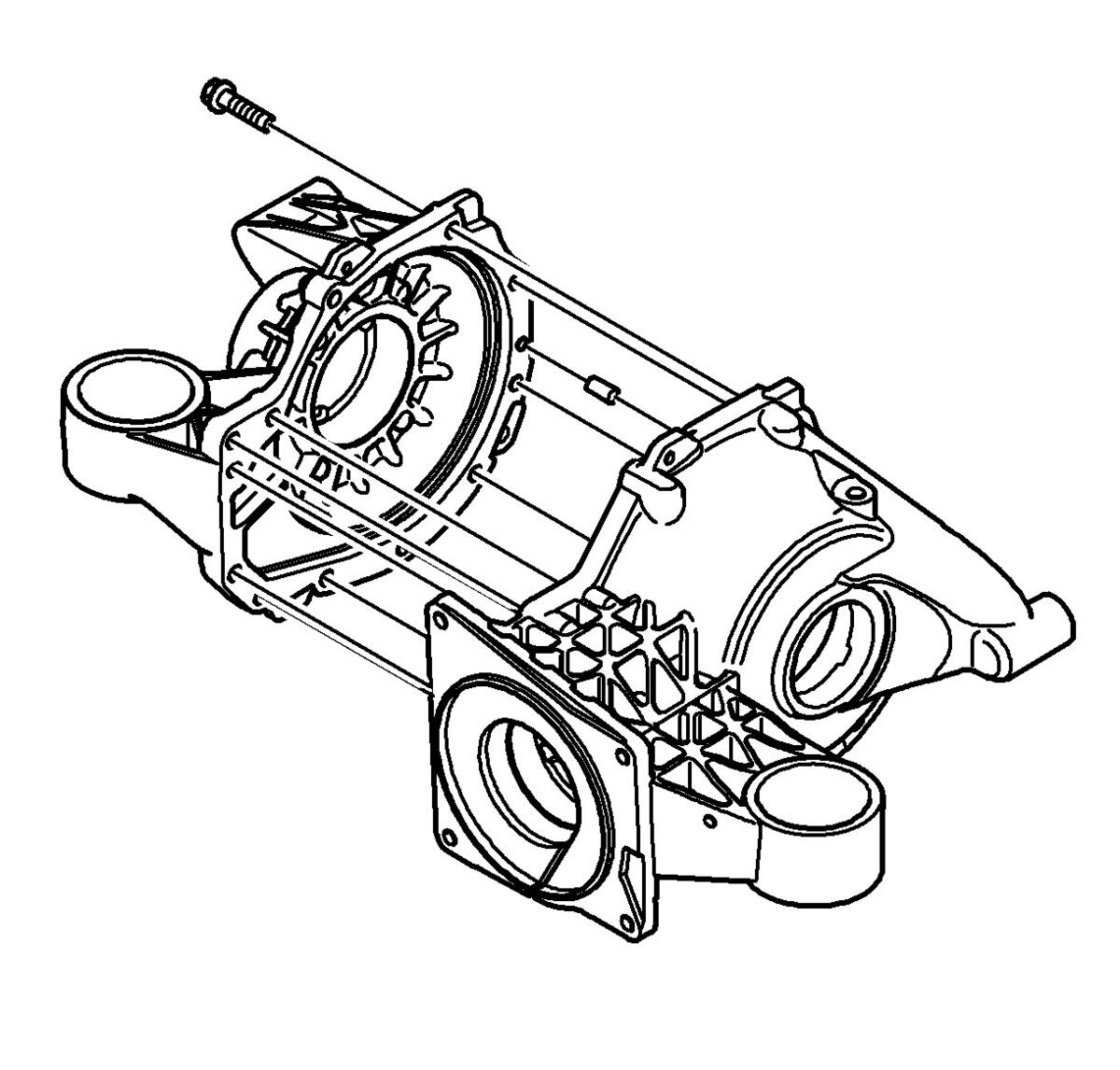

The differential carrier assembly housing consists of two halves, a right and left-hand half, bolted to each other with 11 bolts. Their relative position is governed by two guide pins. Housing and cover are produced from a high-pressure cast aluminium alloy. A number of reinforcement ribs are fitted in suitable locations to strengthen the housing and cover. The mating face between them is sealed using sealant.

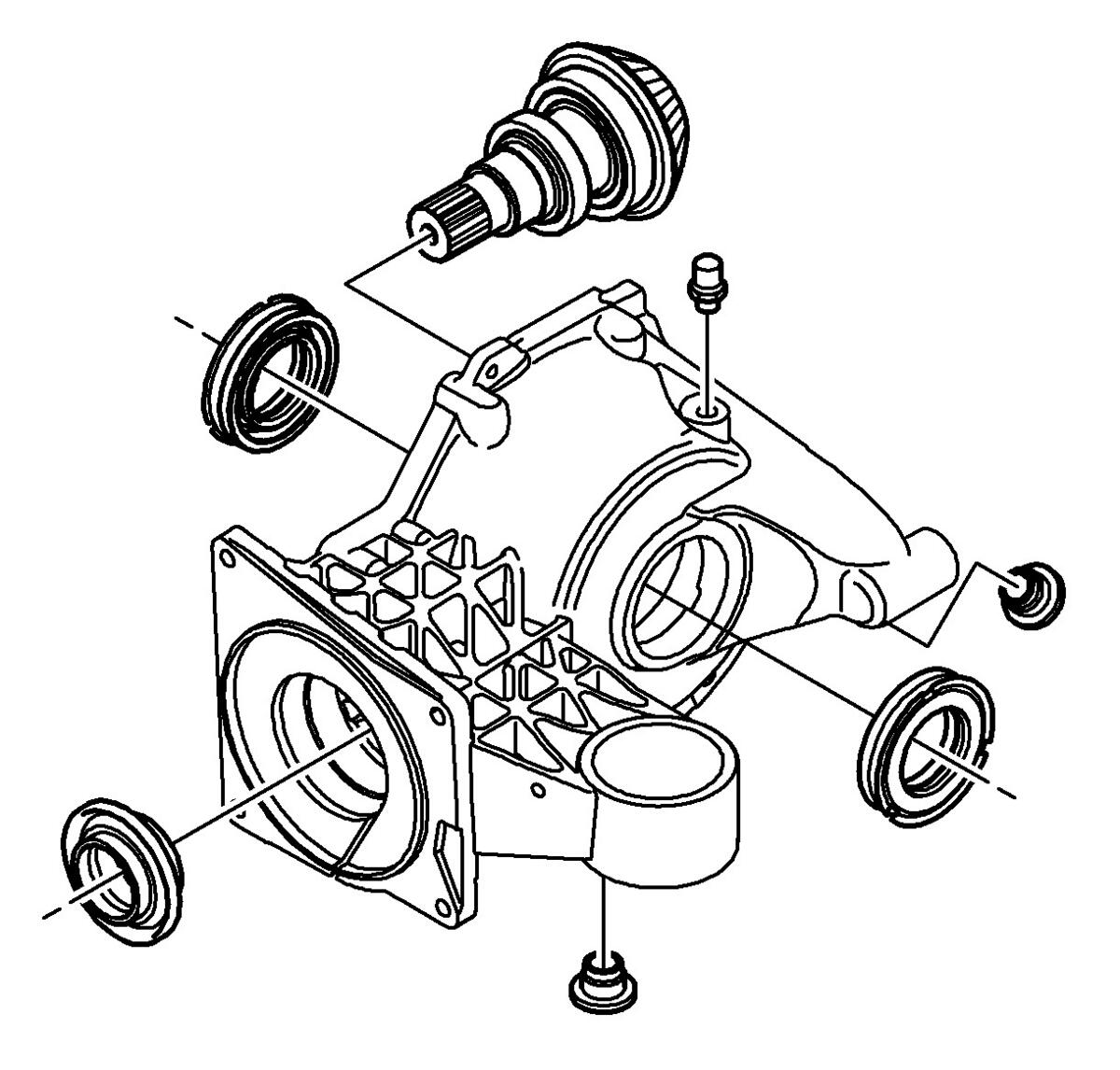

The left-hand half contains pinion, oil level plug, drain plug, air valve, bearing race for the final drive gear's left-hand bearing, stuffing box for sealing at the drive shaft lead-through. If the car is equipped with limited slip differential clutch then it is bolted to the left-hand half of the final drive gear.

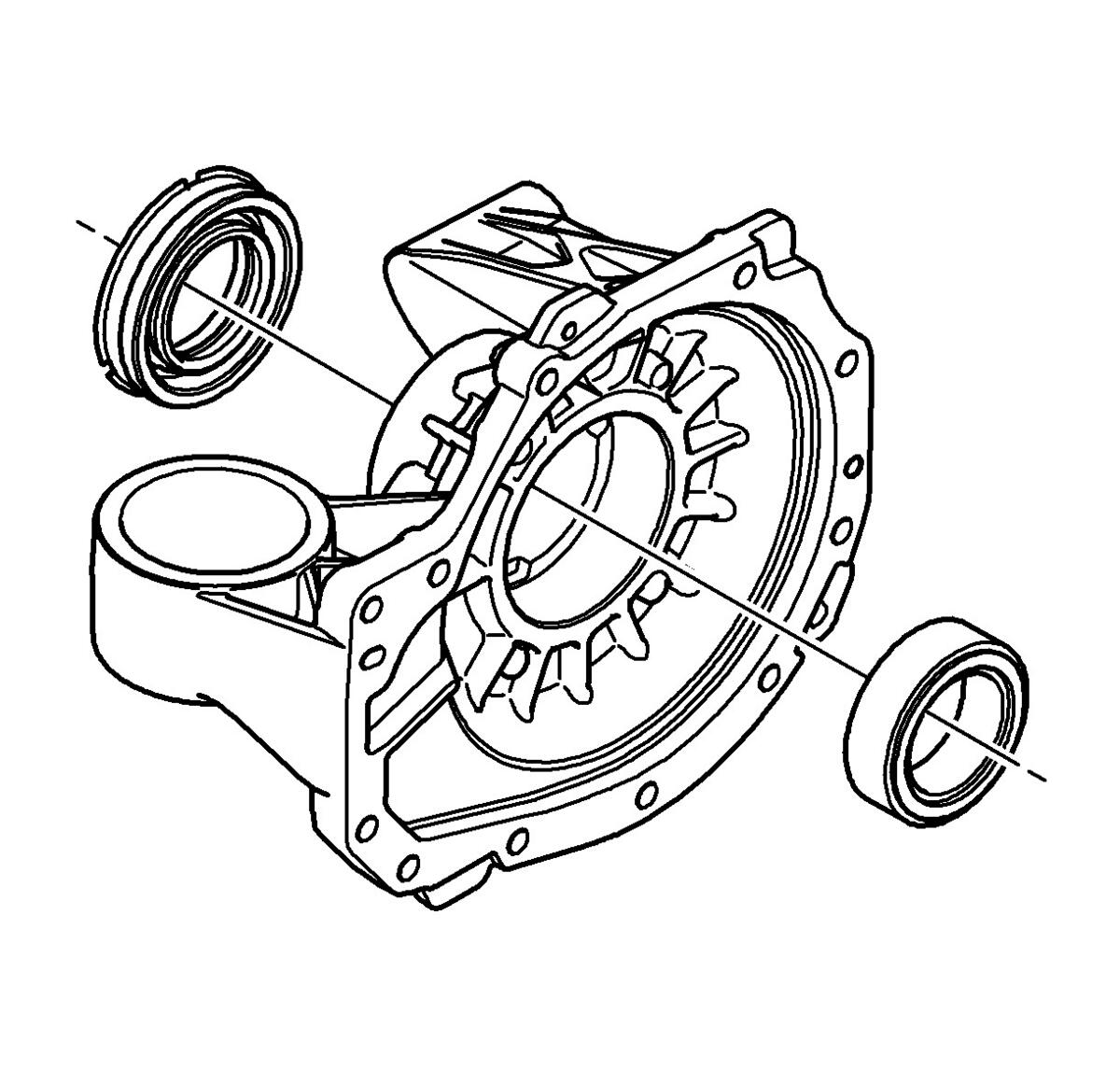

The right-hand half contains bearing race for the final drive gear's right-hand bearing as well as stuffing box for sealing at the drive shaft lead-through.
