Differential, assembly

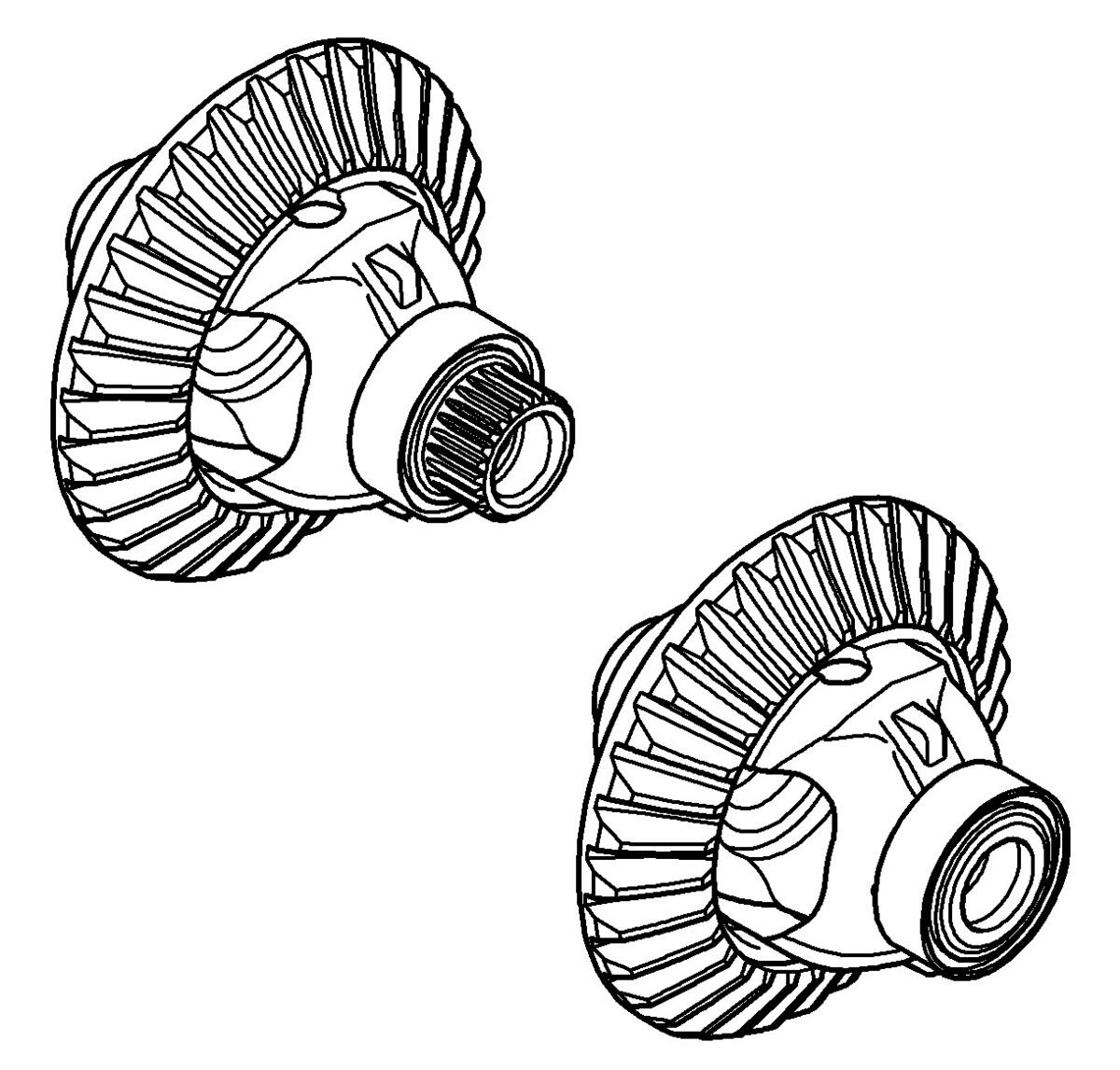

The differential consists of a crown wheel and differential housing with associated gears. It is fitted in the left-hand half of the final drive gear housing. The crown wheel is laser welded to the differential housing.

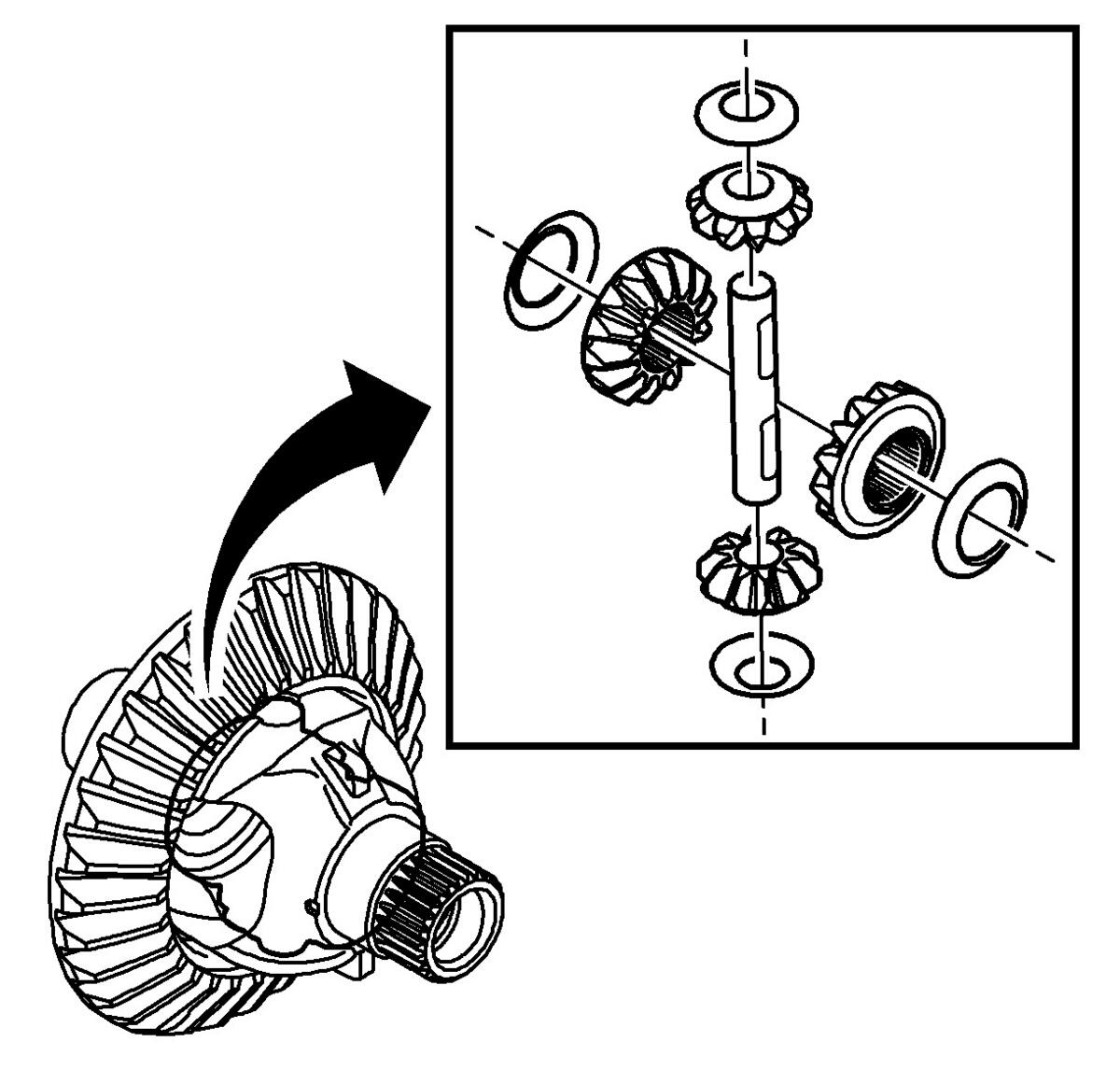

The differential is made up of a forged housing, two differential gears and two drive shaft gears. The differential gears are mounted on a ground and hardened shaft journal, the ends of which are attached into the differential housing and locked by the crown wheel. The drive shaft gears are internally equipped with splines in which the drive shafts fit. Behind the gears, towards the differential housing, there is a spring-loaded thrust washer which provides the drive shaft gears with the correct gear contact to the differential gears. The drive shafts are mounted directly in the differential housing material, the lead-throughs are equipped with lubricating grooves.
The differential unit is mounted in two conical roller bearings. The bearings are given the correct preload at manufacture by means of shims being fitted behind the bearing races in the respective housing.
The function of the differential is to allow the outer wheel to rotate faster than the inner wheel when cornering.
