Front Wheel Drive Intermediate Shaft Bracket Replacement (LTG)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intermediate shaft. Refer to Front Wheel Drive Intermediate Shaft Replacement (with MR6) Front Wheel Drive Intermediate Shaft Replacement (with MHH, MH8, M7U or M7W) . |
|

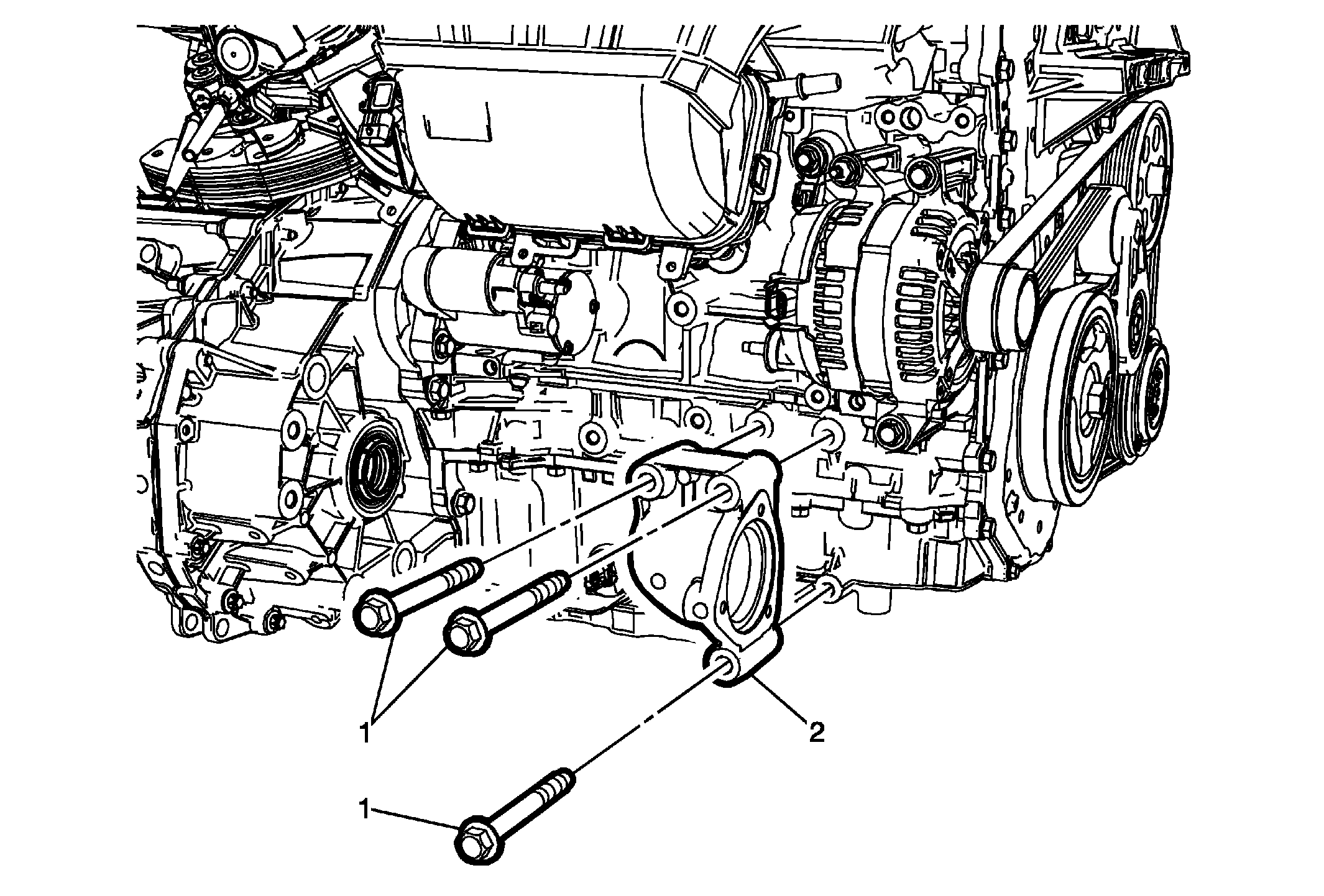

| 1 | Intermediate Shaft Bracket Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 58 N.m (43 lb ft) |
| 2 | Intermediate Shaft Bracket |
