Yaw, Lateral Acceleration and Steering Angle Sensors

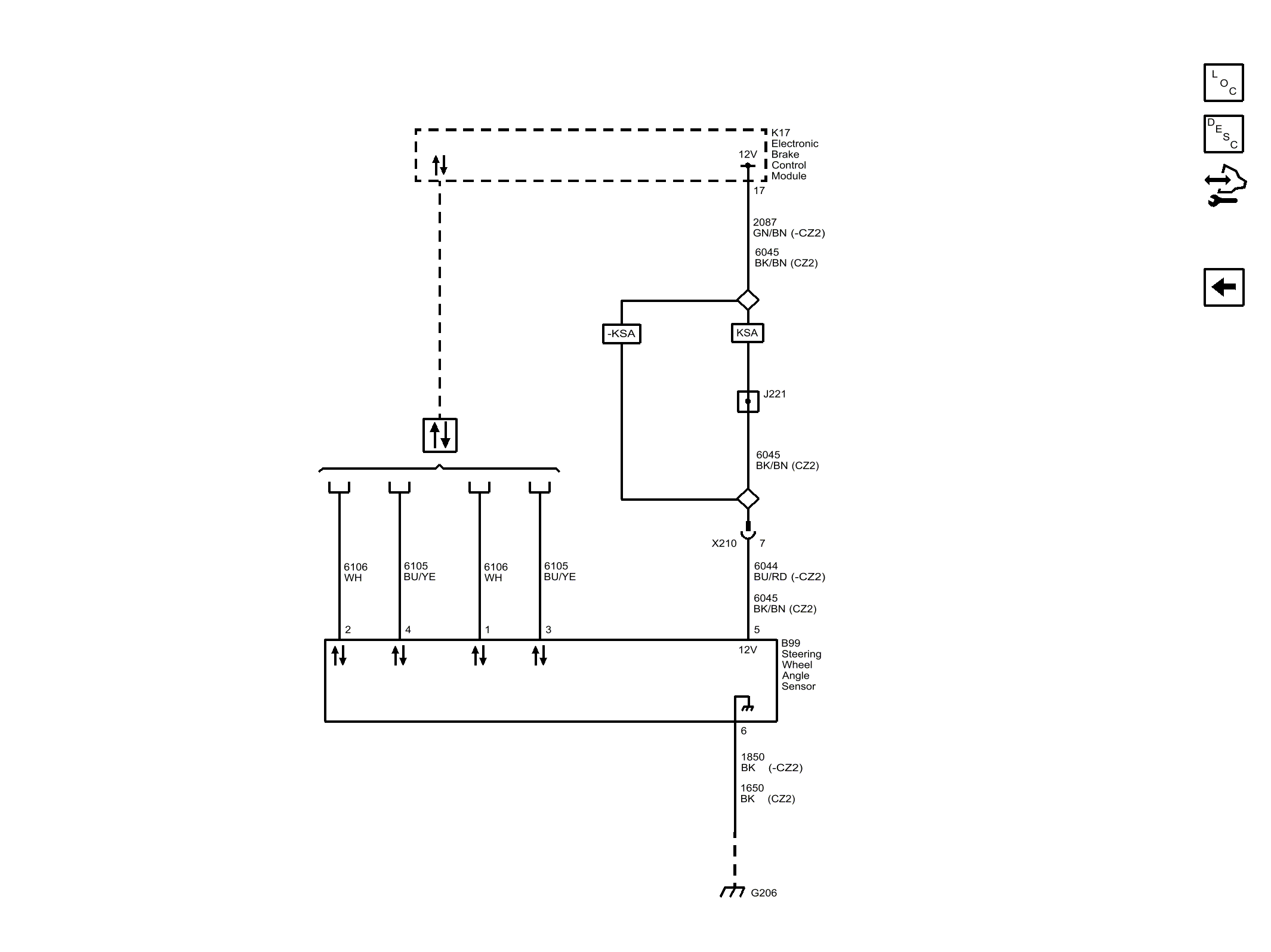

Fig 1: Yaw, Lateral Acceleration and Steering Angle Sensors

GM3768374

Courtesy of GENERAL MOTORS COMPANY
