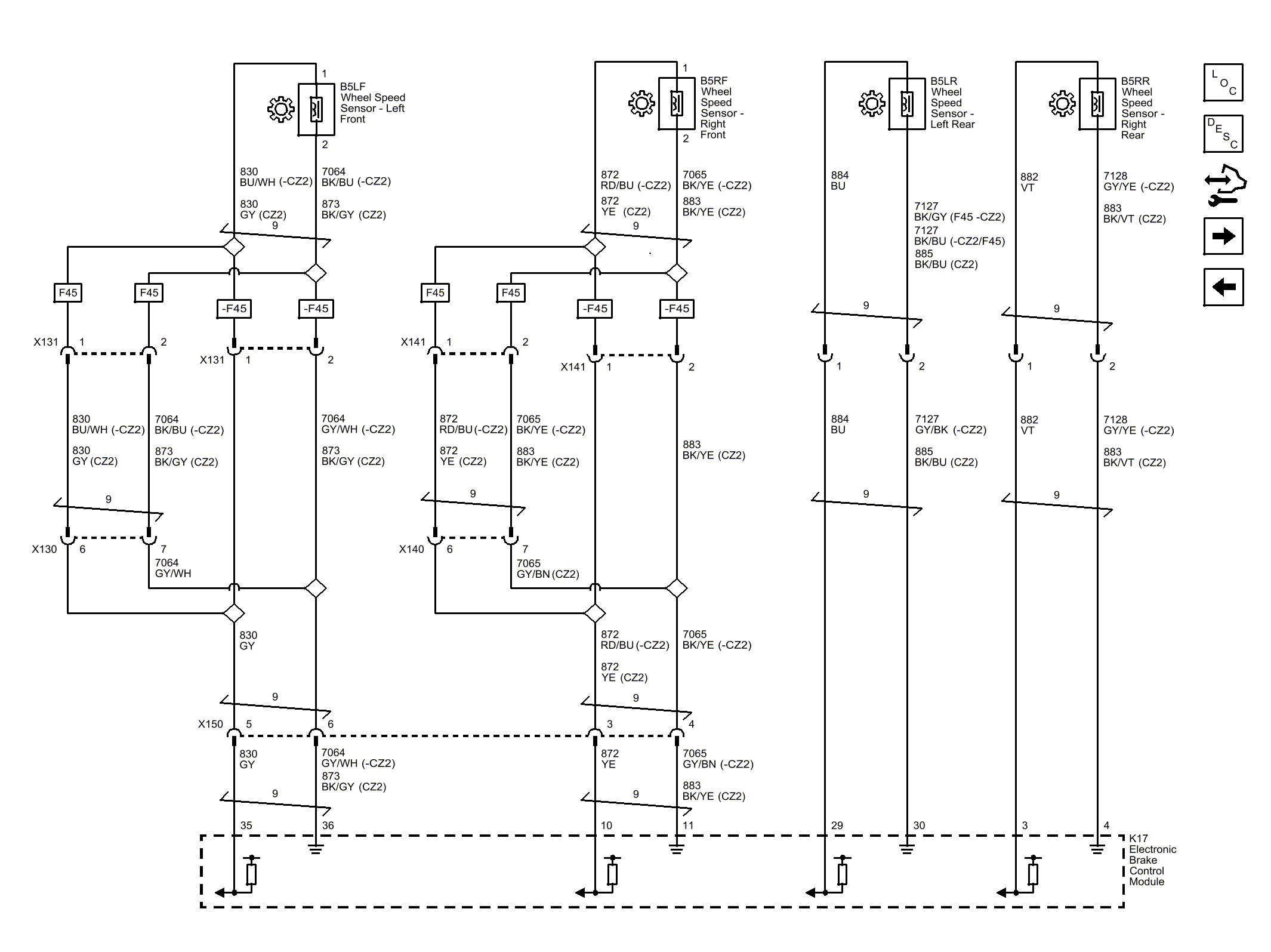

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Schematic Wiring Diagrams >> Antilock Brake System Wiring Schematics >> Wheel Speed Sensors
