Module Power, Ground, Brake Apply Signal and Subsystem References

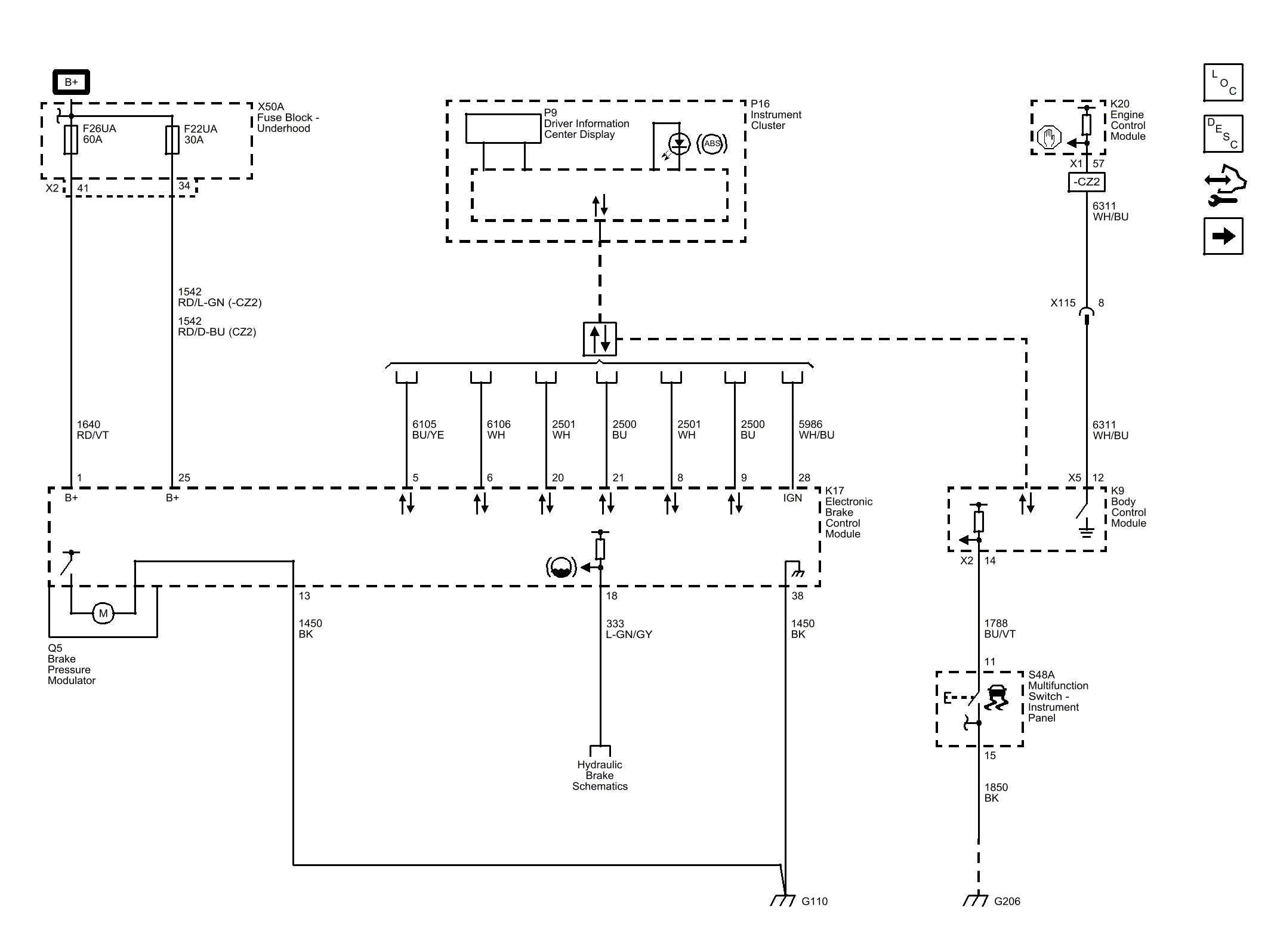

Fig 1: Module Power, Ground, Brake Apply Signal and Subsystem References

GM3768372

Courtesy of GENERAL MOTORS COMPANY
