Parking Brake Actuator Switch Replacement

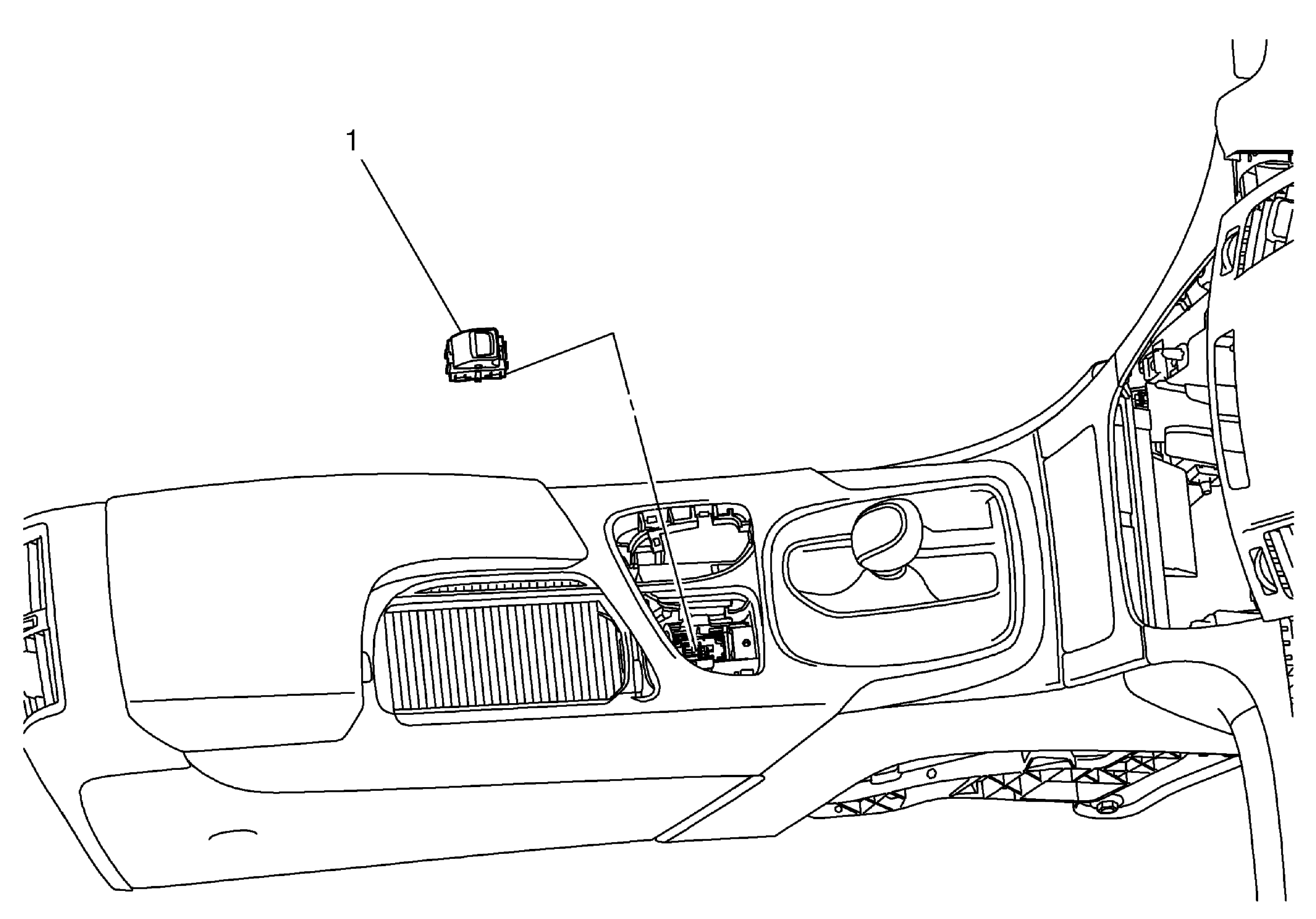

Fig 1: Parking Brake Actuator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console accessory switch mount plate. Refer to Front Floor Console Accessory Switch Mount Plate Replacement .
1	Parking Brake Actuator Switch Procedure  Disconnect electrical connector.
