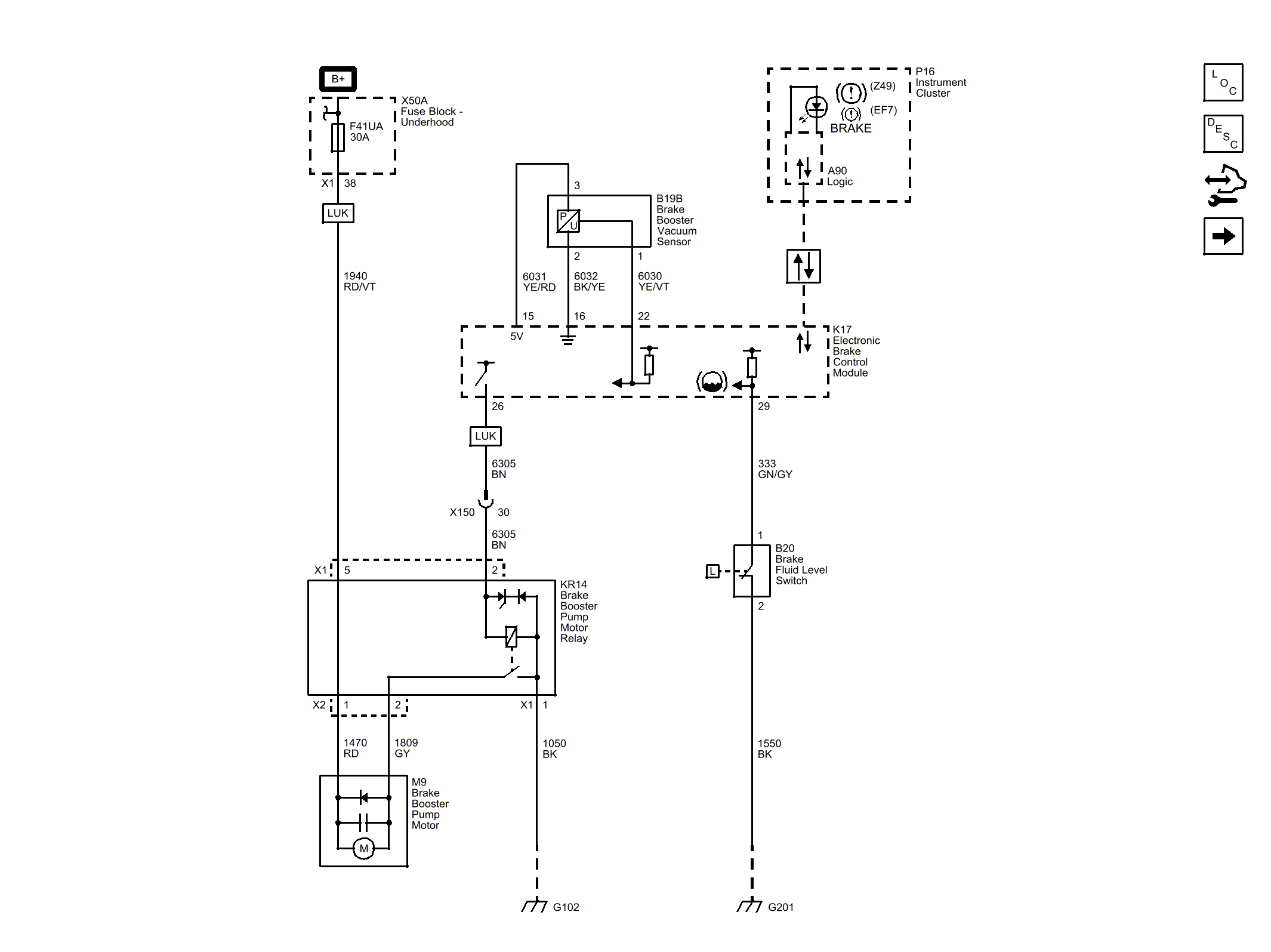

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brake System >> Schematic Wiring Diagrams >> Hydraulic Brake Wiring Schematics >> Hydraulic Brakes (except CZ2)
