Installation Procedure

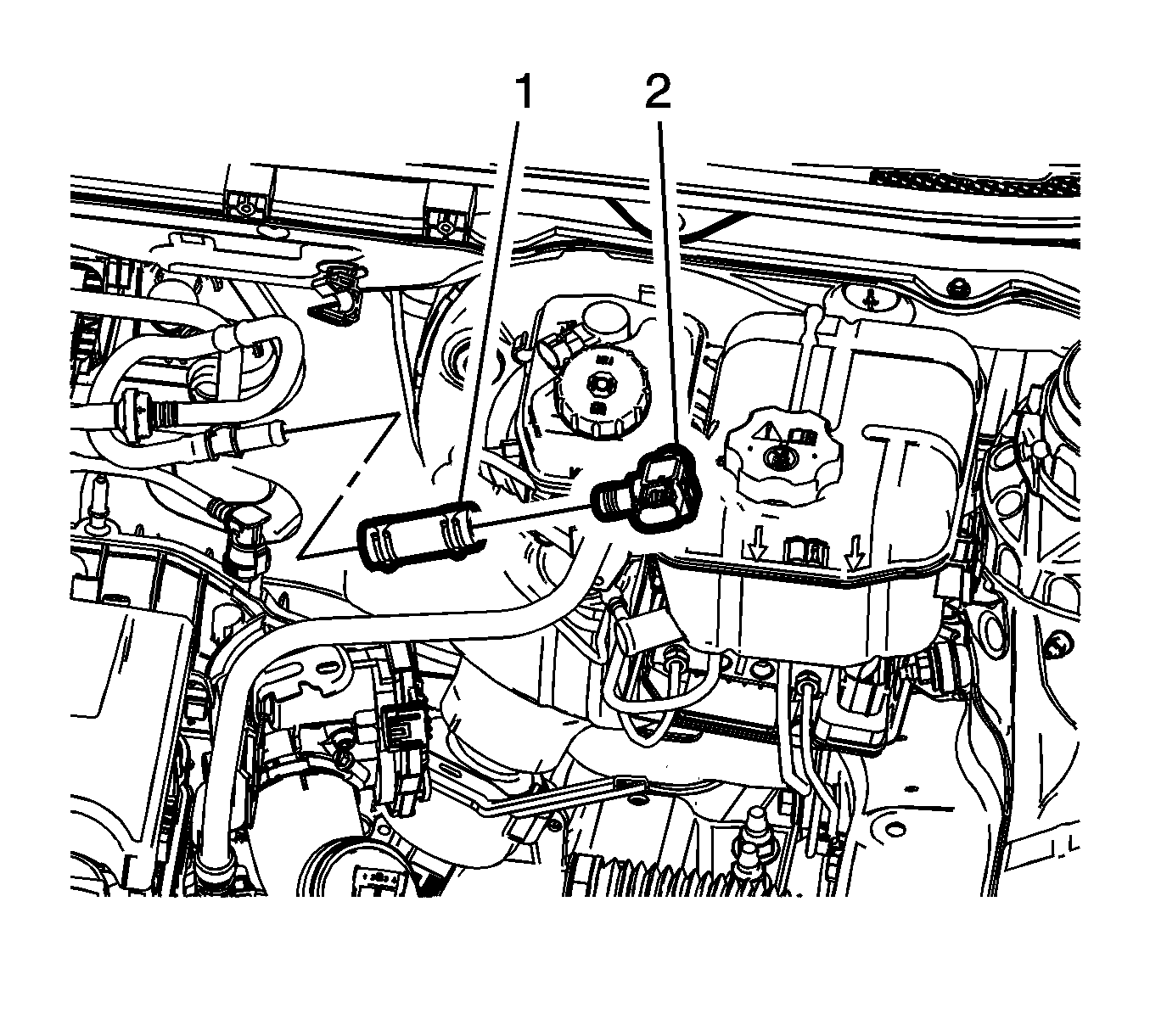

    Fig 1: Power Brake Booster Vacuum Rear Pipe Hose
    GM2607860Courtesy of GENERAL MOTORS COMPANY
  1. Install the power brake booster vacuum rear pipe hose (1) to the power brake booster vacuum rear pipe and secure the clamp.
  2. Install the power brake booster vacuum sensor (2) to the power brake booster vacuum rear pipe and secure the clamp.

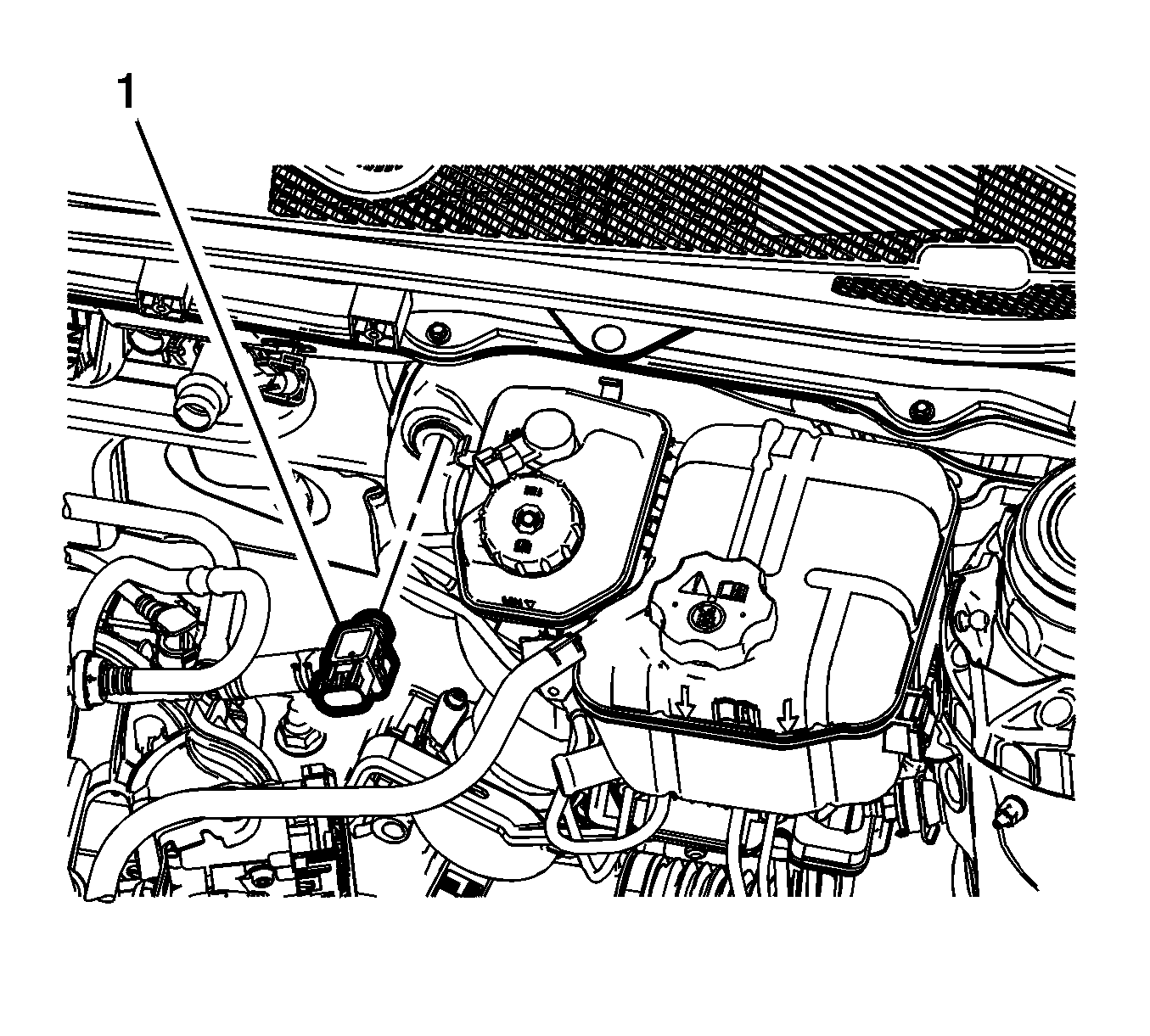

    3. Fig 2: Power Brake Booster Vacuum Sensor
    GM2607858Courtesy of GENERAL MOTORS COMPANY
  3. Install the power brake booster vacuum sensor (1) to the power vacuum brake booster.

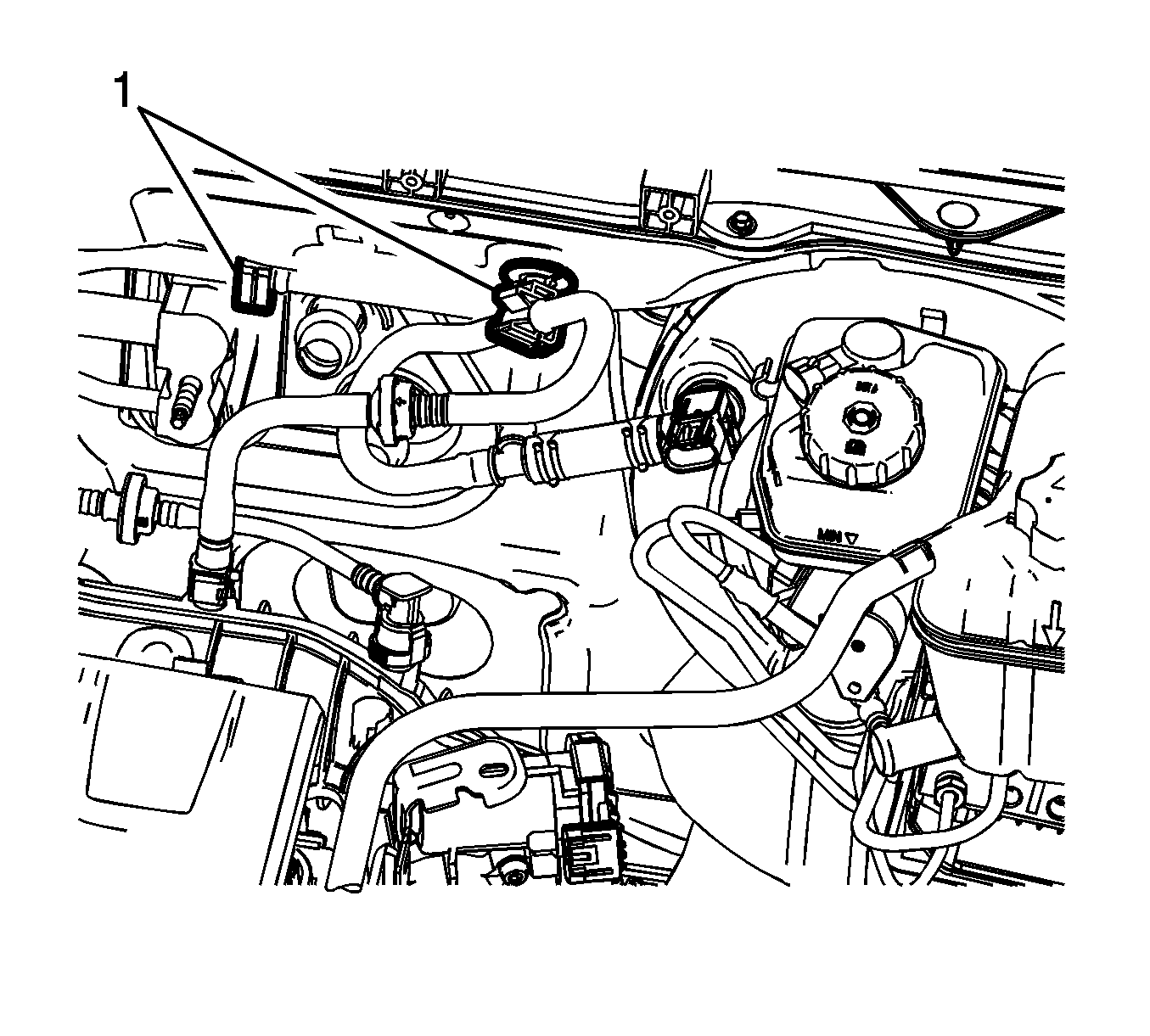

    4. Fig 3: Power Brake Booster Vacuum Rear Pipe
    GM2607855Courtesy of GENERAL MOTORS COMPANY
  4. Install the power brake booster vacuum rear pipe to the clips (1) on the vehicle front of dash.
  5. Connect the power brake booster vacuum sensor electrical connector.
