Installation Procedure

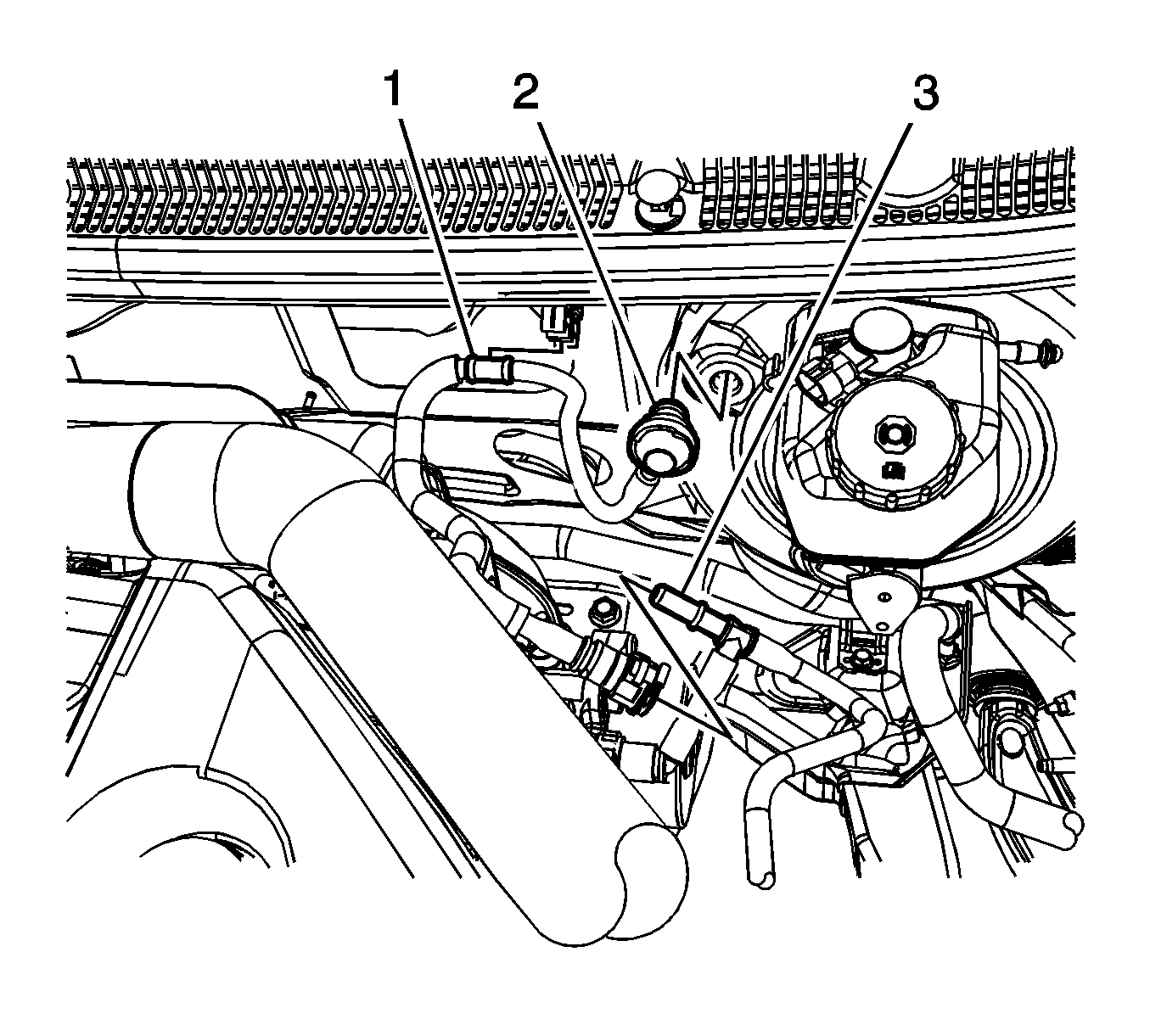

    Fig 1: Power Brake Booster Vacuum Rear Pipe Vacuum Check Valve
    GM2291885Courtesy of GENERAL MOTORS COMPANY
  1. Install the power brake booster vacuum rear pipe (1) to the retainer.
  2. Install the power brake booster vacuum rear pipe vacuum check valve (2) to the power vacuum brake booster.
  3. Connect the power brake booster vacuum rear pipe quick connect to the power brake booster vacuum pipe (3) .
