Installation Procedure

    Fig 1: Power Brake Booster Vacuum Rear Pipe Quick Connect And Retainer
    GM2213625Courtesy of GENERAL MOTORS COMPANY
  1. Position the power brake booster vacuum rear pipe to the vehicle.
  2. Install the power brake booster vacuum rear pipe retainer (1) to the power brake booster pump bracket.
  3. Connect the power brake booster vacuum rear pipe quick connect (2) .
  4. Install the right front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement .

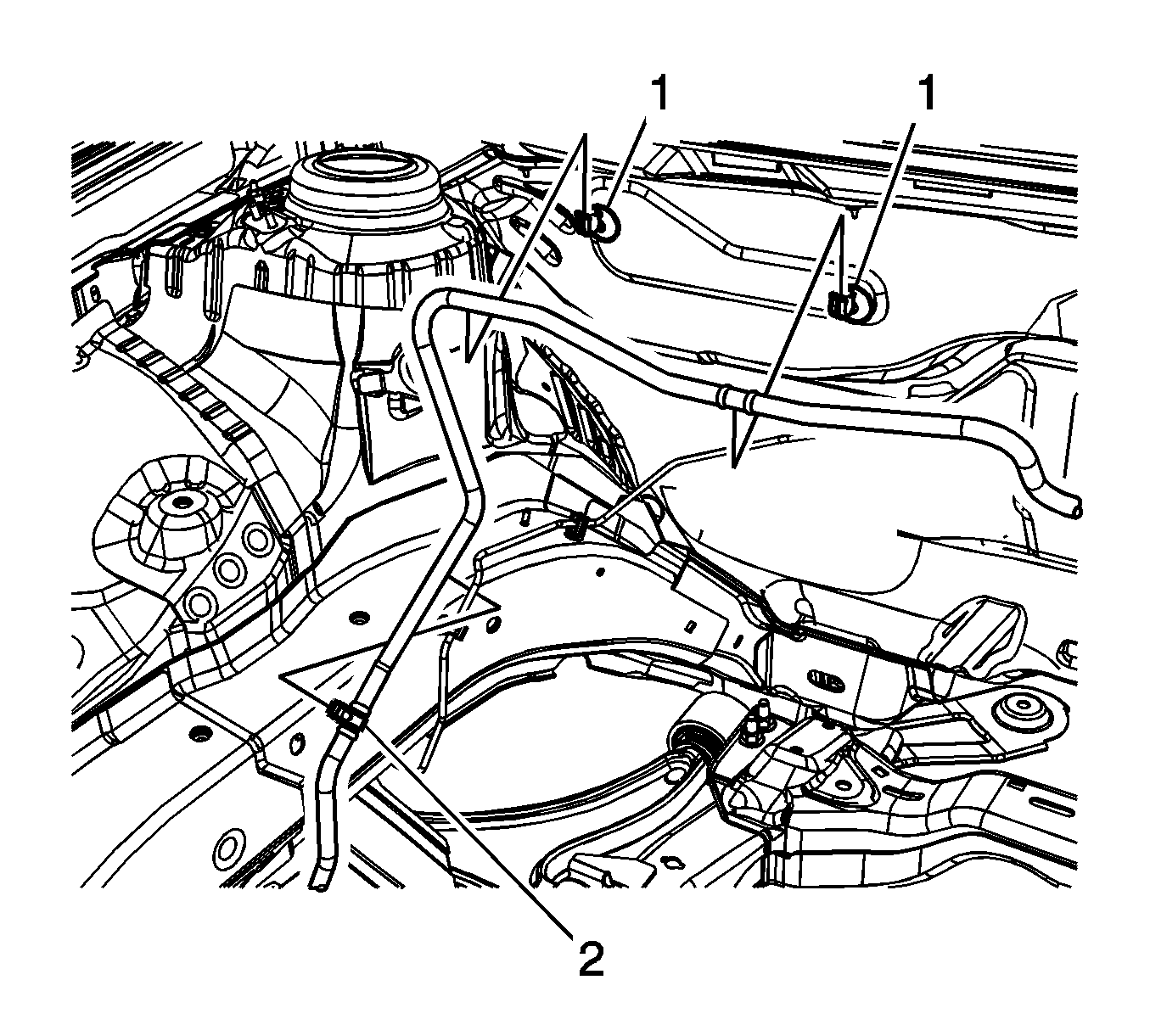

    5. Fig 2: Power Brake Booster Vacuum Rear Pipe Retainers
    GM2322744Courtesy of GENERAL MOTORS COMPANY
  5. Install the power brake booster vacuum rear pipe to the retainers (1) on the dash panel.
  6. Install the power brake booster vacuum rear pipe to the retainer (2) on the right front brake pipe.

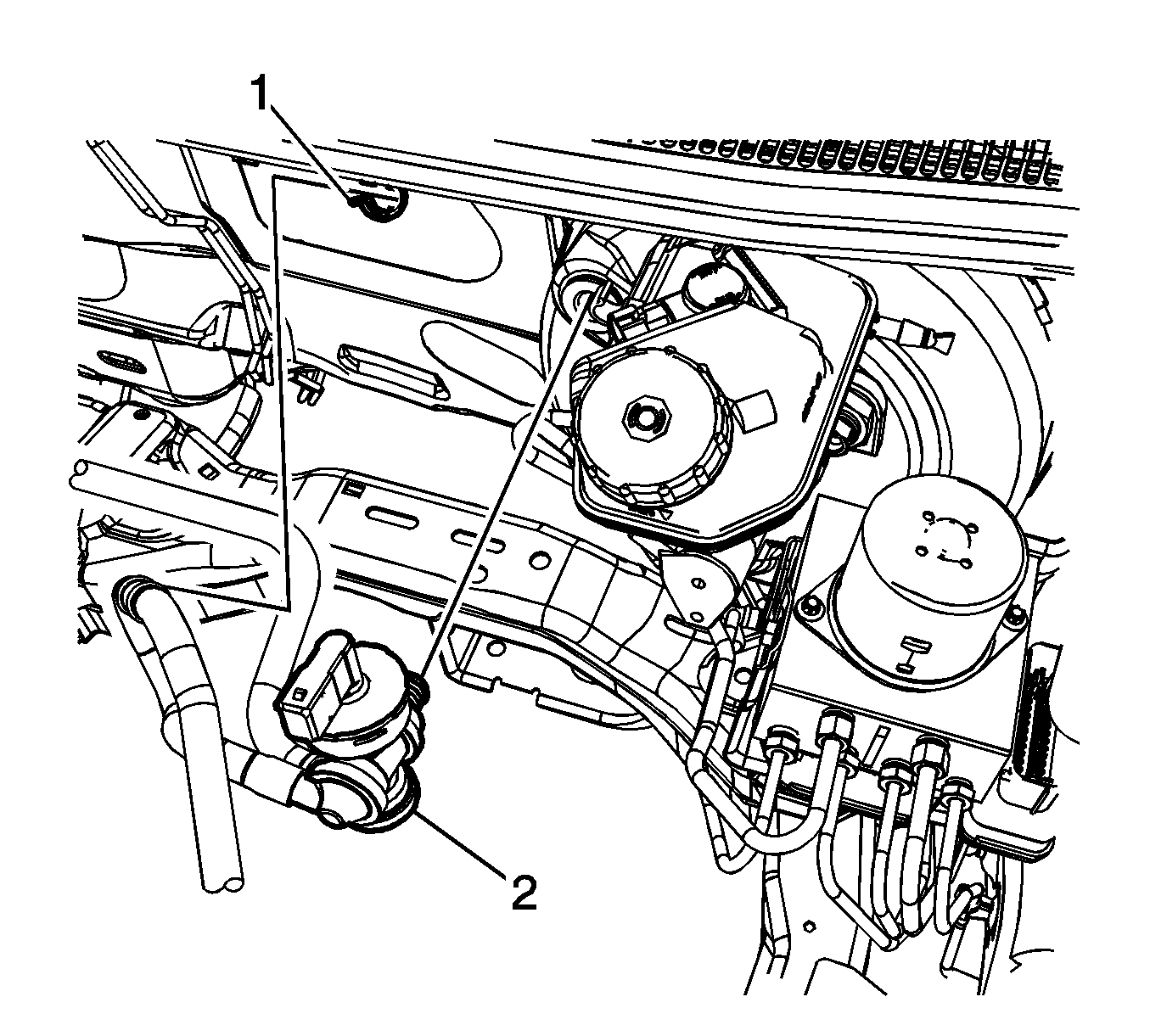

    7. Fig 3: Power Brake Booster Vacuum Rear Pipe Retainer & Sensor
    GM2213620Courtesy of GENERAL MOTORS COMPANY
  7. Install the power brake booster vacuum rear pipe to the retainer (1) on the dash panel.
  8. Install the power brake booster vacuum rear pipe vacuum sensor and check valve (2) to the power vacuum brake booster.
  9. Connect the power brake booster vacuum sensor electrical connector.
    10. Fig 4: Power Brake Booster Vacuum Pipe Quick Connect
    GM2321600Courtesy of GENERAL MOTORS COMPANY
  10. Connect the power brake booster vacuum pipe quick connect (1) .
