Installation Procedure

  1. Install the power brake booster pump seal to the power brake booster pump.

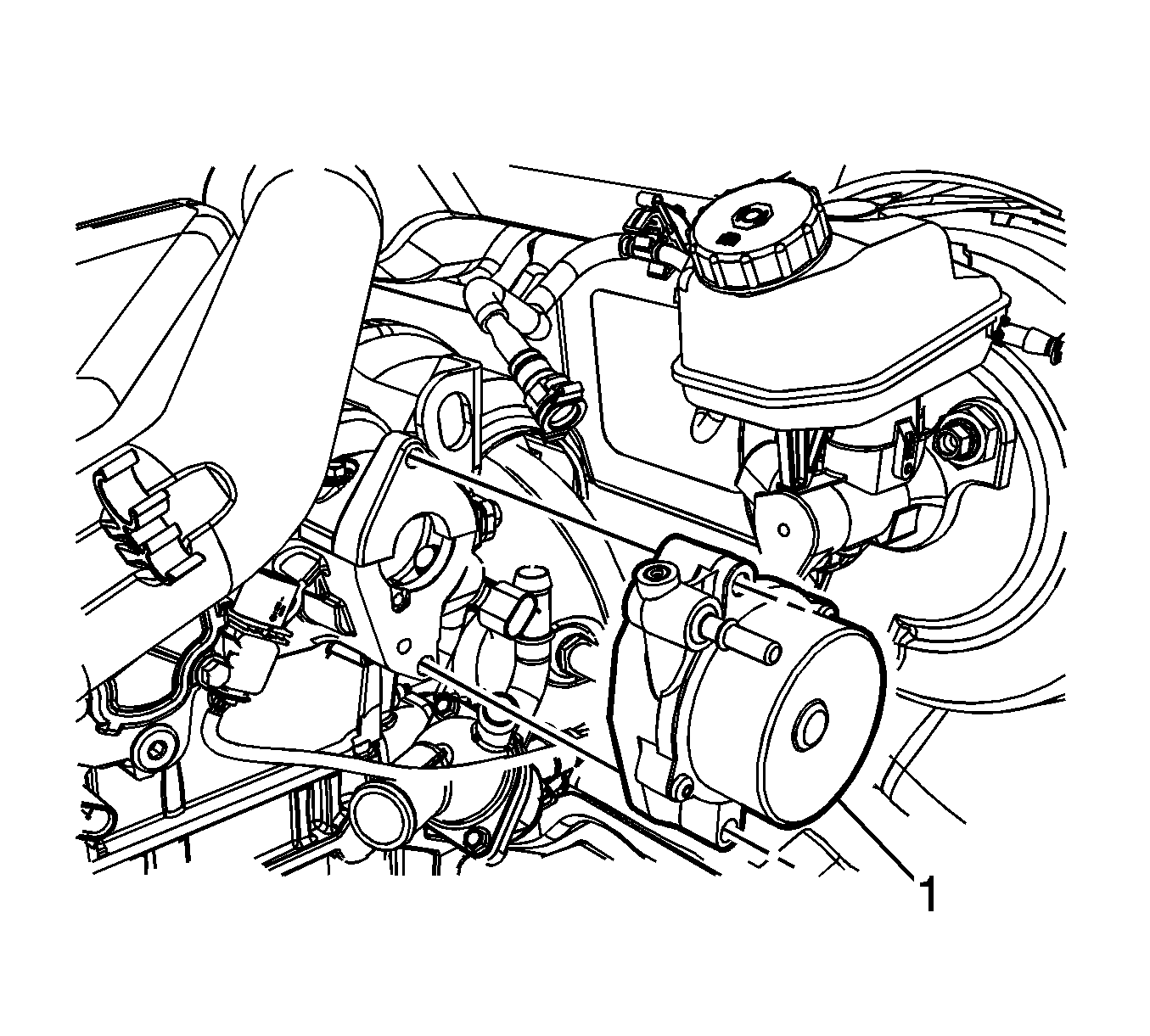

    2. Fig 1: Power Brake Booster Pump
    GM2291887Courtesy of GENERAL MOTORS COMPANY
  2. Align the power brake booster pump drive to the camshaft and install the power brake booster pump (1) .

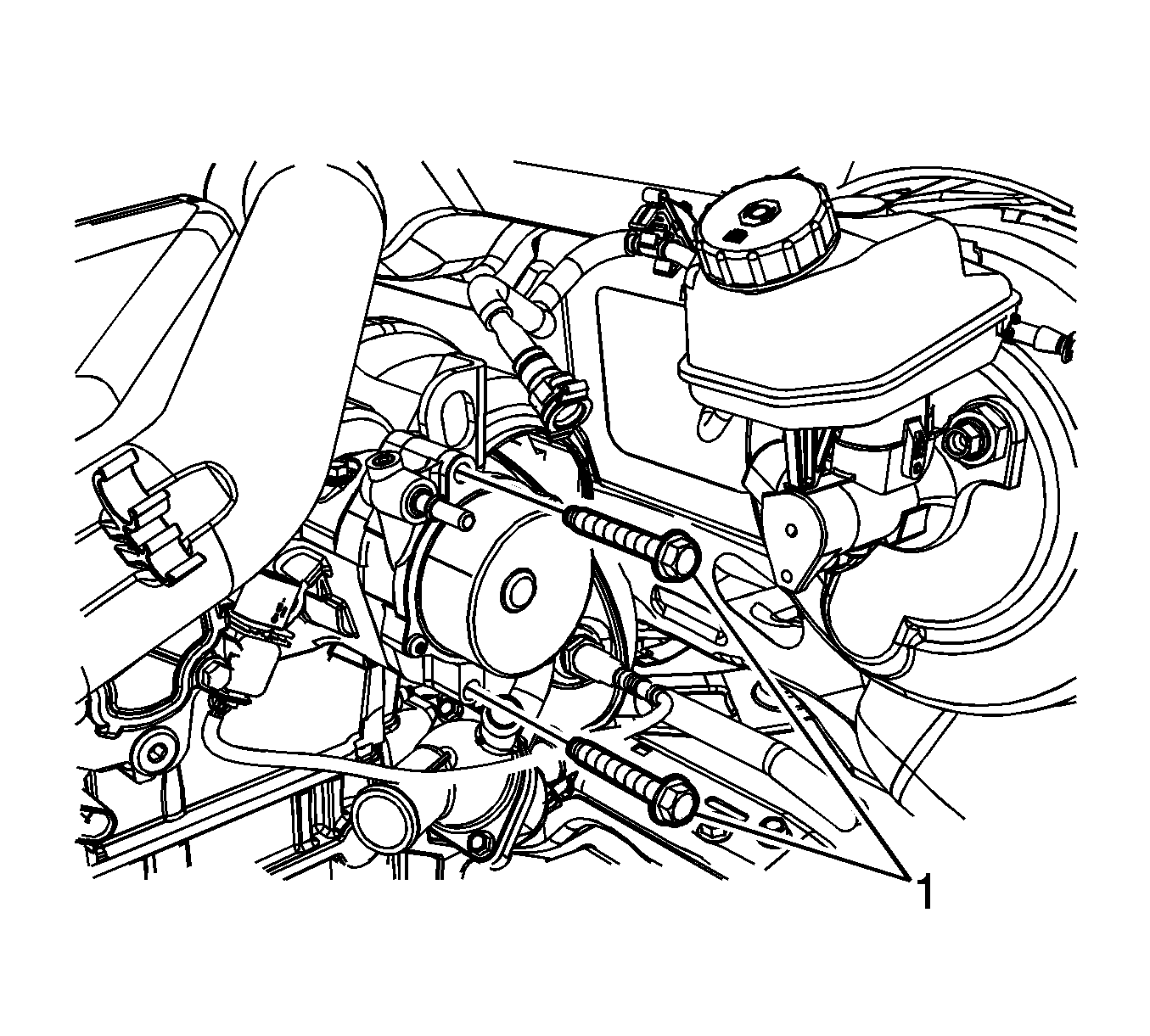

    3. Fig 2: Power Brake Booster Pump Bolts
    GM2291886Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the power brake booster pump bolts (1) and tighten to 25 N.m (18 lb ft) .

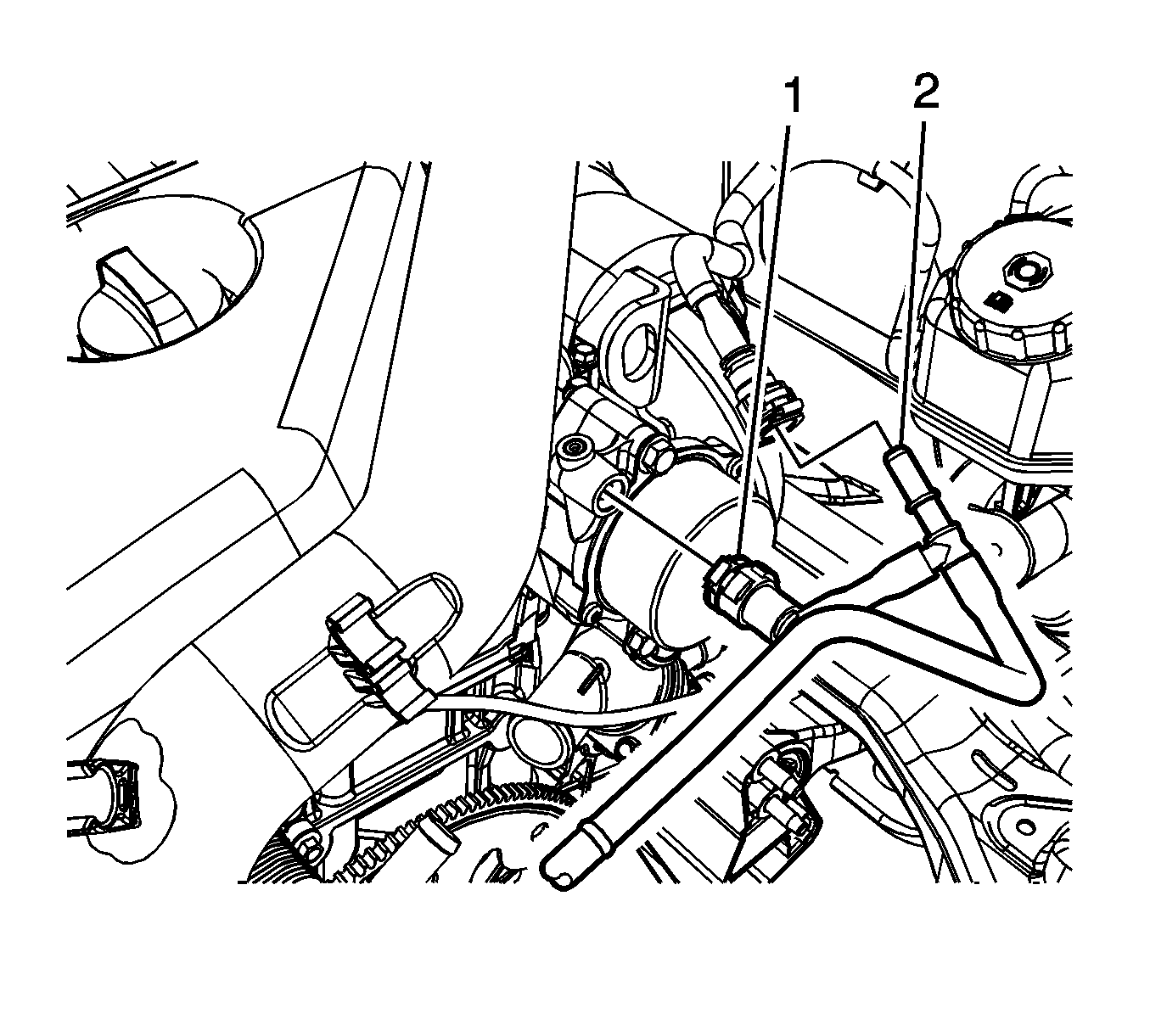

    4. Fig 3: Power Brake Booster Vacuum Pipe Quick Connection
    GM2291882Courtesy of GENERAL MOTORS COMPANY
  4. Connect the power brake booster vacuum pipe quick connect (1) to the power brake booster pump.
  5. Connect the power brake booster vacuum pipe (2) to the power brake booster vacuum rear pipe quick connect.
  6. Install the power brake booster vacuum pipe to the retainer on the charge air cooler intake pipe.
