Power Brake Booster Pump Replacement (LEA, LUK)

Preliminary Procedure

1. With the engine OFF, apply the brake pedal several times until the brake pedal becomes firm to deplete the vacuum brake booster vacuum reserve.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
3. Remove the right front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
4. Remove the right front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement .

Procedure

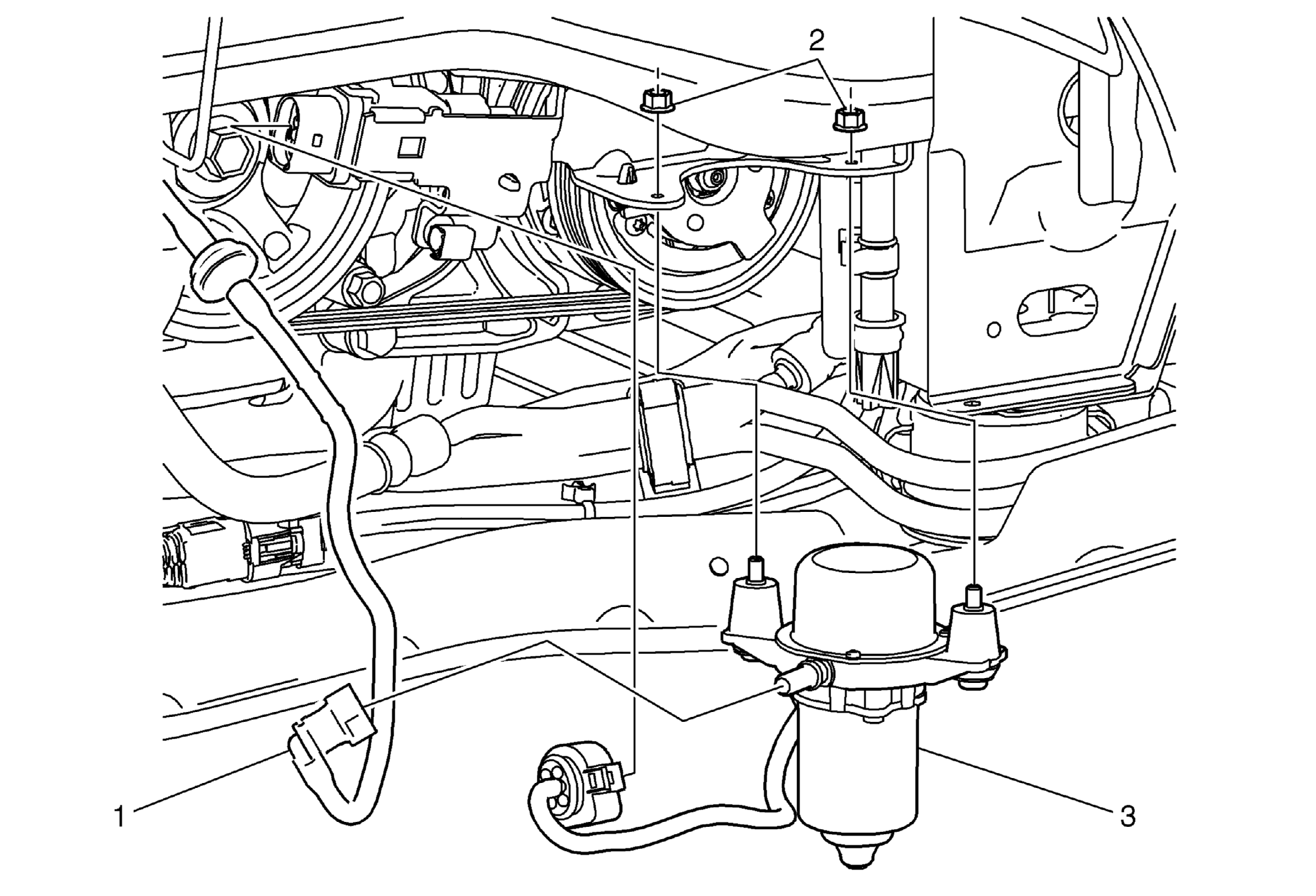

1. Release the power brake booster vacuum pipe quick connect.
2. Disconnect the power brake booster pump electrical connector.
