Installation Procedure

  1. Lubricate the master cylinder reservoir seals with GM approved brake fluid from a clean, sealed, brake fluid container.

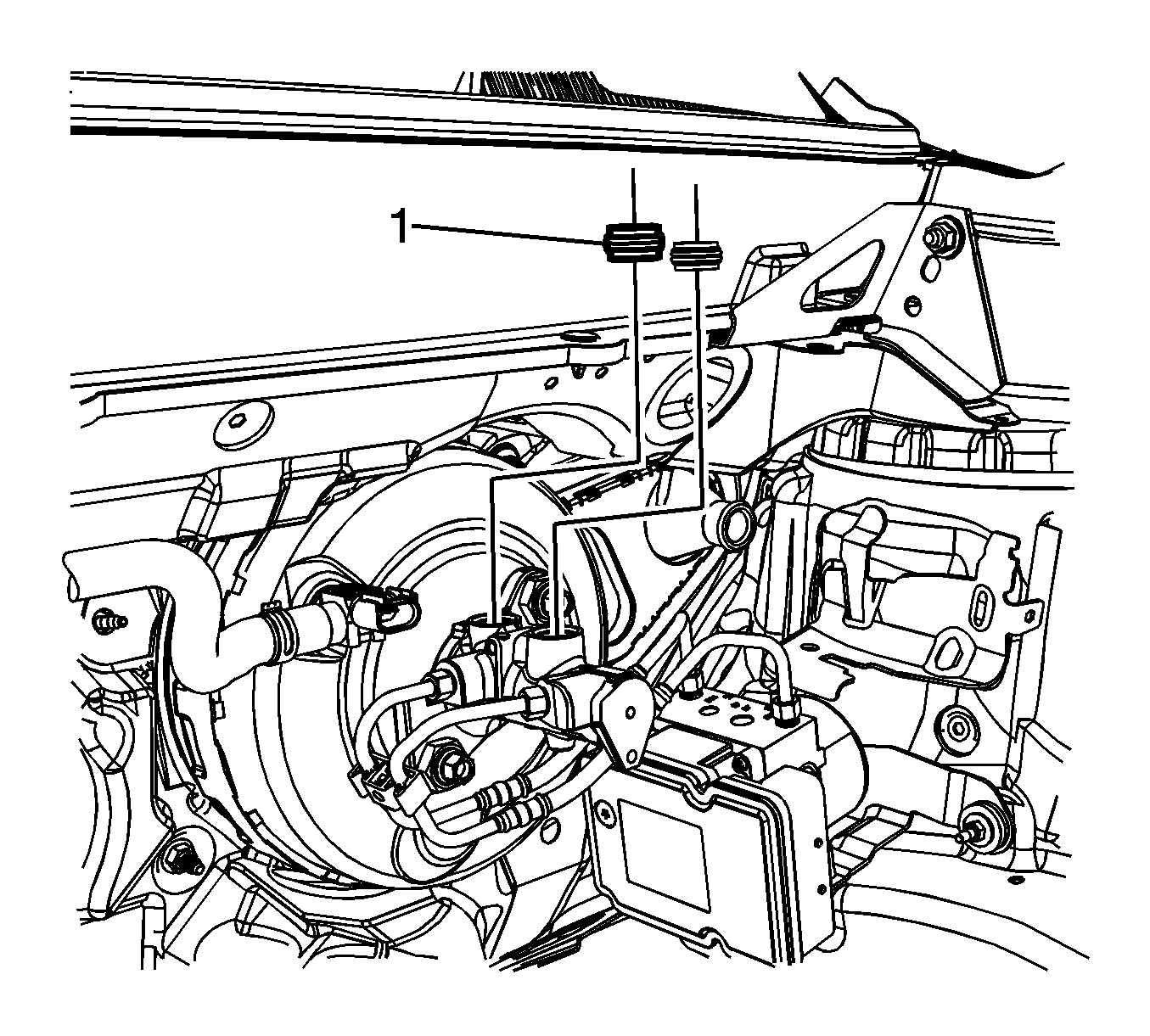

    2. Fig 1: Master Cylinder Reservoir Seals
    GM2219328Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the reservoir seals are fully seated in the master cylinder.

  2. Install the 2 master cylinder reservoir seals (1) .

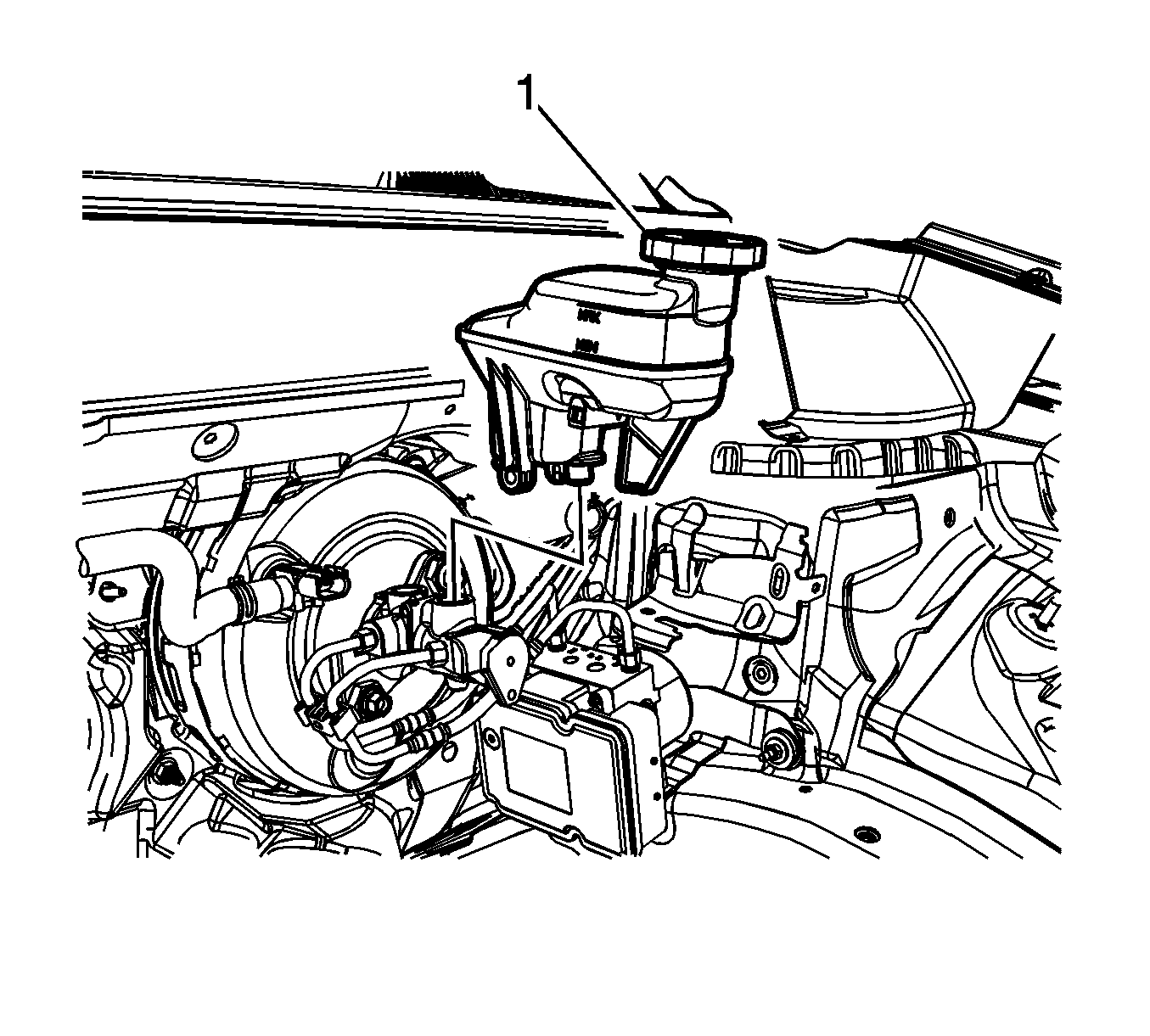

    3. Fig 2: Master Cylinder Reservoir
    GM2219324Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the master cylinder reservoir is fully seated in the master cylinder.

  3. Firmly and squarely press the master cylinder reservoir (1) into the master cylinder.

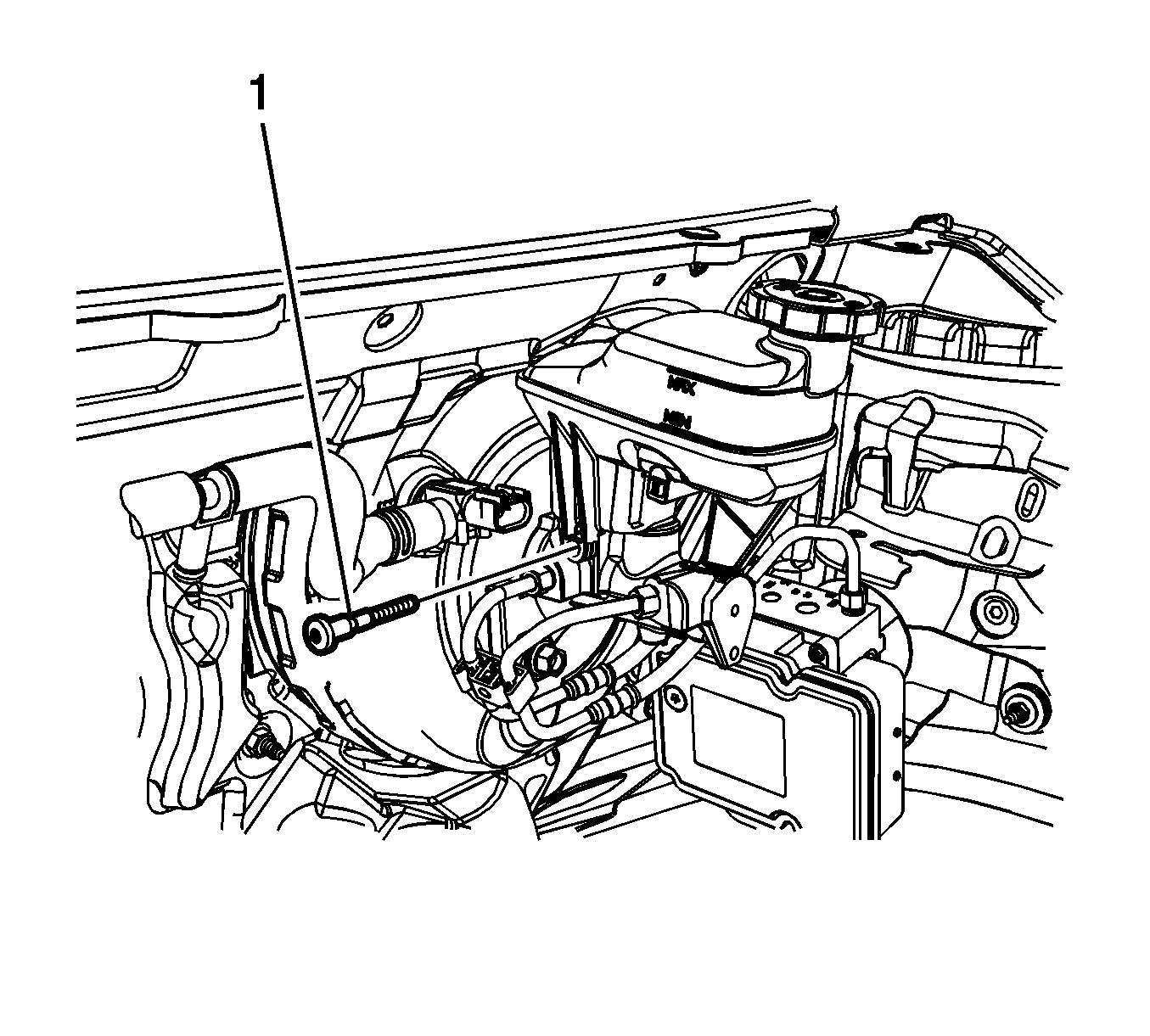

    4. Fig 3: Master Cylinder Reservoir Bolt
    GM2219320Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the master cylinder reservoir bolt (1) and tighten to 4 (35 lb in) .
  5. If equipped, connect the clutch master cylinder reservoir hose.
  6. Connect the brake fluid level indicator switch electrical connector.
  7. Fill the master cylinder reservoir. Refer to Master Cylinder Reservoir Filling .
