Installation Procedure
- If installing a new master cylinder, bench bleed the master cylinder. Refer to Master Cylinder Bench Bleeding .

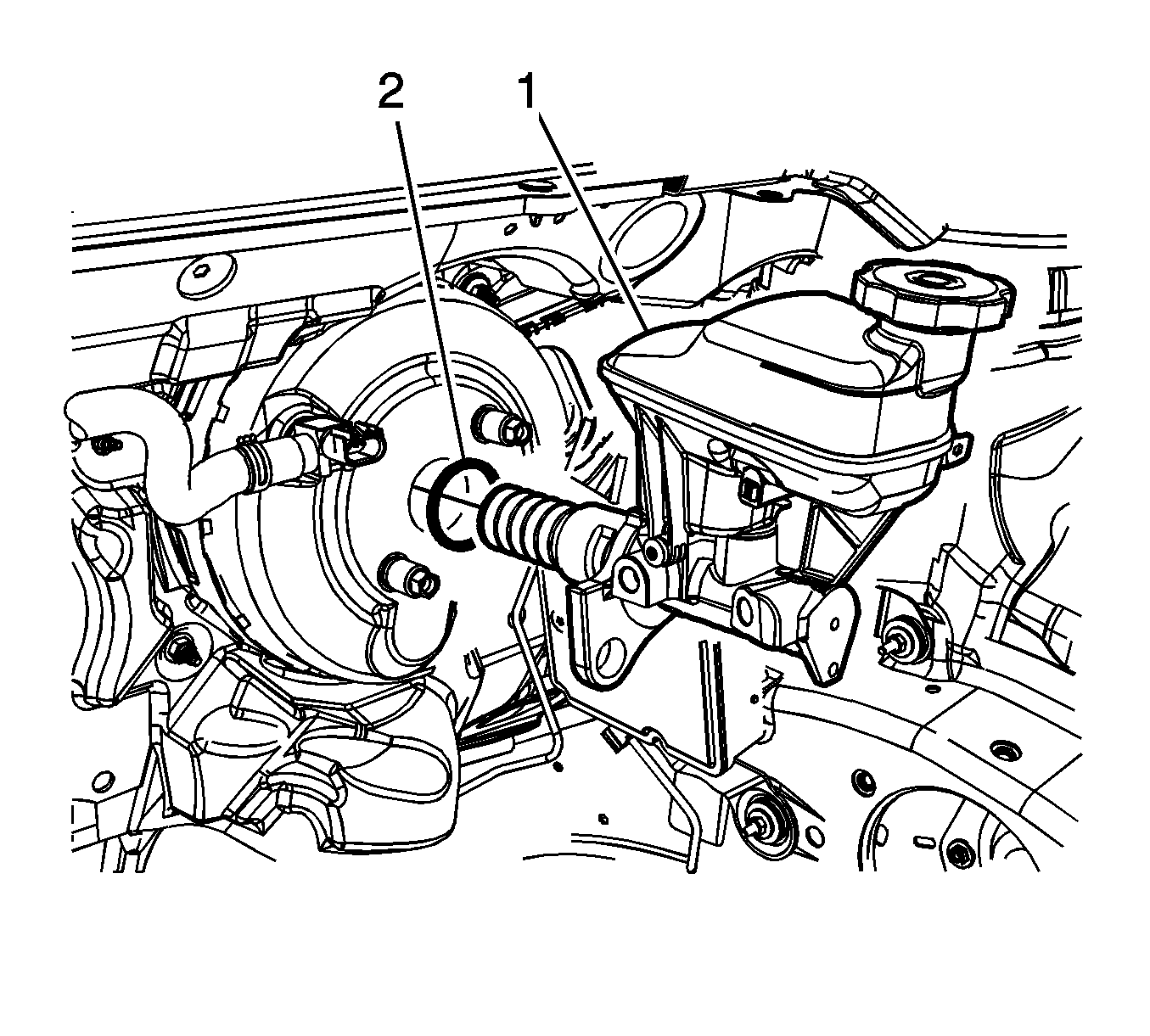

- Install the master cylinder (1) and master cylinder O-ring seal (2) .

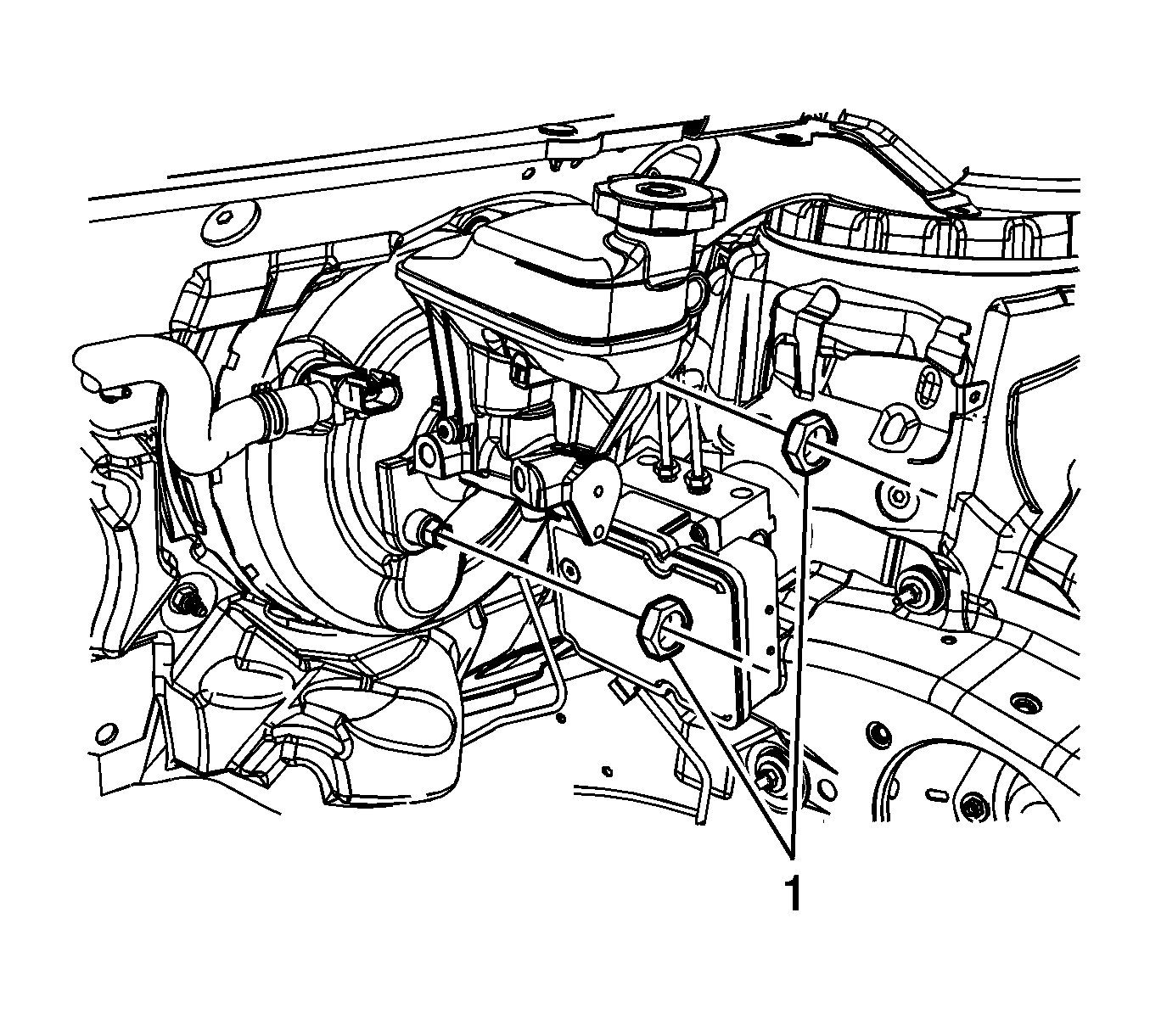

- Install the master cylinder nuts (1) and tighten to 50 N.m (37 lb ft) .

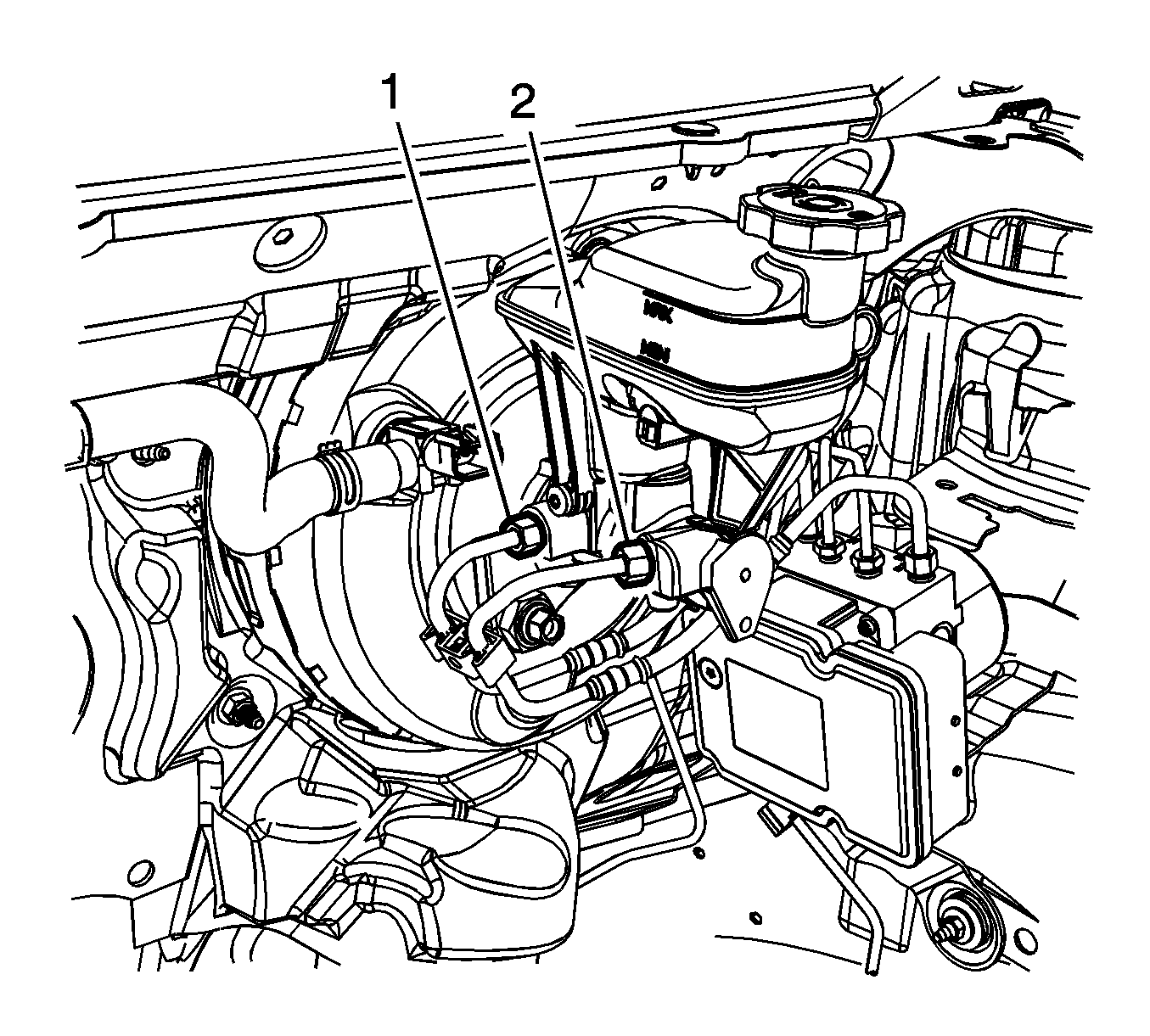

- Connect the master cylinder primary brake pipe fitting (1) and tighten to 18 N.m (13 lb ft) .
- Connect the master cylinder secondary brake pipe fitting (2) and tighten to 18 N.m (13 lb ft) .
- Connect the brake fluid level indicator switch electrical connector.
- If equipped with the manual transmission, connect the clutch master cylinder reservoir hose. Refer to Clutch Master Cylinder Reservoir Hose Replacement .
- Install the radiator surge tank. Refer to Radiator Surge Tank Replacement (LEA, LUK) .
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) .
- Install the intake manifold cover, if removed. Refer to Intake Manifold Cover Replacement .
NOTE:
Ensure the O-ring seal is properly seated in the groove in the master cylinder body and is not distorted.
CAUTION:
Refer to Fastener Caution .
