Front Brake Pipe Replacement - Left Side

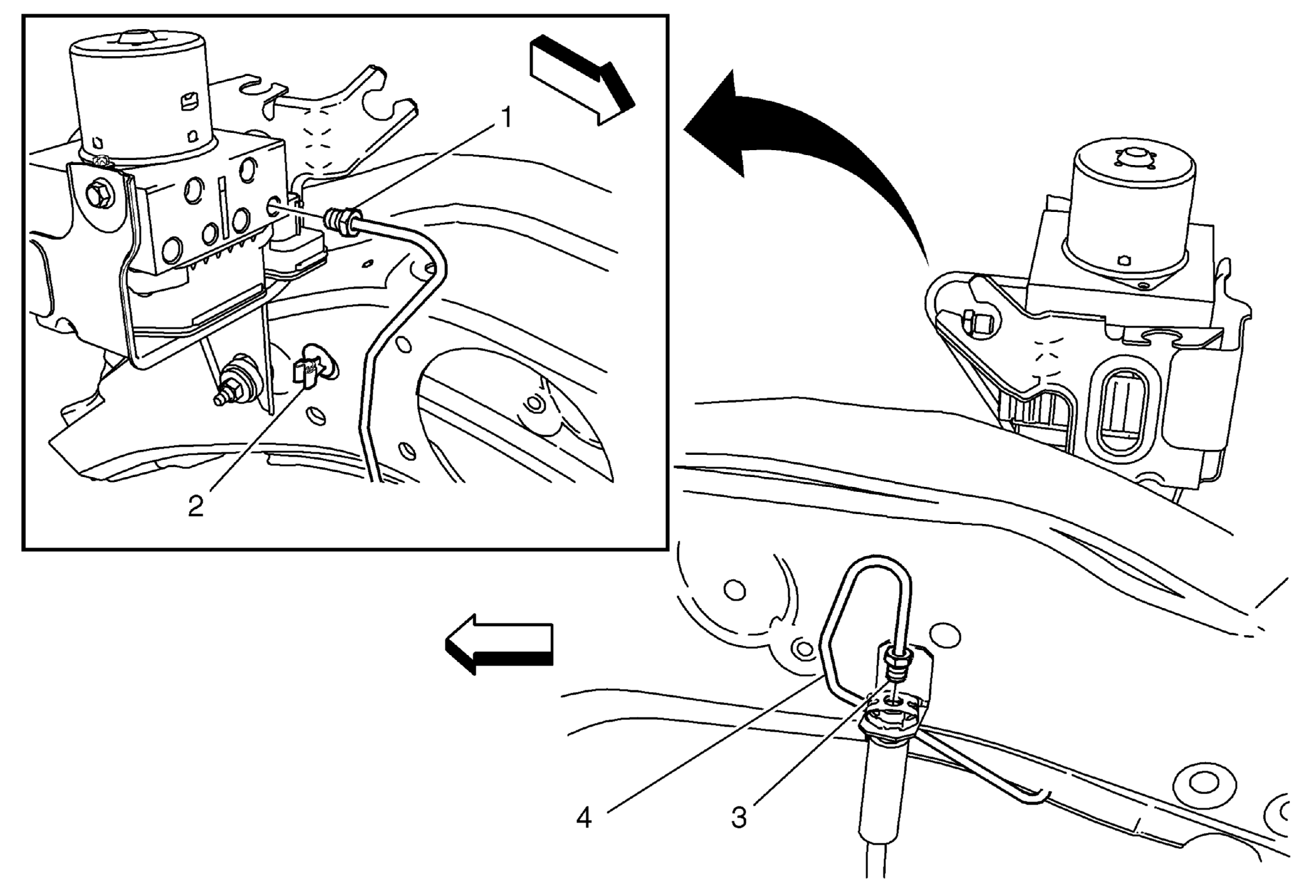

Fig 1: Front Brake Pipe - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the surge tank. Refer to Radiator Surge Tank Replacement (LEA, LUK) .
1	Front Brake Pipe Fitting CAUTION: Refer to Fastener Caution . Procedure Cap the brake pipe fitting to prevent brake fluid loss and contamination. Tighten 18 N.m (13 lb ft)
2	Brake Pipe Clip
3	Front Brake Pipe Fitting Procedure Cap the brake pipe fitting to prevent brake fluid loss and contamination. Tighten 18 N.m (13 lb ft)
4	Front Brake Pipe Procedure Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) .
