Brake Pressure Modulator Valve Primary Pipe Replacement (Left Hand Drive)

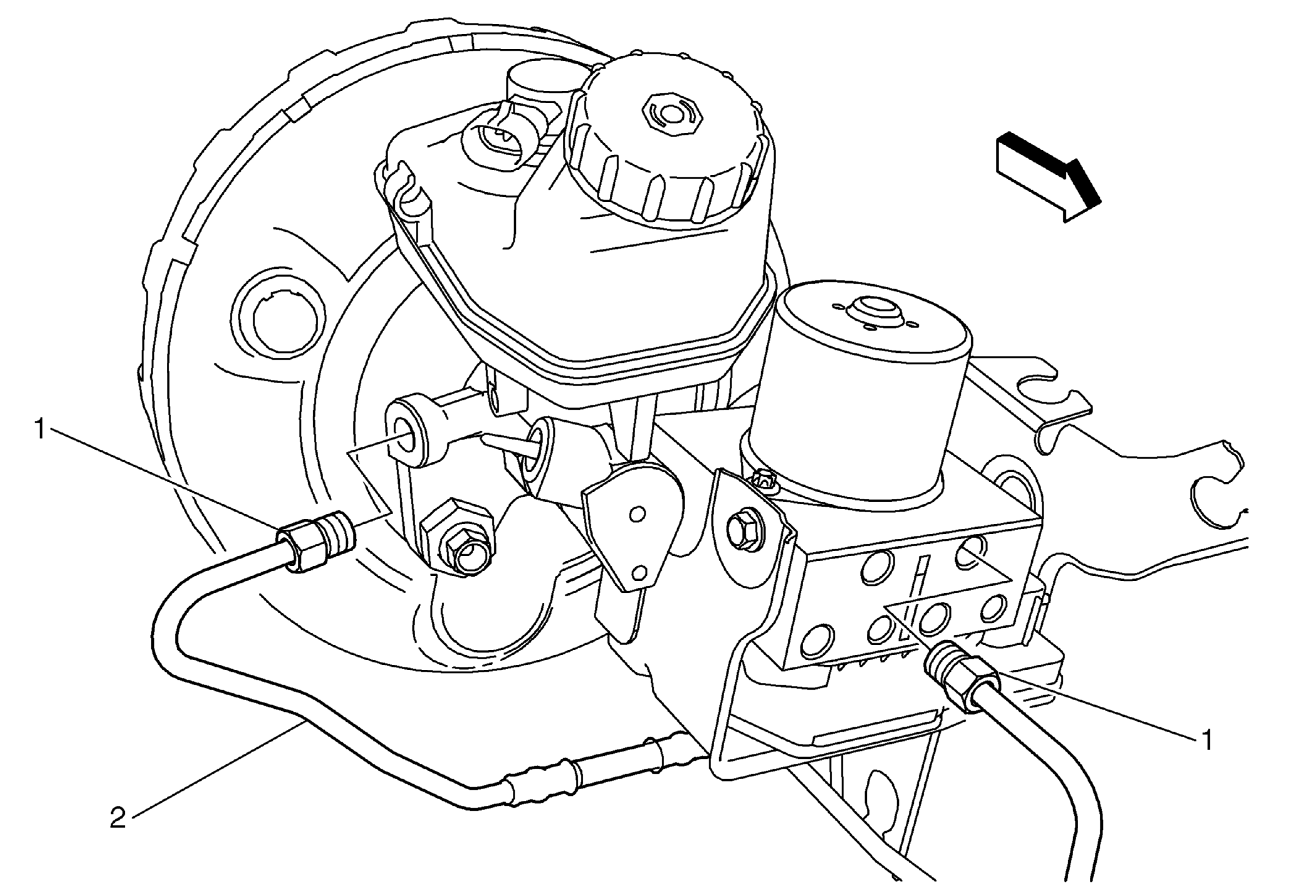

Fig 1: Brake Pressure Modulator Valve Primary Pipe (Left Hand Drive)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Fluid Irritant Warning . Preliminary Procedures Remove the surge tank. Refer to Radiator Surge Tank Replacement (LEA, LUK) .
1	Brake Pipe Fitting CAUTION: Refer to Fastener Caution . Procedure  Cap the brake pipe fitting to prevent brake fluid loss and contamination. Tighten  18 N.m (13 lb ft)
2	Brake Pressure Modulator Valve Primary Pipe Procedure  Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual)  .
