Brake Fluid Level Indicator Switch Replacement
Brake Fluid Level Indicator Switch Replacement

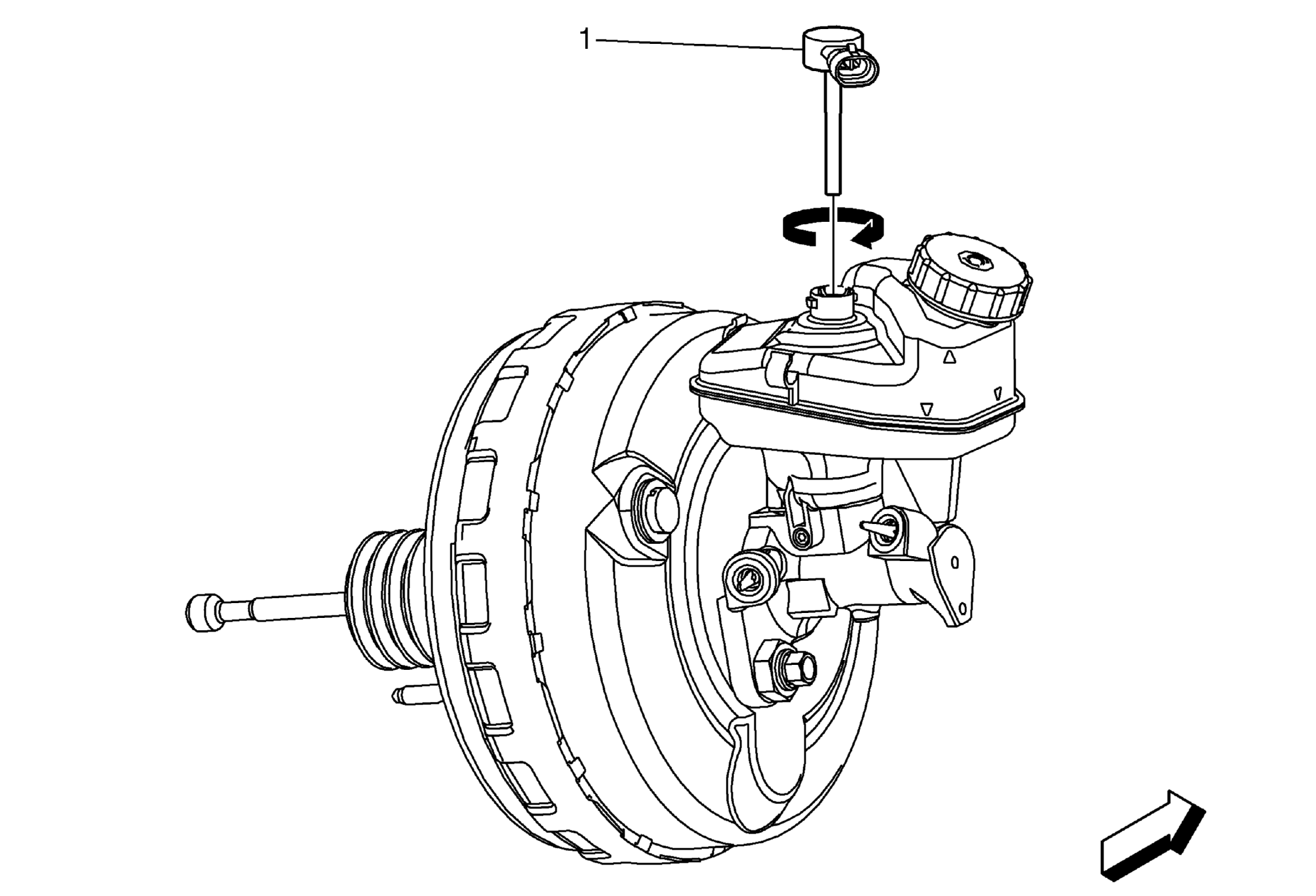

Fig 1: Brake Fluid Level Indicator Switch
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Brake Fluid Level Indicator Switch
Procedure
Disconnect the electrical connector.
Turn the indicator switch clockwise to release.
