Installation Procedure

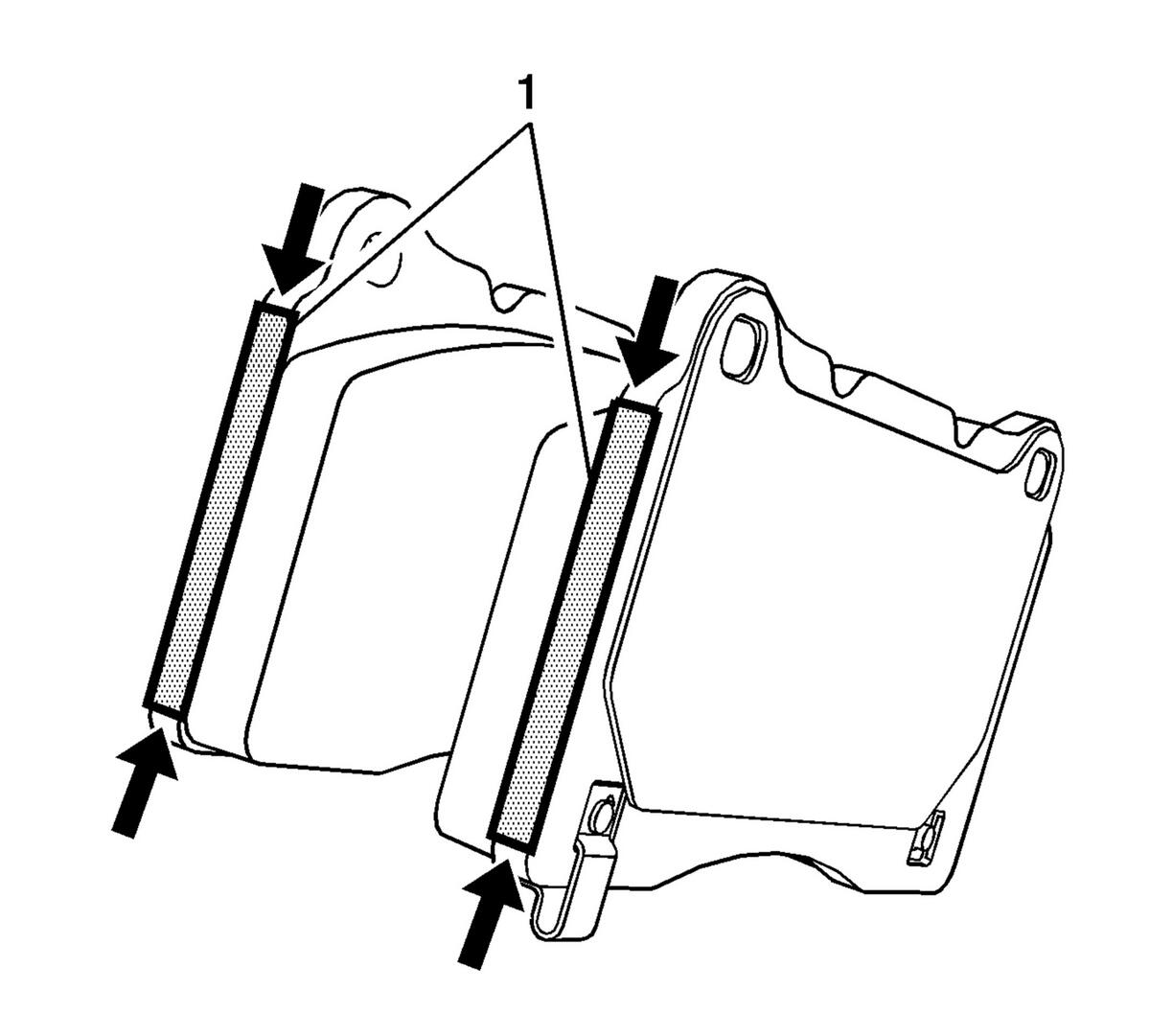

- Apply approximately 0.09-0.15g (0.003-0.005oz) of anti-seize lubricant to each end of the disc brake pad abutments (1) which contact the brake caliper. Refer to Adhesives, Fluids, Lubricants, and Sealers .
- Inspect the brake caliper pins and brake pad springs for damage or excessive corrosion and replace, if necessary.

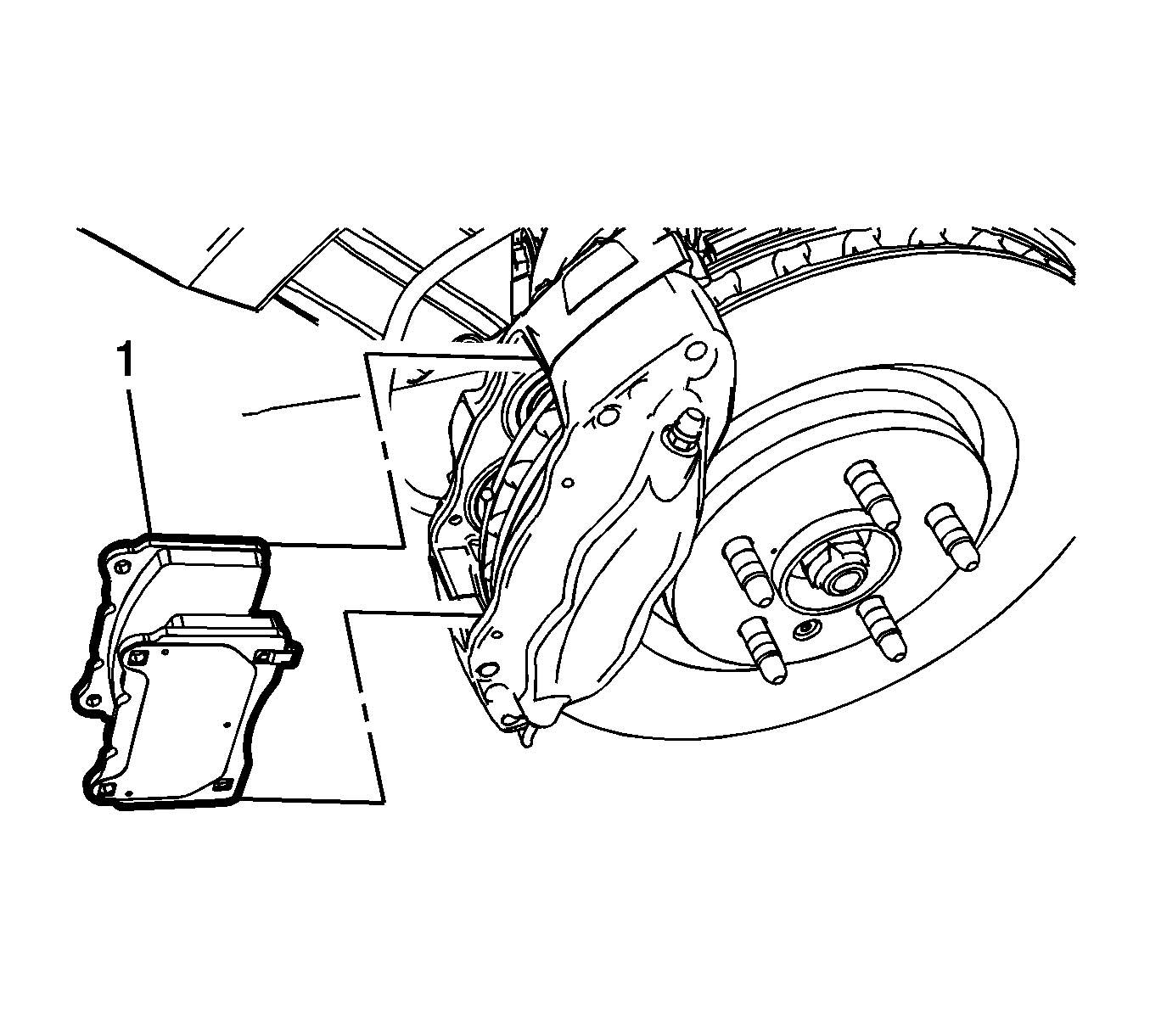

- Install the brake pads (1).

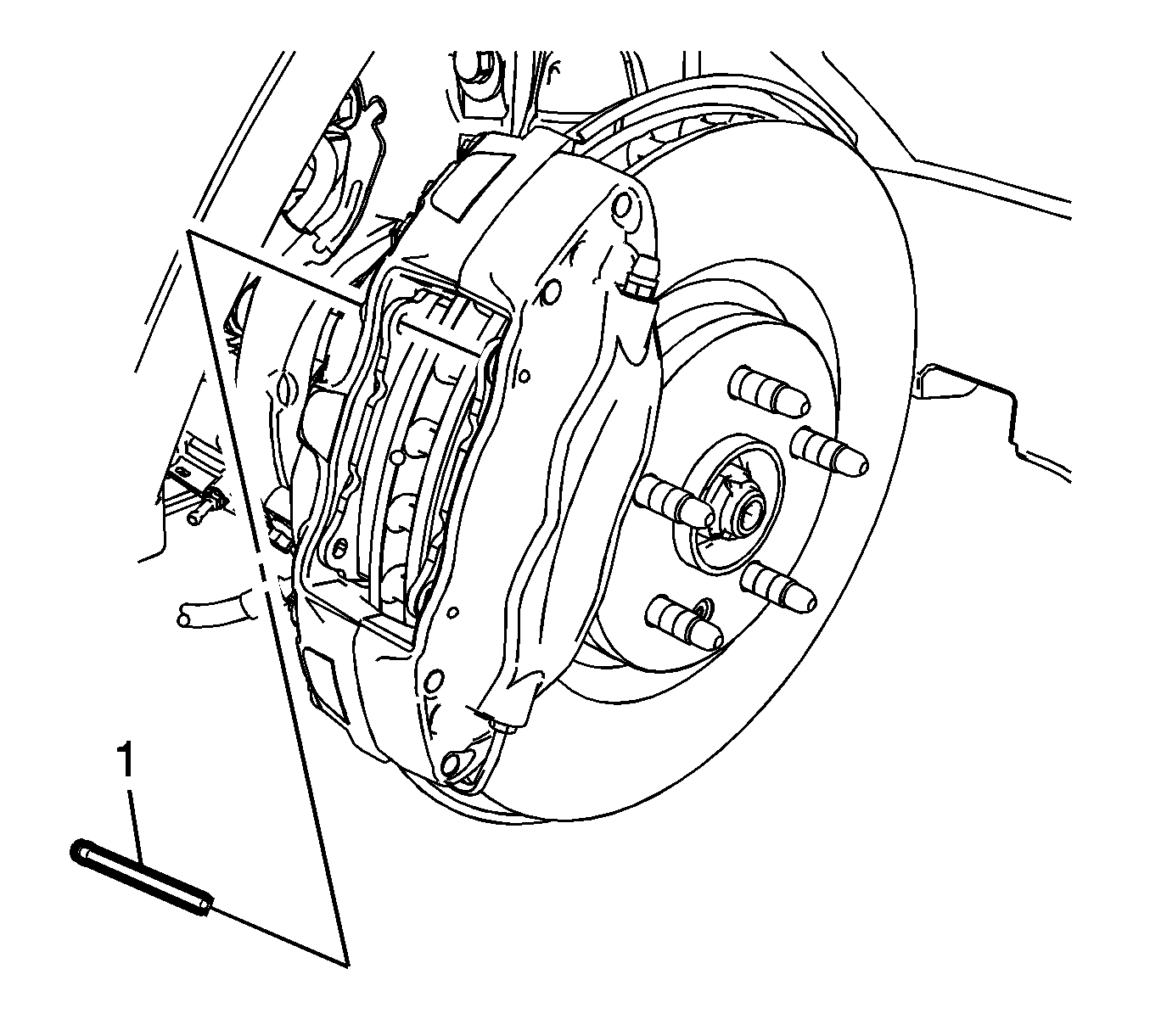

- Carefully drive the upper brake caliper pin (1) into the brake caliper.
- Ensure the brake caliper pin is fully seated in the brake caliper.

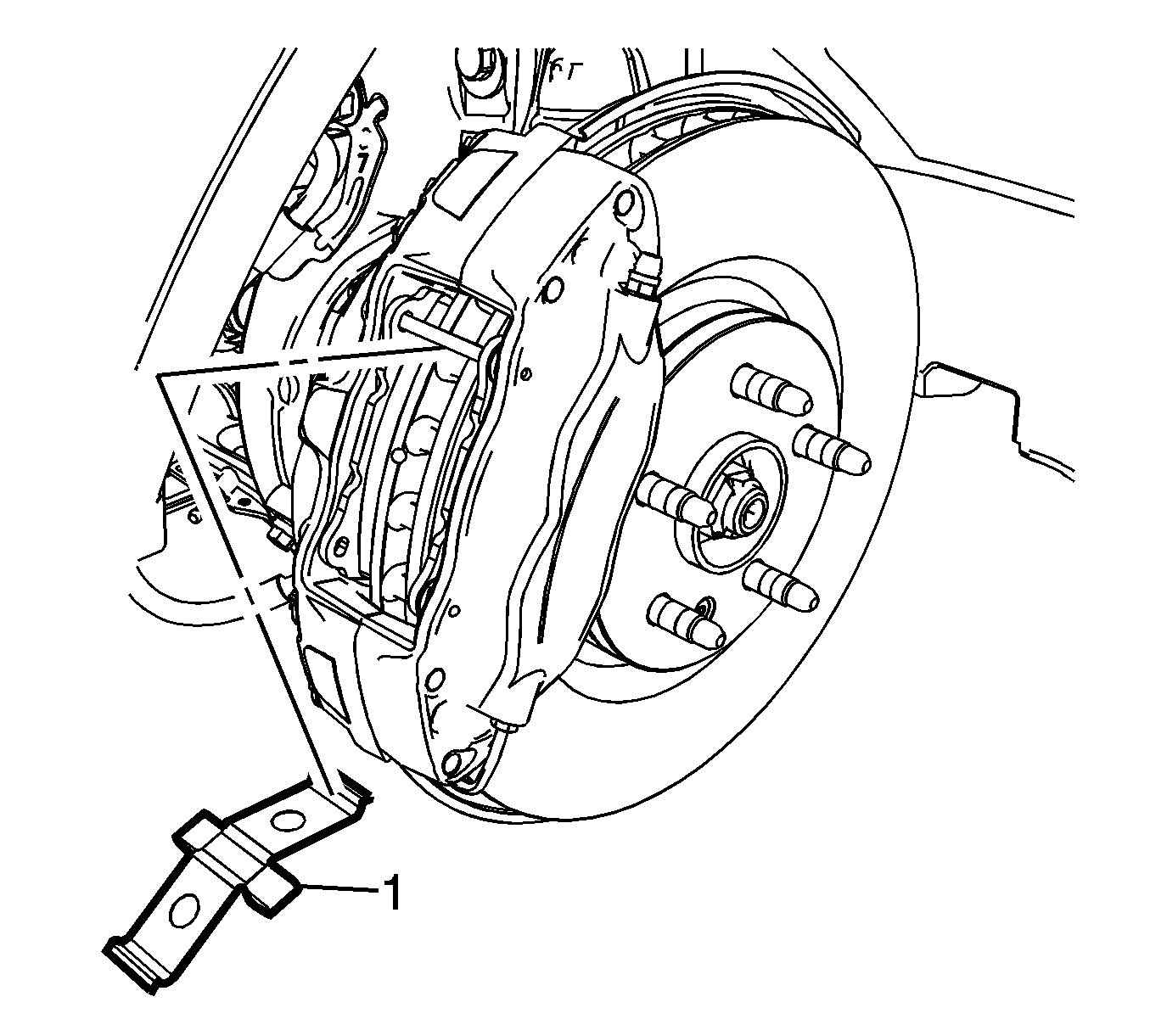

- Install the brake pad spring (1).

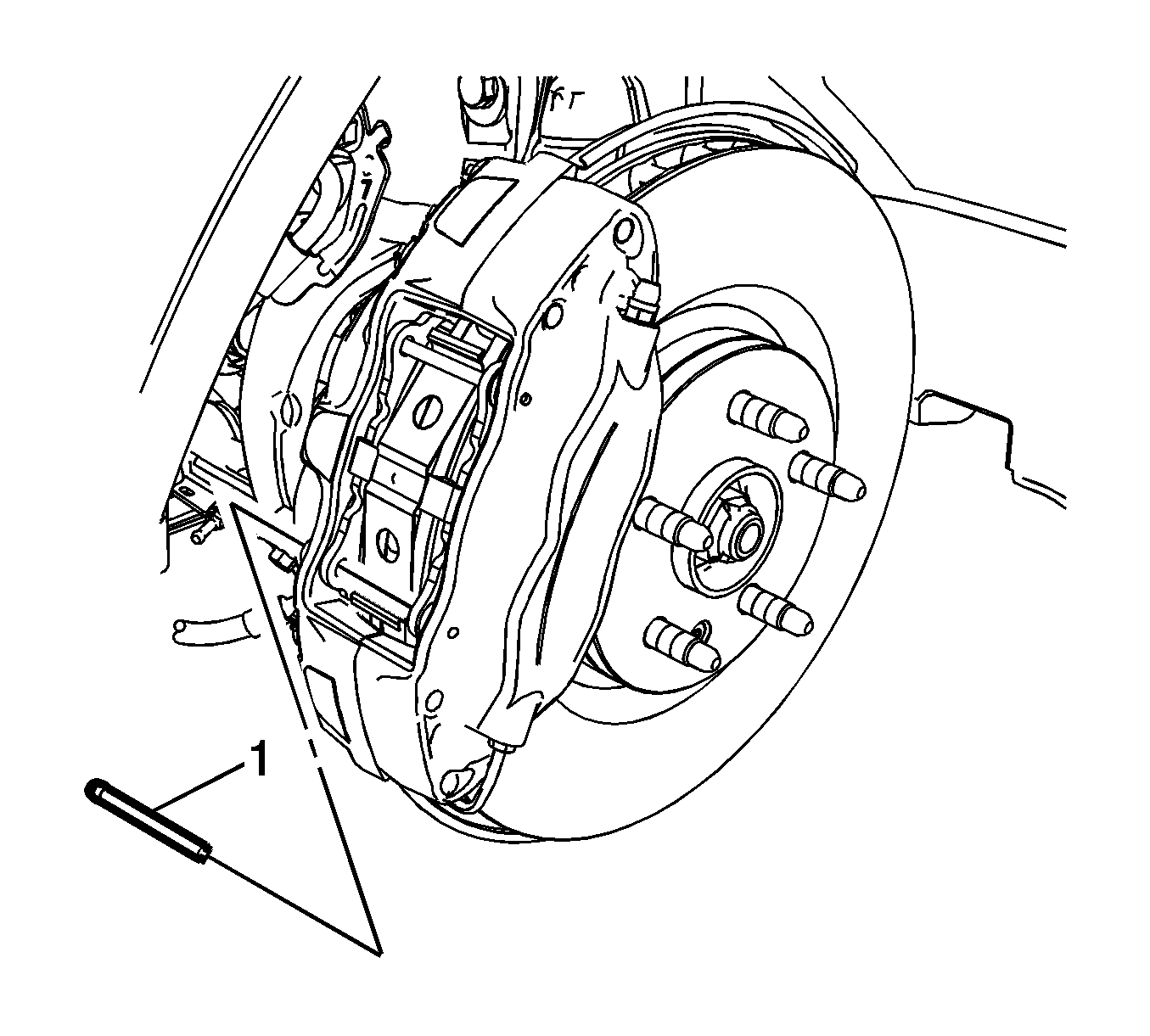

- Hold the end of the brake pad spring down and carefully drive the lower brake caliper pin (1) into the brake caliper.
- Ensure the brake caliper pin is fully seated in the brake caliper.
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Wait 15 seconds, then repeat steps 10 and 11 until a firm brake pedal apply is obtained. This will properly seat the brake caliper pistons and brake pads.
- Fill the brake master cylinder reservoir to the proper level. Refer to Master Cylinder Reservoir Filling .
- Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing .
NOTE:
Do not allow the anti-seize lubricant to contact the disc brake pad friction surfaces.
