Installation Procedure

  1. Install the brake caliper to the steering knuckle.

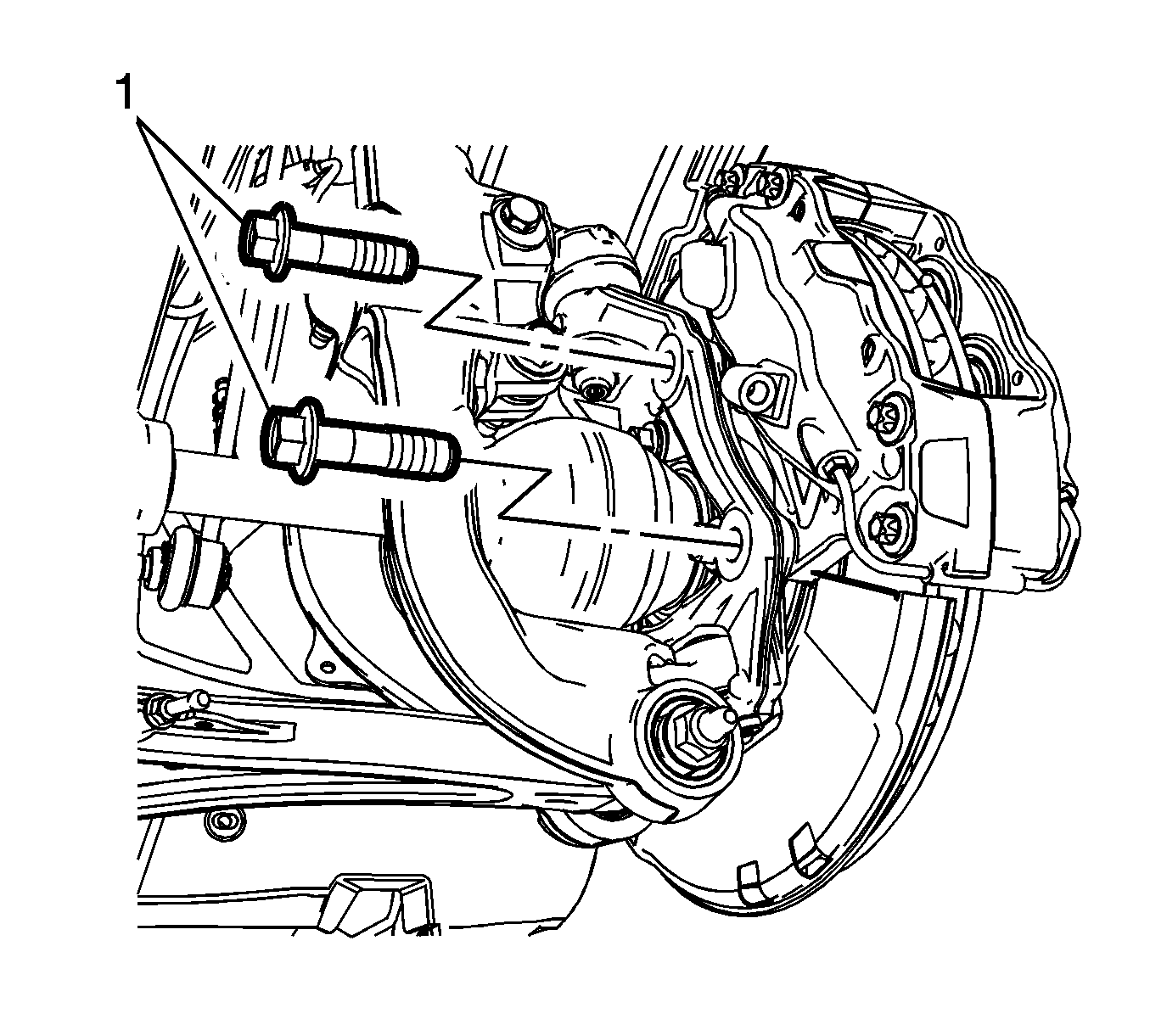

    2. Fig 1: Brake Caliper Bolts
    GM2713394Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    The brake bolts must be replaced any time they are removed.

  2. Install 2 new brake caliper bolts (1) and tighten to 40 N.m (30 lb ft) + 90 degrees.

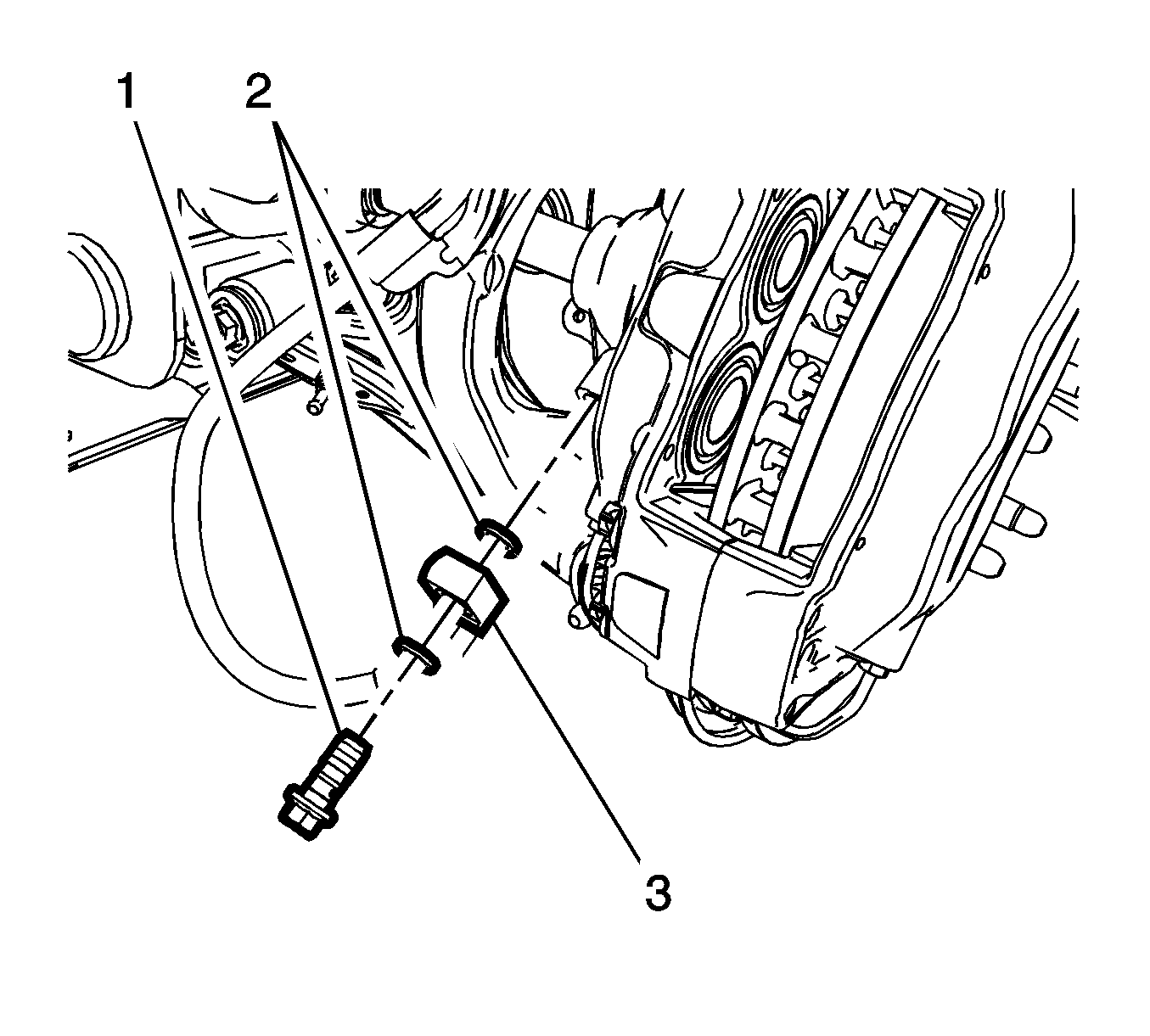

    3. Fig 2: Brake Hose Fitting Bolt
    GM2713393Courtesy of GENERAL MOTORS COMPANY
  3. Assemble the brake hose fitting bolt (1) and the 2 new brake hose fitting gaskets (2) to the brake hose (3).
  4. Install the brake hose assembly to the brake caliper and tighten the brake hose fitting bolt to 40 N.m (30 lb ft).
  5. Install the front disc brake pads. Refer to Front Disc Brake Pads Replacement (J64) .
  6. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual Bleeding) or Hydraulic Brake System Bleeding (Pressure) .
