Rear Side Door Window Switch Replacement

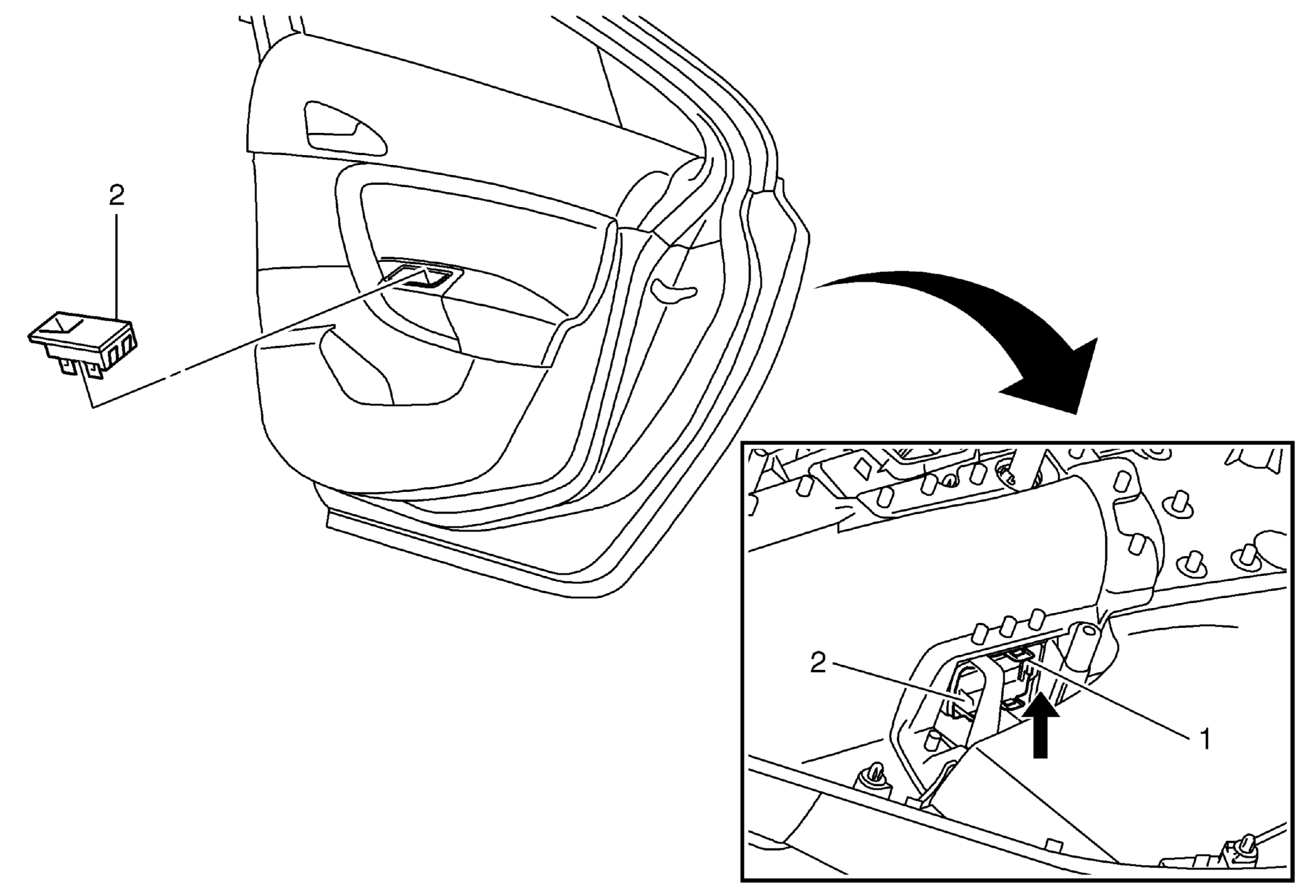

Fig 1: Rear Side Door Window Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Rear Side Door Switch Retainer TIP:  Use a small flat-bladed tool to release the retainer from the rear side door switch.
2	Rear Side Door Switch Procedure  Disconnect the electrical connector.
