Rear Side Door Window Inner Sealing Strip Replacement

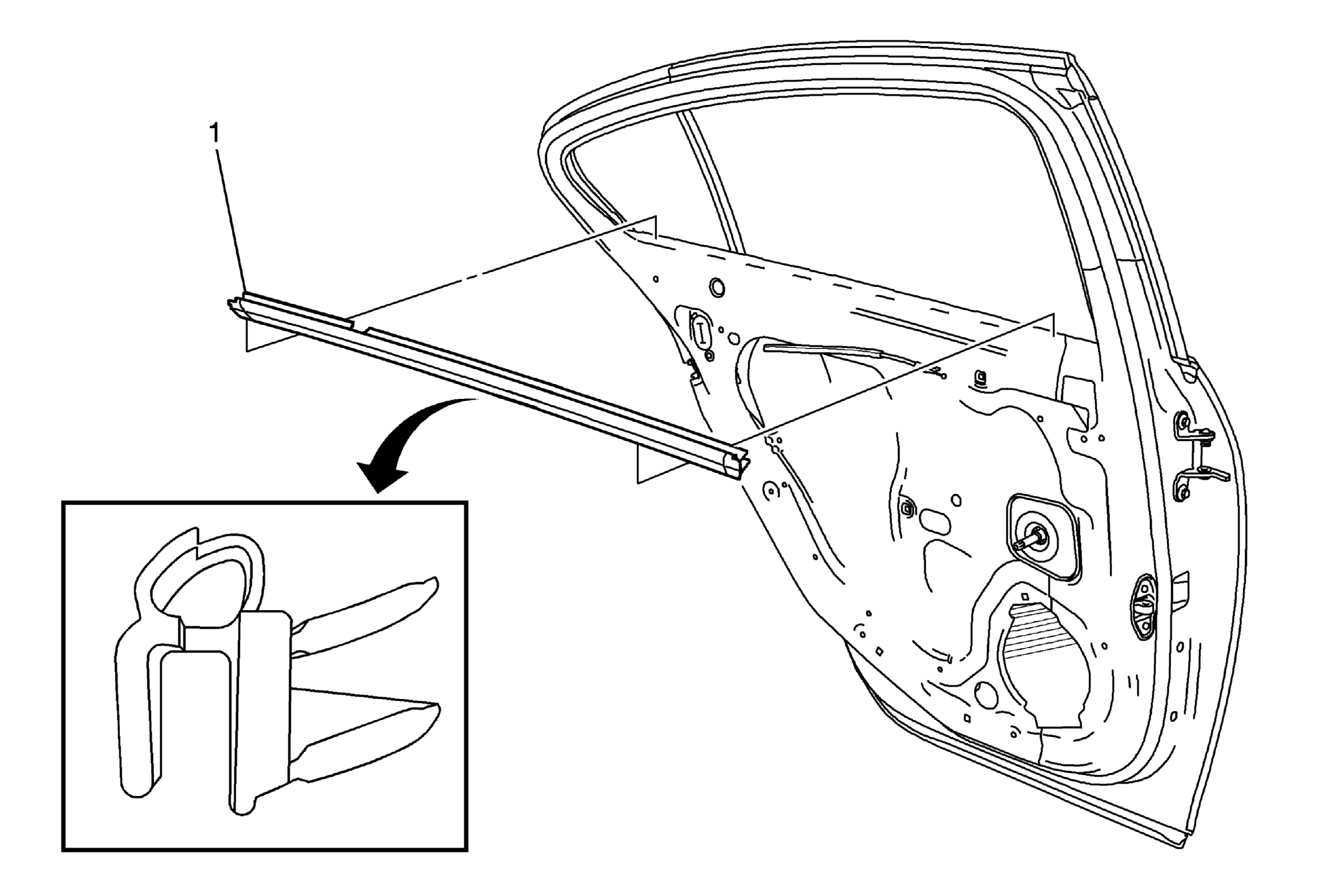

Fig 1: Rear Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Rear Side Door Window Inner Strip Procedures Lift the rear side door window inner strip off the pinch-weld flange. Press firmly to insert the rear side door window inner strip back on the door flange. TIP: Inspect the window for proper operation.

Callout

Component Name

Preliminary Procedures
Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .

Rear Side Door Window Inner Strip

Procedures

Lift the rear side door window inner strip off the pinch-weld flange.
Press firmly to insert the rear side door window inner strip back on the door flange.

TIP: Inspect the window for proper operation.
