Front Side Door Window Regulator Motor Replacement

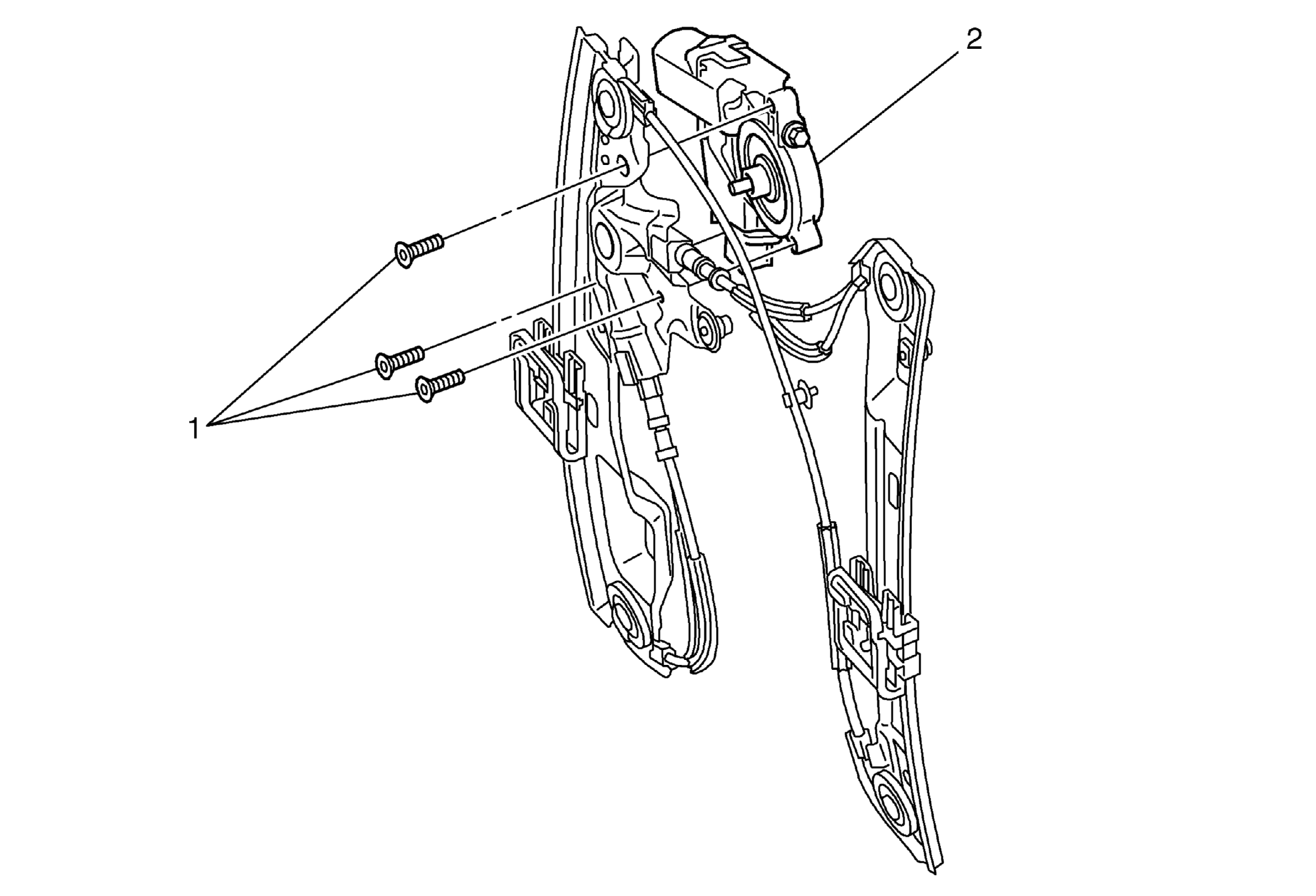

Fig 1: Front Side Door Window Regulator Motor & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement .
1	Front Side Door Window Regulator Motor Fasteners (Qty:3) CAUTION: Refer to Fastener Caution . Tighten  10 (89 lb in)
2	Front Side Door Window Regulator Motor Procedure  Inspect the door window for proper operation before installing the door trim panel.
