Driver, Passenger and Rear Express Up and Express Down Smart Window Motors

The driver and passenger, left rear and right rear doors contain smart motors that will detect excessive resistance while performing the express up function and automatically reverse direction to prevent injury to any occupants that may become trapped between the closing window and the door frame. The automatic reverse safety feature can be overridden by pulling and holding the window switch.

The logic circuit within the window motors monitor the up, down and express signal circuits which are normally equal to B+ voltage. When a switch is used on the driver, passenger, left rear or right rear window switch, the contacts close causing a voltage drop within the appropriate signal circuit. The window motor will detect the voltage drop and will command the window to move in the direction requested.

Each window motor communicates to the body control module (BCM) by a serial data circuit. When the driver wishes to control the passenger, left rear or right rear window, the driver will use the appropriate switch on the driver window switch. When this switch is used, a serial data message is sent to the BCM requesting a window motor command, the BCM will then send a serial data message to the appropriate window motor which will then move in the direction requested.

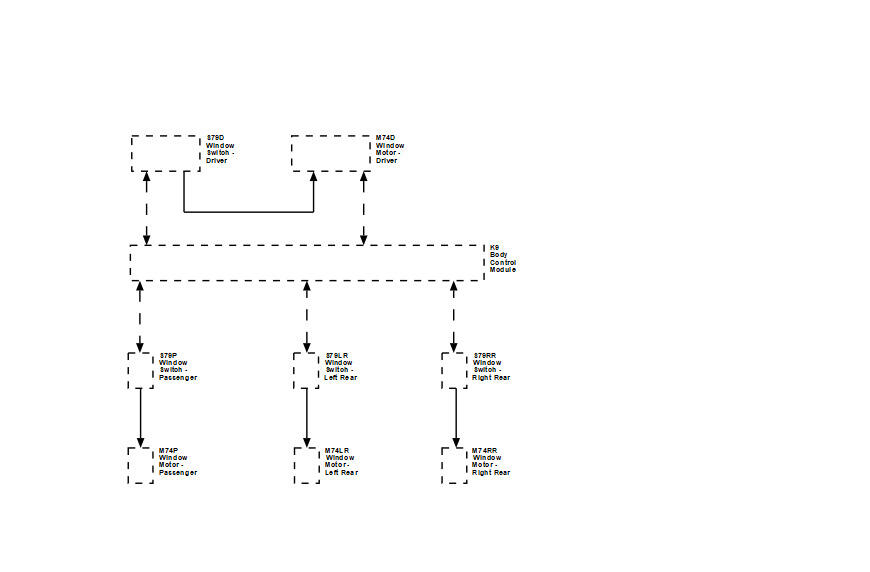

Fig 1: Driver, Passenger and Rear Express Up and Express Down Smart Window Motors Block Diagram

Courtesy of GENERAL MOTORS COMPANY
