Installation Procedure

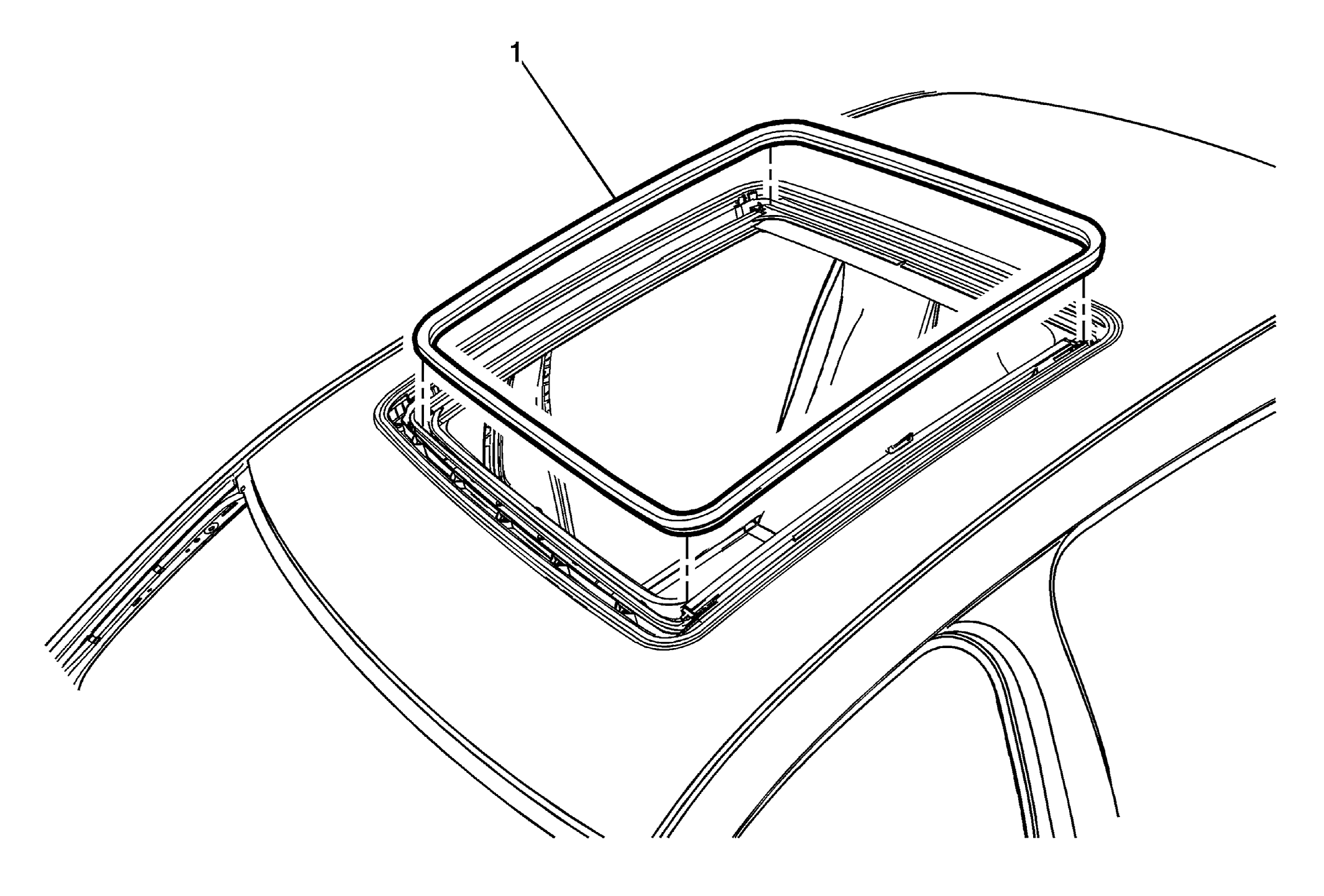

    Fig 1: Sunroof Window Seal - Inner
    GM2908948Courtesy of GENERAL MOTORS COMPANY
  1. Install the seal (1) to the sunroof housing track.
  2. Using a suitable tool, seat the weatherstrip on the inner edge of the sunroof.
  3. Install the front sunroof window. Refer to Sunroof Window Replacement - Front , and rear sunroof window Sunroof Window Replacement - Rear .
  4. Water test to verify no leaks.
