Installation Procedure

Align the side window brackets with the holes on left and right side of the frame.

CAUTION:

Refer to Fastener Caution .

Install the rear sunroof window screws (1), two on left and right side, tighten to 4 N.m (35 lb in).

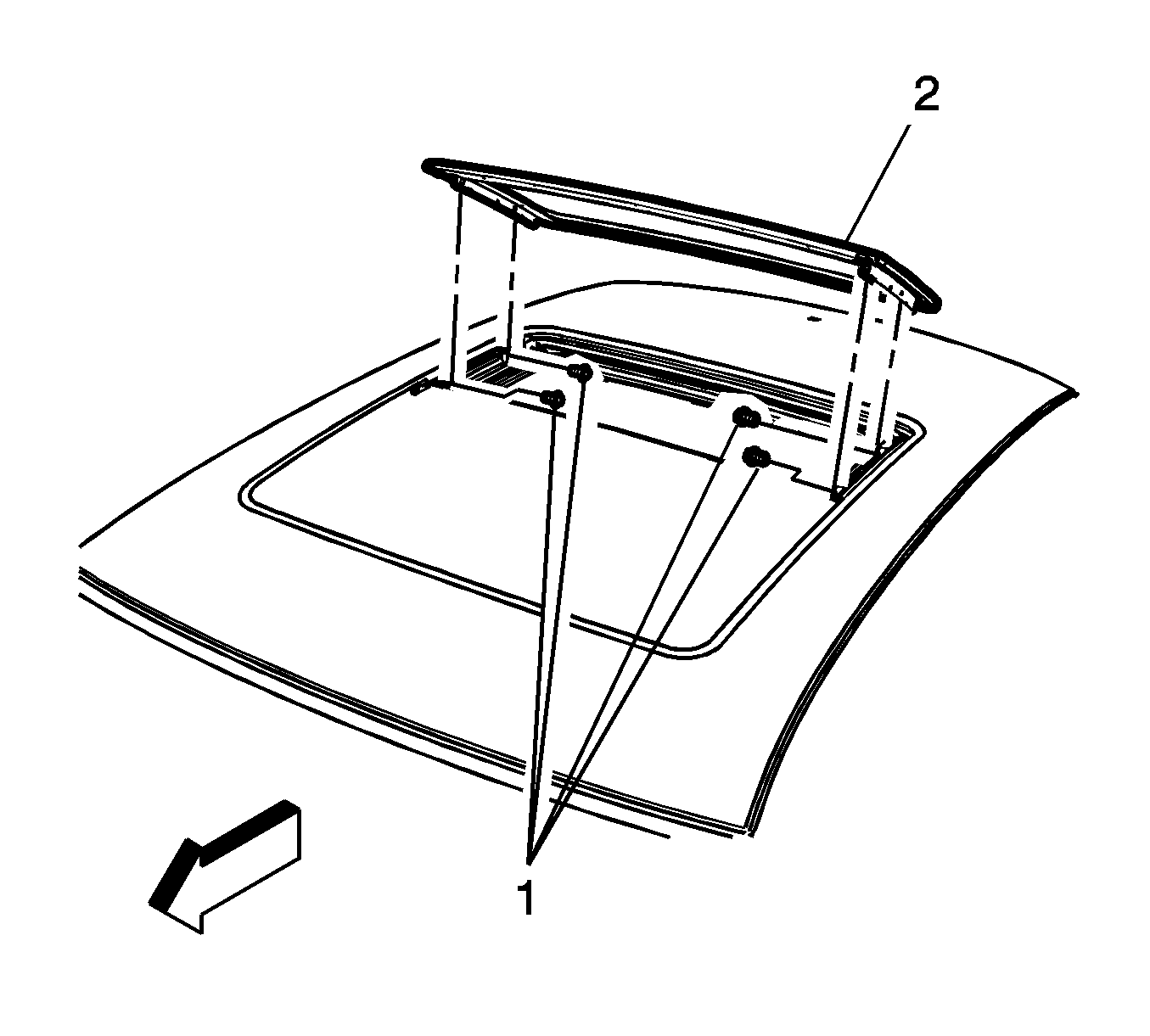

Fig 1: Sunroof Window & Screws - Rear

GM2909723

Courtesy of GENERAL MOTORS COMPANY

Close the sunroof.
Inspect the gap between the window and roof. Refer to Sunroof Window Height and Opening Fit Adjustment .
Close the sunroof.
Inspect sunroof for proper operation and water test to ensure no leaks.
