Sunroof Window Front Seal Replacement - Front Window Rear

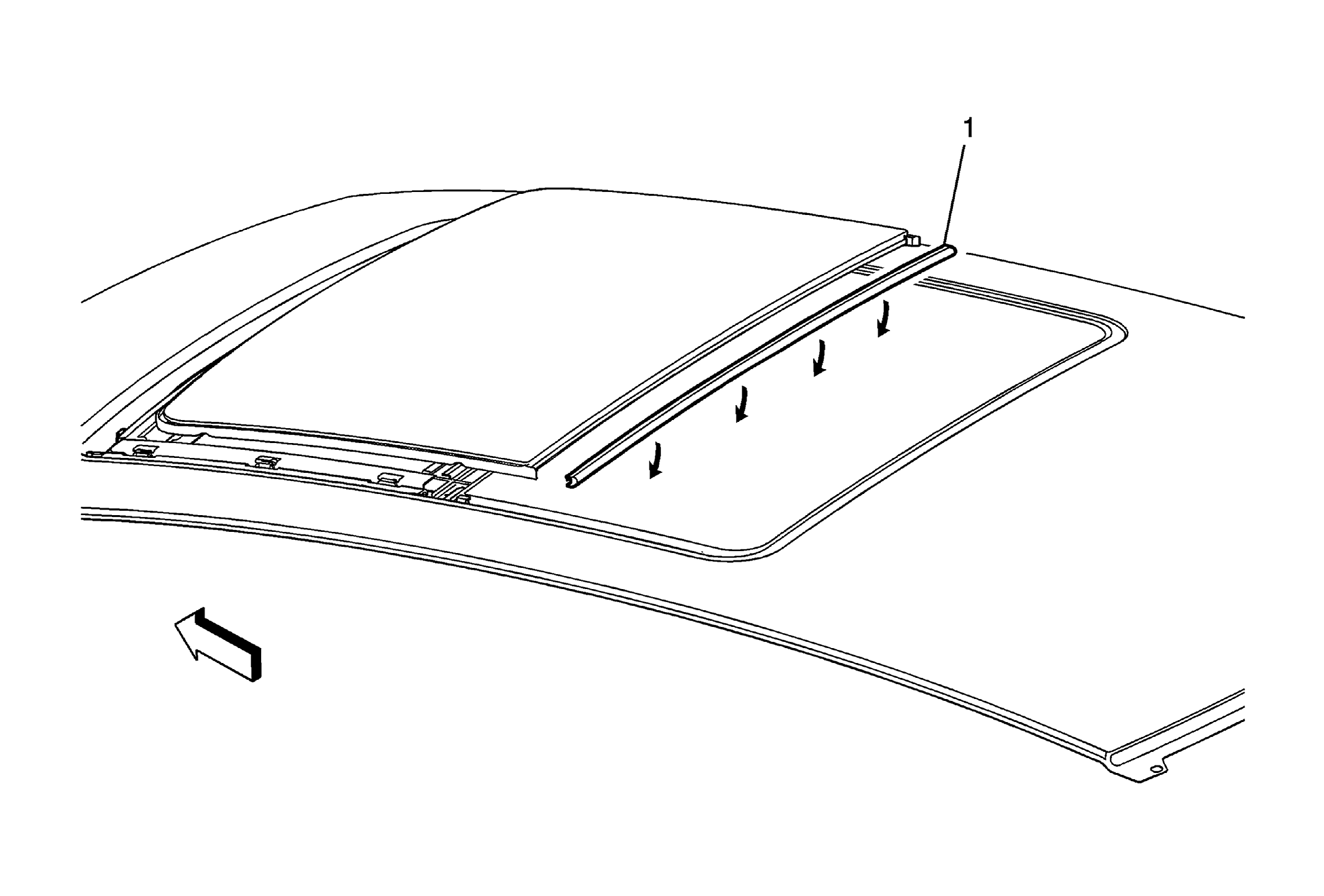

Fig 1: Sunroof Window Front Seal - Front Window Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedures Remove the sunroof window front. Refer to Sunroof Window Replacement - Front .
1	Sunroof Window Front Seal Rear Procedures Before removing the sunroof window, apply a double layer of masking tape around the perimeter of the painted surfaces. Remove the sunroof window weatherstrip by grasping the edge, pull downward to release it from the retainer. Clean around the inside surface of the window weatherstrip retainer with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth. Position the sunroof window front seal rear in the center of the window retainer working outward the entire length. Ensure the window height. Refer to Sunroof Window Height and Opening Fit Adjustment . Inspect sunroof for proper operation and water test to ensure no leaks.

Callout

Component Name

WARNING:

Preliminary Procedures Remove the sunroof window front. Refer to Sunroof Window Replacement - Front .

Sunroof Window Front Seal Rear

Procedures

Before removing the sunroof window, apply a double layer of masking tape around the perimeter of the painted surfaces.
Remove the sunroof window weatherstrip by grasping the edge, pull downward to release it from the retainer.
Clean around the inside surface of the window weatherstrip retainer with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
Position the sunroof window front seal rear in the center of the window retainer working outward the entire length.
Ensure the window height. Refer to Sunroof Window Height and Opening Fit Adjustment .
Inspect sunroof for proper operation and water test to ensure no leaks.
