Sunroof Sunshade Replacement

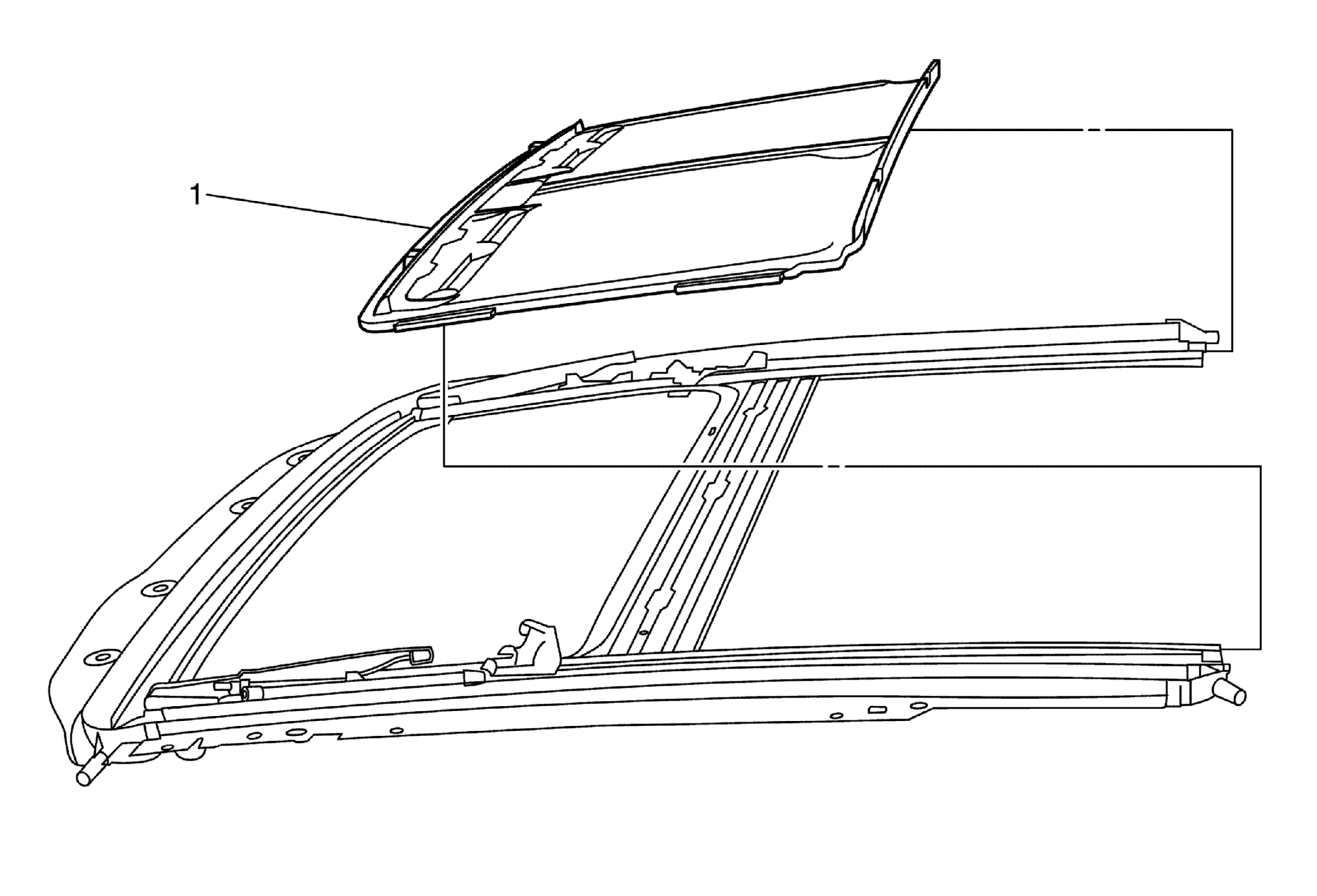

Fig 1: Sunroof Sunshade
GM2019839Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front sunroof window. Refer to Sunroof Window Replacement - Front .
  2. Remove the sunroof housing assembly. Refer to Sunroof Housing Replacement .
1 Sunroof Sunshade

Procedure

  1. Remove the 2 rear sunroof housing assembly brackets.
  2. Move the sunroof sunshade rearward out of the sliding rail.
