Sunroof Housing Drain Gutter Replacement

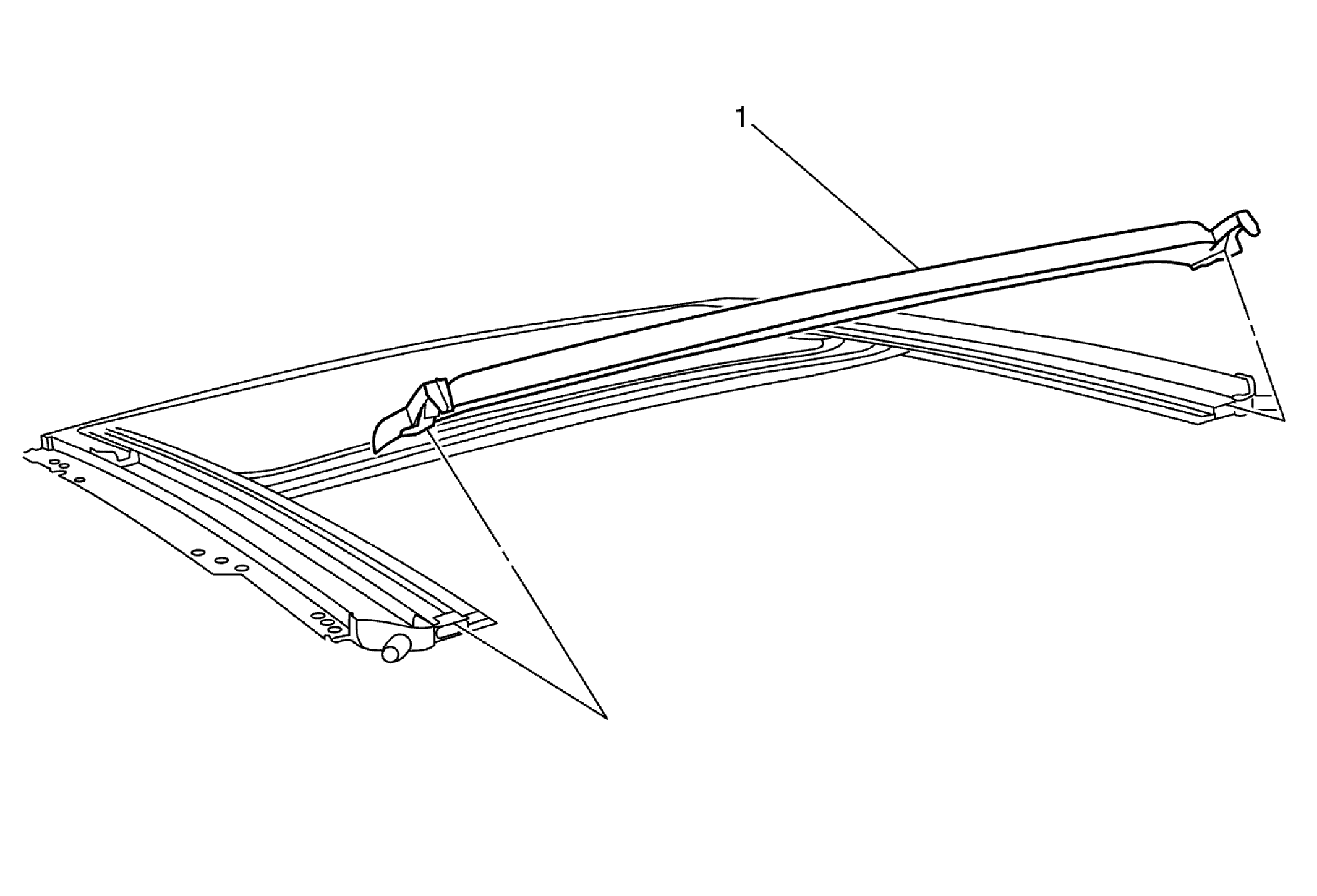

Fig 1: Sunroof Housing Drain Gutter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove sunroof housing assembly. Refer to Sunroof Housing Replacement .
1	Sunroof Housing Drain Gutter Procedure Do not remove the motor or sunshades. Remove clips from the sunroof housing drain gutter bracket on the left and right side. Verify sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .

Callout

Component Name

Preliminary Procedure
Remove sunroof housing assembly. Refer to Sunroof Housing Replacement .

Sunroof Housing Drain Gutter

Procedure

Do not remove the motor or sunshades.
Remove clips from the sunroof housing drain gutter bracket on the left and right side.
Verify sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .
